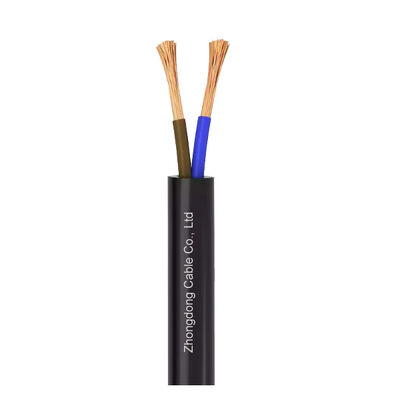

LSZH Fireproof Multi-Core Electric Cable Wire XLPE Shielded PVC Insulated Power Cable

Basic Information

Place of Origin:	Hebei，China
Brand Name:	Low Smoke Zero Halogen Cable
Certification:	IEC,CE,ISO,TUV
Model Number:	N2xh N2xh-J N2xh-O

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Rolls, Wooden Drums, Steel Drums, Reels or customized
Delivery Time:	7-30 days based on different qty
Payment Terms:	,L/C,T/T
Supply Ability:	100KM/Week

Get Best Price Contact Now

Detail Information

Voltage:	0.6/1kV	Insulation:	XLPE
Jacket:	Lszh	Feature:	LSZH
No Of Cores:	1,2,3,4,5	Standards:	VDE 0276 Part 604, VDE 0482-266-2, DIN EN 60332-3 / EN50266-2

Product Description

LSZH Fireproof Multi-Core Electric Cable Wire XLPE Shielded PVC Insulated Power Cable

APPLICATION

The cable is commonly used in environments that require high safety standards, especially in situations where fire hazards need to be minimized, and the cable must ensure reliable power transmission.

CONSTRUCTION

Conductor: The first or second type of copper conductor

Insulation:XLPE

Sheath: LSZH

LSZH Fireproof Multi-Core Electric Cable Wire XLPE Shielded PVC Insulated Power Cable 0

STANDARD

VDE 0276 part 604, VDE 0482-266-2, DIN EN 60332-3 / EN50266-2

ADVANTAGE

Halogen-free: Prevents acidic gas formation

Low smoke: Maintains visibility in emergencies

Eco-friendly: Meets RoHS/WEEE standards

LSZH cables prioritize life safety over cost, making them ideal for confined or high-occupancy

SPECIFICATION

Dimensions - Number of cores x cross-section	Construction of the individual keep the handlers safe	The outer diameter	thickness of insulation	shell thickness	Resistance to keep the handlers safe at 20 ° C	weight of cable
	rated	about	rated	rated	max.	about
N x mm²	n x mm	mm	mm	mm	Ω/km	kg/km
1 x 1,5	1 x 1,38	5,4	1,38	0,15	12,10	43
1 x 4	1 x 2,25	6,4	2,25	0,20	4,61	75
1 x 16	7 x 1,70	9,1	5,00	0,36	1,15	202
1 x 25	7 x 2,13	11	6,10	0,48	0,727	302
1 x 70	19 x 2,17	15	10,10	0,84	0,268	745
1 x 95	19 x 2,52	17	11,90	0,97	0,193	986
1 x 185	37 x 2,52	23	16,20	1,72	0,0991	1888
1 x 300	61 x 2,50	28	20,60	2,34	0,0601	2945

2 x 1,5	1 x 1,38	9	1,38	0,38	12,10	120
2 x 2,5	1 x 1,78	10	1,78	0,45	7,41	154
2 x 16	7 x 1,70	16	5,00	1,06	1,15	563
2 x 25	7 x 2,13	20	6,10	1,52	0,727	840
2 x 35	7 x 2,52	22	7,20	1,79	0,524	1106
2 x 120	37 x 2,03	36	13,00	4,23	0,153	3343
2 x 300	61 x 2,50	55	20,60	9,39	0,0601	8072

3 x 1,5	1 x 1,38	9	1,38	0,44	12,10	135
3 x 2,5	1 x 1,78	10	1,78	0,51	7,41	181
3 x 4	1 x 2,25	11	2,25	0,60	4,61	242
3 x 10	1 x 3,56	14	3,57	0,83	1,83	464
3 x 16	7 x 1,70	17	5,00	1,22	1,15	697
N2XH
3 x 35	7 x 2,52	23	7,20	2,08	0,524	1393
3 x 50	19 x 1,83	26	8,30	2,56	0,387	1847
3 x 70	19 x 2,17	31	10,10	3,43	0,268	2666
3 x 95	19 x 2,52	36	11,90	4,17	0,193	3535
3 x 120	37 x 2,03	38	13,00	4,74	0,153	4322
3 x 185	37 x 2,52	48	16,20	7,40	0,0991	6742
3 x 300	61 x 2,50	59	20,60	10,79	0,0601	10522

4 x 1,5	1 x 1,38	10	1,38	0,52	12,10	163
4 x 2,5	1 x 1,78	11	1,78	0,60	7,41	214
4 x 10	1 x 3,56	16	3,57	1,03	1,83	586
4 x 16	7 x 1,70	19	5,00	1,50	1,15	874
4 x 35	7 x 2,52	26	7,20	2,57	0,524	1777
4 x 50	19 x 1,83	29	8,30	3,15	0,387	2343
4 x 120	37 x 2,03	43	13,00	5,98	0,153	5558
4 x 185	37 x 2,52	53	16,20	9,35	0,0991	8657
4 x 240	61 x 2,24	60	18,80	11,54	0,0754	11385
4 x 300	61 x 2,50	65	20,60	13,44	0,0601	13539
N2XH
5 x 1,5	1 x 1,38	11	1,38	0,62	12,10	193
5 x 4	1 x 2,25	13	2,25	0,85	4,61	352
5 x 6	1 x 2,76	15	2,76	0,99	3,08	475
5 x 16	7 x 1,70	21	5,00	1,87	1,15	1081
5 x 25	7 x 2,13	26	6,10	2,61	0,727	1631
5 x 50	19 x 1,83	33	8,30	3,89	0,387	2915

WAREHOUSE

LSZH Fireproof Multi-Core Electric Cable Wire XLPE Shielded PVC Insulated Power Cable 1

APPLICATION

LSZH Fireproof Multi-Core Electric Cable Wire XLPE Shielded PVC Insulated Power Cable 2

LSZH Fireproof Multi-Core Electric Cable Wire XLPE Shielded PVC Insulated Power Cable 4

FAQ

1.Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.Welcome to visit us. we'll pick you up in Nanning and ensure the quality of the product.

2.How can l get a sample to test your quality?
1.lf we do have inventory and sample quantity is small, it's free.
2.lf we do not have inventory or large quantity is required. you need to pay the prolfreight cost.

3.What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.You'd better order a suitable quantity to avoid the high freight.Sea
transportation is the best option.

4.Do you Support Customized Product Specification?
Yes, Simply offer your products specification, A Drawing or Diagram will be helpful.

5.Does your company accept OEM production?
Yes, could print your company name.
