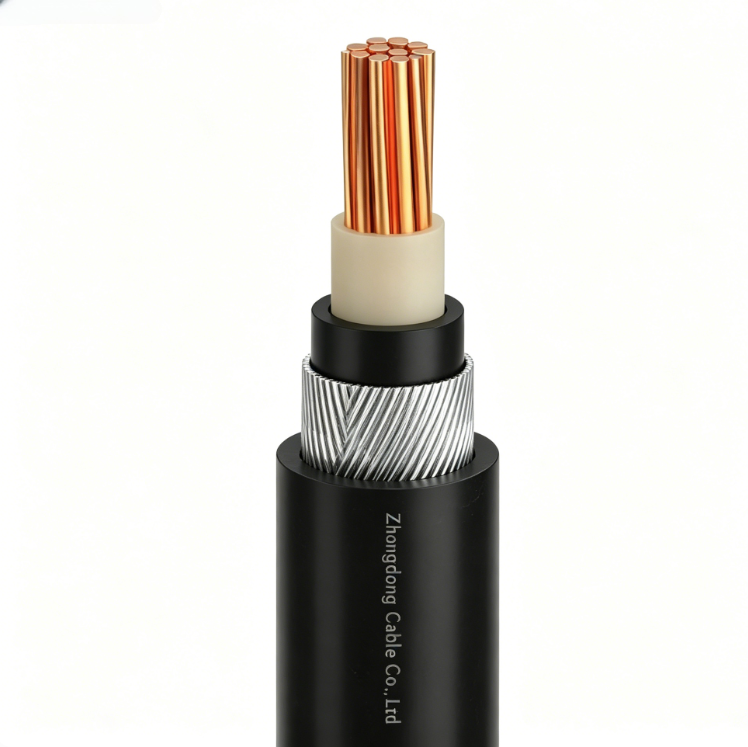

0.6/1kV LSZH Power Cable CU/XLPE/AWA/LSZH | IEC 61034-2 Certified Low Smoke Emission

• Manufactured from high-purity, plain annealed copper for maximum electrical conductivity.
• Class 2 stranded construction provides flexibility for installation while maintaining excellent current carrying capacity.
• Fully compliant with IEC 60228.

• Cross-linked thermosetting insulation that allows continuous operation at 90°C (compared to 70°C for PVC).
• Excellent dielectric strength and low power loss over long cable runs.
• Resistant to deformation under high short-circuit temperatures (up to 250°C for 5 seconds).
• Compliant with IEC 60502-1.

• Applied directly over the insulated cores to provide a smooth, uniform bedding layer.
• Creates a stable foundation for the application of the wire armour.
• Maintains LSZH integrity throughout the cable construction – no hidden PVC components.

• Helically applied aluminum wires wound tightly around the inner sheath.
• Provides robust mechanical protection against impact, crushing, and rodent attack.
• Non-magnetic properties eliminate eddy current losses – particularly critical for single-core 0.6/1kV cables where steel armour would overheat.
• Approximately 40% lighter than equivalent steel wire armour (SWA), reducing transport and installation costs.
• Excellent inherent corrosion resistance for humid and industrial environments.

• The final fire-safety layer, formulated to emit minimal smoke and zero halogen gases when exposed to fire.
• Tested to IEC 61034-2 for smoke density (minimum 60% light transmittance).
• Tested to IEC 60754-1/2 for halogen content (<0.5%) and gas corrosivity (pH > 4.3).
• UV-stabilized for outdoor exposure and resistant to oils and industrial contaminants.
• Available in black as standard; custom colours on request.

Comprehensive Fire Performance Certification

Our 0.6/1kV LSZH cable is manufactured under strict quality management and verified by third-party testing laboratories.
