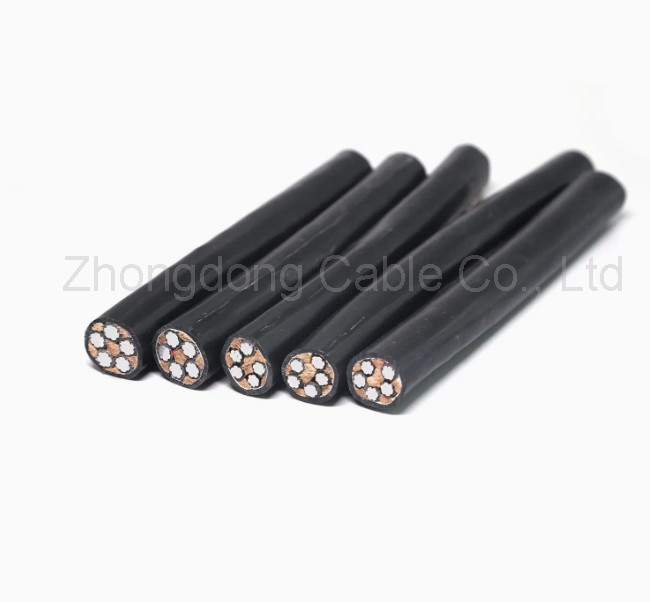

0.6Kv 1kv XLPE Aluminum Alloy ABC Power Cable Underground Armored Or Unarmored Cable
| Application: | Overhead Distribution Line | Cores Nos: | 1,2,3,4 More Multicore |
| Rated Voltage: | 0.6/1 KV | Installation Degree: | -20℃-90℃ |
| Neutral Messengers: | AAC, AAAC Or ACSR | Insulation: | XLPE/PE/PVC |
| High Light: | Aluminum Alloy ABC Power Cable,0.6Kv ABC Underground Armored Cable |
||
Overhead ABC Cable 0.6/1kv XLPE Aluminum Alloy Power Cable Underground Armored/Unarmored Cable
Applicatiom
Widely used in the energy field (power stations, nuclear power posts, urban and rural power grids, coal mines, petrochemicals, etc.), transportation field (civil aviation, nuclear power plant) network, coal mine, petrochemicals, etc.), transportation field (civil aviation airports, railroads and urban rail transportation, ships and transportation field (civil aviation, airport, railway and urban railway transportation, ships and ports, etc.), engineering field (engineering construction, steel, metallurgy, construction, etc.) Iron, metallurgy, construction, etc.) of key projects.
Construction
- Phase Conductor: Class 2 Circular compacted stranded aluminum
- Conductor Screen: Extruded semi-conductive layer
- Insulation: XLPE (Cross-linked polyethylene)
- Insulation Screen: Extruded semi-conductive layer
- Metallic Screen: Copper wire screen or copper tape screen
- Separator: Semi-conductive swellable tape
- Outer Sheath: HDPE (High Density polyethylene)
Characteristics
- 0.6/1kV
- Operating Temperature: 90°C XLPE
- Temperature Range: -20°C PE sheath
- Short Circuit Temperature( 5 seconds maximum duration ): 250°C XLPE
- Bending Radius: 15 x overall diameter
Specification
| ominal Cross Section | Minimum Breaking Load | current Rating in Air | Nominal Over all Diameter | Total Weight | Outer Diameter |
| mm2 | Kn | A | mm | kg/km | mm |
| 2×16RM | 1.910 | 2.5 | 72 | 147 | 15.6 |
| 2×25RM | 1.200 | 4.0 | 107 | 208 | 18 |
| 2×35RM | 0.868 | 5.5 | 132 | 277 | 20 |
| 2×50RM | 0.641 | 8.0 | 165 | 361 | 23.5 |
| 4×16RM | 1.910 | 2.5 | 72 | 286 | 18.8 |
| 4×25RM | 1.200 | 4.0 | 107 | 430 | 21.2 |
| 4×35RM | 0.868 | 5.5 | 132 | 553 | 24.1 |
| 4×50RM | 0.641 | 8.0 | 165 | 746 | 27.8 |
| 4×70RM | 0.443 | 10.7 | 205 | 1.009 | 31.8 |
| 4×95RM | 0.320 | 13.7 | 240 | 1.332 | 37.8 |
| 4×120RM | 0.253 | 18.6 | 290 | 1.632 | 54.4 |
| 4×35+1×35RM | 0.868/0.868 | 5.5/5.5 | 132/132 | 694 | 30 |
| 4×50+1×25RM | 0.641/1.200 | 8.0/4.0 | 165/107 | 814 | 31.9 |
| 4×50+1×35RM | 0.641/0.868 | 8.5/5.5 | 165/132 | 845 | 31.9 |
| 4×70+1×25RM | 0.443/1.200 | 10.7/4.0 | 205/107 | 1.105 | 36 |
| 4×70+2×25RM | 0.443/1.200 | 10.7/4.0 | 205/107 | 1.217 | 40 |
| 4×70+1×35RM | 0.443/0.868 | 10.7/5.5 | 205/132 | 1.15 | 36.2 |
-
