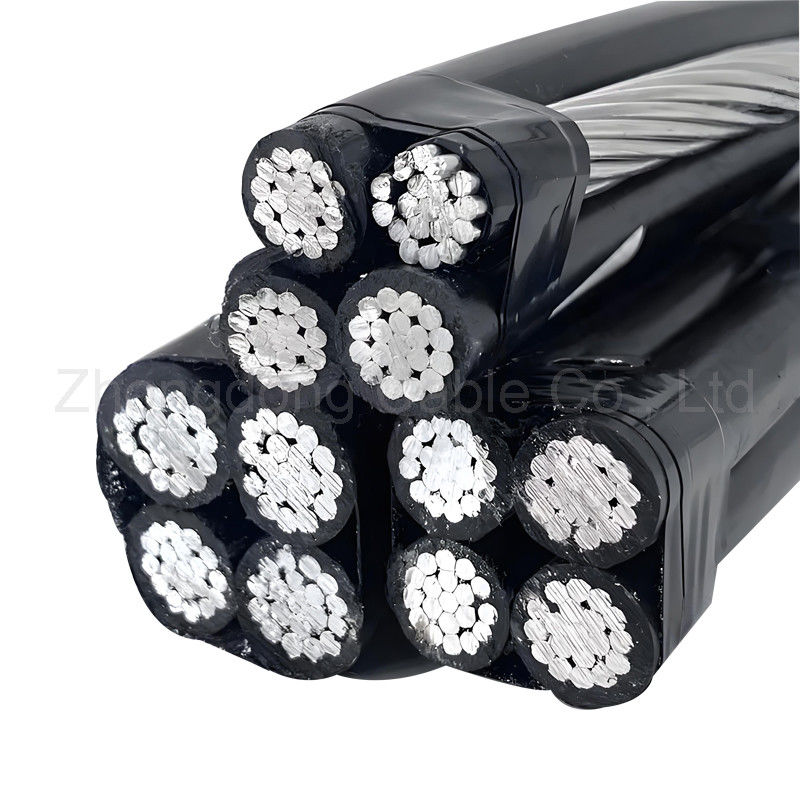

15kV 35kV ACSR Conductor ABC Aerial Bundled Cable Medium Voltage Overhead Cable
| Application: | Overhead Distribution Line | Cores Nos: | 1,2,3,4 More Multicore |
| Rated Voltage: | 15/35kV | Installation Degree: | -20℃-90℃ |
| Neutral Messengers: | AAC, AAAC Or ACSR | Insulation: | PE/PVC |
| High Light: | ACSR Conductor Aerial Bundled Cable,Medium Voltage Aerial Bundled Cable,35kV ACSR Conductor Overhead Cable |
||
15kV 35kV ACSR Conductor ABC Aerial Bundled Cable Medium Voltage Overhead Cable
APPLICATION
- 1 phase:to supply 120 volt aerial service for temporary service at construction sites, outdoor or street lighting. For service at 1000 volts or lower at a conductor temperature of 75℃ maximum.
- 2 phase: to supply power from the utility’s lines to the consumer’s weatherhead. For service at 1000 volts or less (phase to phase) at a conductor temperature of 75℃ maximum for polyethylene Insulation or 90℃ maximum for cross linked insulation.
- 3 phase: usually from a pole-mounted transformer, to the user’s service head where connection to the service entrance cable is made. To be used at voltages of 1000 volts or less phase to phase and at conductor temperatures not to exceed 75℃ for polyethylene insulated conductors or 90℃ for cross linked polyethylene (XLPE) insulated conductors.
CONSTRUCTION
All aluminium conductor, polyethylene or cross linked polyeth- ylene insulation, concentric strand AAC, ACSR, or 6201 alloy neu- tral messenger.
SPECIFICATION
|
Description |
Phase conductor |
Bare |
Approx.Overall |
|||
|
NO of Standing& |
XLPE |
NO of Stranding& |
Diameter |
Weight |
||
|
AL |
Steel |
|||||
|
1×10mm²+10mm² |
7 /1.35 |
1.0 |
6/1.35 |
1/1.35 |
10.30 |
858 |
|
1×16mm²+16mm² |
7/1.70 |
1.2 |
6/1.70 |
1/1.70 |
12.84 |
133.7 |
|
1×25mm²+25mm² |
7/2.22 |
1.2 |
62.22 |
12.22 |
15.04 |
215.8 |
|
1×35mm²+35mm² |
7/2.59 |
1.4 |
62.59 |
12.59 |
17.8B |
294.0 |
|
1×50mm²+50mm² |
7/3.10 |
1.4 |
63.10 |
13.10 |
19.68 |
410.2 |
|
1×70mm²+50mm² |
19/2.22 |
1.4 |
6/3.10 |
1/3.10 |
21.38 |
574.3 |
|
1×95mm²+50mm² |
19/2.59 |
1.4 |
6/3.10 |
13.10 |
22.98 |
704.5 |
|
2×10mm²+10mm² |
7/1.35 |
1.0 |
6/1.35 |
1/1.35 |
12.30 |
120.7 |
|
2×16mm²+16mm² |
7 /1.70 |
1.2 |
6/1.70 |
1/1.70 |
15.24 |
133.7 |
|
2×25mm²+25mm² |
7/2.22 |
12 |
6/2.22 |
172.22 |
17.44 |
310.2 |
|
2×35mm²+35mm² |
7/ 2.59 |
1.4 |
6/2.59 |
172.59 |
20.28 |
422.5 |
|
2×50mm²+50mm² |
7/3.10 |
1.4 |
6/3.10 |
1/3.10 |
22.48 |
594.2 |
|
2×70mm²+50mm² |
19/2.22 |
1.4 |
6/3.10 |
1/3.10 |
25.88 |
964.5 |
|
2×95mm²+50mm² |
19/2.59 |
1.4 |
6/3.10 |
1/3.10 |
2908 |
1224.9 |
|
3×10mm²+10mm² |
7/1.35 |
1.0 |
6/1.35 |
1/1.35 |
14.76 |
187.6 |
|
3×16mm²+16mm² |
7/1.70 |
1.2 |
6/1.70 |
1/1.70 |
18.28 |
290.4 |
|
3×25mm²+25mm² |
7/2.22 |
1.2 |
62.22 |
12.22 |
20.92 |
458.6 |
|
3×35mm²+35mm² |
7/2.59 |
1.4 |
62.59 |
12.59 |
24.33 |
625.0 |
|
3×50mm²+50mm² |
7/3.10 |
1.4 |
63.10 |
1/3.10 |
26.97 |
862.3 |
|
3×70mm²+50mm² |
19/2.22 |
1.4 |
6/3.10 |
1/3.10 |
31.05 |
1354.7 |
|
3×95mm²+50mm² |
19/2.59 |
1.4 |
6/3.10 |
1/3.10 |
34.89 |
1745.3 |
ABOUT US
WHY CHOOSE US
PROJECTS
PACKAGE
PARTNER
FAQ
Q.What is ACSR ABC Cable?
A. A hybrid overhead cable combining ACSR (Aluminum Conductor Steel Reinforced) core with ABC (Aerial Bundled Cable) insulation, designed for low-voltage (0.6/1kV) distribution with enhanced mechanical strength
Q.Key advantages over standard ABC cables?
A. 60% higher span capacity (up to 300m spans), 30% reduced sag under load, Maintains ABC's safety with full insulation
Q. Typical applications?
A. River/valley crossings in rural electrification, Temporary power for construction sites, Urban areas requiring compact line layouts
Q.Temperature rating?
A. Operates at -40°C to 90°C (95°C short-circuit tolerance), matching ACSR thermal properties
Q.Maintenance requirements?
A. Annual checks for: Corrosion at steel-aluminum interfaces, Insulation cracks (especially at suspension points), Neutral conductor integrity
Q. Cost comparison vs traditional options?
A. 20% cheaper than separate ACSR+ABC systems
40% lower lifetime cost than bare ACSR (reduced maintenance)
-
Ca new design cable for our projects, good quality
-
Tperfect
