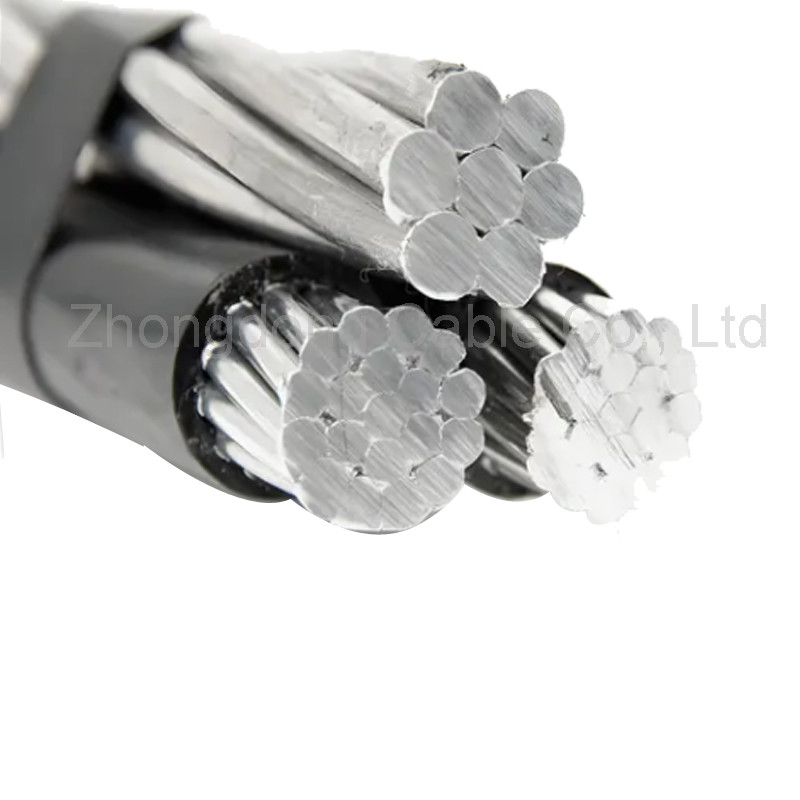

Low Voltage Aerial Bundled ABC Cable AAC AAAC ACSR 4mm2-630mm2 600V 1000V
| Application: | Overhead Distribution Line | Cores Nos: | 1,2,3,4 More Multicore |
| Rated Voltage: | 0.6/1 KV | Installation Degree: | -20℃-90℃ |
| Neutral Messengers: | AAC, AAAC Or ACSR | Insulation: | XLPE/PE/PVC |
| High Light: | 1000V Aerial Bundled ABC Cable,600V Aerial Bundled ABC Cable,Low Voltage Aerial Bundled ABC Cable |
||
Low Voltage Aerial Bundled Cable AAC ABC AAAC ACSR 4mm2-630mm2 0.6/1kv Al/XLPE/PVC
Application:
- Industrial Power Distribution: Factories, mining operations.
- Renewable Energy Systems: Solar farms, wind turbines.
- Public Infrastructure: Subways, tunnels (where low smoke and halogen-free properties are critical).
- Buildings: Commercial complexes requiring fire-safe cabling.
Construction
Advantages
- Cost Efficiency: Aluminum reduces material costs compared to copper.
- Safety: Halogen-free sheath minimizes toxic fumes during fires.
- Durability: XLPE insulation resists thermal aging and environmental stress.
Specification
| ominal Cross Section | Minimum Breaking Load | current Rating in Air | Nominal Over all Diameter | Total Weight | Outer Diameter |
| mm2 | Kn | A | mm | kg/km | mm |
| 2×16RM | 1.910 | 2.5 | 72 | 147 | 15.6 |
| 2×25RM | 1.200 | 4.0 | 107 | 208 | 18 |
| 2×35RM | 0.868 | 5.5 | 132 | 277 | 20 |
| 2×50RM | 0.641 | 8.0 | 165 | 361 | 23.5 |
| 4×16RM | 1.910 | 2.5 | 72 | 286 | 18.8 |
| 4×25RM | 1.200 | 4.0 | 107 | 430 | 21.2 |
| 4×35RM | 0.868 | 5.5 | 132 | 553 | 24.1 |
| 4×50RM | 0.641 | 8.0 | 165 | 746 | 27.8 |
| 4×70RM | 0.443 | 10.7 | 205 | 1.009 | 31.8 |
| 4×95RM | 0.320 | 13.7 | 240 | 1.332 | 37.8 |
| 4×120RM | 0.253 | 18.6 | 290 | 1.632 | 54.4 |
| 4×35+1×35RM | 0.868/0.868 | 5.5/5.5 | 132/132 | 694 | 30 |
| 4×50+1×25RM | 0.641/1.200 | 8.0/4.0 | 165/107 | 814 | 31.9 |
| 4×50+1×35RM | 0.641/0.868 | 8.5/5.5 | 165/132 | 845 | 31.9 |
| 4×70+1×25RM | 0.443/1.200 | 10.7/4.0 | 205/107 | 1.105 | 36 |
| 4×70+2×25RM | 0.443/1.200 | 10.7/4.0 | 205/107 | 1.217 | 40 |
| 4×70+1×35RM | 0.443/0.868 | 10.7/5.5 | 205/132 | 1.15 | 36.2 |
-
