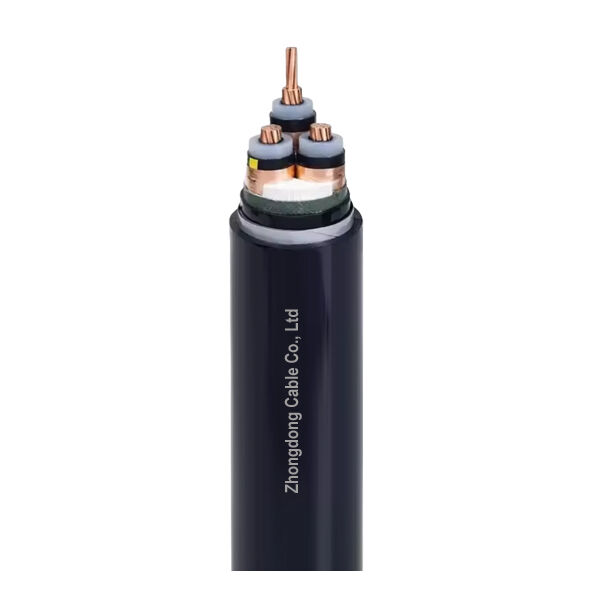

Steel Tape Armored Power Cable CU/XLPE/STA/PVC Medium Voltage for Industrial Railway Underground
| Insulation Material: | Xlpe | Conductor Material: | Copper |
| Sheath: | PVC | Cores: | 1 Core, 3 Cores |
| Armour: | Steel Tape Armoured | ||
| High Light: | Steel tape armored power cable,Medium voltage industrial power cable,Underground railway power cable |
||
Steel Tape Armored Power Cable CU/XLPE/STA/PVC Medium Voltage for Industrial Railway Underground
Applications
These cables are used for electricity supply in medium voltage installation system, they are suitable for installation in indoors and outdoors, in cable ducts, underground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.
Construction
Characteristics
Voltage Rating Uo/U: 12/20kV
Maximum operating temperature of conductor:+90℃
Operating ambient temperature: -15℃~+55℃
Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
Minimum Bending Radius: Single core:15D Multicire: 12D (D is the actual outer diameter of the cable)
Specification
|
Specs |
Conductor diameter |
Outer thickness of insulation |
Approx outer diameter of cable |
Approx cable weight |
|
Specs |
Conductor diameter |
Outer thickness of insulation |
Approx outer diameter of cable |
Approx cable weight |
|
1×35 |
6.6±0.2 |
20.0 |
27.2 |
1167 |
3×35 |
6.6±0.2 |
20.0 |
54.1 |
3935 |
|
|
1×50 |
7.6±0.2 |
21.0 |
28.2 |
1319 |
3×50 |
7.6±0.2 |
21.0 |
56.6 |
4480 |
|
|
1×70 |
9.2±0.2 |
22.6 |
30.0 |
1589 |
3×70 |
9.2±0.2 |
22.6 |
60.2 |
5336 |
|
|
1×95 |
10.9±0.2 |
24.3 |
31.7 |
1897 |
3×95 |
10.9±0.2 |
24.3 |
64.2 |
6387 |
|
|
1×120 |
12.2±0.2 |
25.6 |
33.2 |
2186 |
3×120 |
12.2±0.2 |
25.6 |
67.3 |
7326 |
|
|
1×150 |
13.6±0.2 |
27.0 |
35.9 |
2821 |
3×150 |
13.6±0.2 |
27.0 |
70.6 |
8340 |
|
|
1×185 |
15.2±0.2 |
28.6 |
37.6 |
3250 |
3×185 |
15.2±0.2 |
28.6 |
74.5 |
9705 |
|
|
1×240 |
17.4±0.2 |
30.8 |
40.0 |
3888 |
3×240 |
17.4±0.2 |
30.8 |
81.0 |
12490 |
|
|
1×300 |
19.5±0.2 |
32.9 |
42.5 |
4583 |
3×300 |
19.5±0.2 |
32.9 |
85.9 |
14635 |
|
|
1×400 |
22.0±0.2 |
35.4 |
45.1 |
5467 |
3×400 |
22.0±0.2 |
35.4 |
91.9 |
17515 |
|
|
1×500 |
24.8±0.2 |
39.0 |
49.1 |
6677 |
3×500 |
24.8±0.2 |
39.0 |
100.2 |
21345 |
|
|
1×630 |
28.2±0.2 |
42.4 |
52.8 |
8180 |
3×630 |
28.2±0.2 |
42.4 |
108.1 |
26055 |
|
|
1×800 |
34.0±0.2 |
48.2 |
58.8 |
10265 |
|
|
|
|
|
FAQ
1.What is our payment term?
Our payment term is T/T 30% advanced, then the balance paid before picking up the goods or L/C at sight.
2.What is the lead time?
The lead time usually is 7– 30 working days.
3.What is the package of the cable?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirement.
4.Could we provide the free sample for customer?
Sure, we provide the free sample for customer to checking.
Yes, could print your company name.
