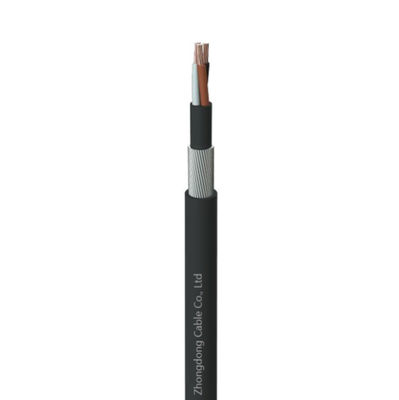

PVC Insulated AWA Armoured Control Cable 3 Core Electrical Cable Low Voltage
| Usage: | Access Control System | Insulation: | XLPE PE PVC |
| Voltage: | 300/500V ,450/750V | Length: | Customized |
| Conductor Material: | Copper | Packing: | Neutral Carton Packing Or Customized |
| High Light: | PVC Insulated Armoured Control Cable,Armoured 3 Core Electrical Cable,Low Voltage Armoured Control Cable |
||
PVC Insulated AWA Armoured Electrical Cable Three Core Control Cable
Application
PVC-armored control cables are commonly used in environments requiring mechanical protection and resistance to harsh conditions, such as Factories, plants, and automation systems where cables are exposed to abrasion, impacts, or vibrations,Chemical plants, oil refineries, and mining sites needing corrosion and moisture resistance.
Construction
- Conductor: Circular, solid, compacted or sector shaped stranded Coppe
- Insulation:PVC
- Filler:Non-hygroscopic material
- Binder tape: Non-hygroscopic material
- Amour: steel tape
- Sheath: PVC
Description
- Rated voltage 450/750V or less,The control cable can be made as flame retardant when customer required.
- Laying Temperature:during laying environment temperature shall not be less than 0℃,the cable should be preheated.
- Operating Temperature:max permissible continuous operating temperature of conductor shall not exceed 70℃.
- Bending Radius:16D for armored cable
Product range
|
Nominal cross section |
Nominal insulation thickness |
Nominal sheath thickness |
Average outside diameter |
Max. DC resistance of conductor at 20 ℃ |
Approx. weight of cable |
|
|
mm2 |
mm |
mm |
mm |
Ω/km |
kg/km |
|
|
|
|
|
Limit |
Caps |
|
|
|
3×0.75 |
0.6 |
1.2 |
7.1 |
8.5 |
24.5 |
78.3 |
|
3×1.0 |
0.6 |
1.2 |
7.4 |
8.9 |
18.1 |
88.5 |
|
3×1.5 |
0.7 |
1.2 |
8.3 |
10 |
12.1 |
113.7 |
|
3×2.5 |
0.8 |
1.2 |
9.5 |
11.5 |
7.41 |
156.9 |
|
3×4 |
0.8 |
1.2 |
10.5 |
12.7 |
4.61 |
208.5 |
|
3×6 |
0.8 |
1.5 |
11.5 |
13.9 |
3.08 |
300.4 |
|
3×10 |
1 |
1.7 |
15.2 |
18.4 |
1.83 |
487.4 |
|
4×0.75 |
0.6 |
1.2 |
7.6 |
9.2 |
24.5 |
93.2 |
