300sq mm Steel Tape Armoured Electrical Cable 35kV Cu XLPE PVC STA OEM
| Armored: | Steel Tape | Sheath Material: | PVC |
| Insulation: | XLPE | Rated Voltage: | 26/35kV |
| Conductor: | Copper | No of Core: | 1 |
| High Light: | 300sq mm Armoured Electrical Cable,Steel Tape Armoured Electrical Cable,OEM Armoured Electrical Cable 35kV |
||
300sq mm Armoured Electrical Cable Steel Tape Armoured STA 35kV Cu/XLPE/PVC/STA

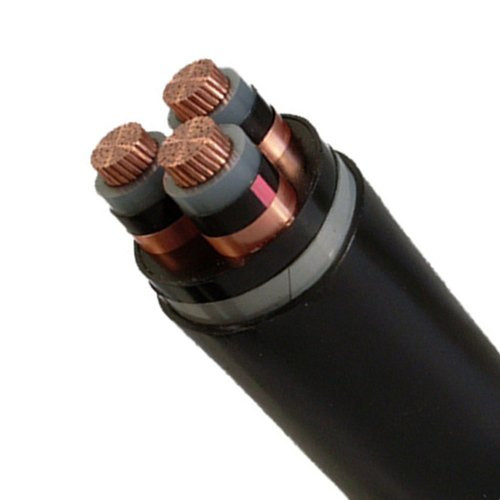

Construction
- Conductor: Circular compacted stranded Copper or aluminium
- Conductor screen: Extruded semi-conductive compound
- Insulation: XLPE
- Insulation screen: Extruded semi-conductive compound
- Metallic screen: Copper Wire
- Binder tape: non-hygroscopic material
- Inner covering(bedding): PVC
- Metallic armor: Galvanized steel tape
Application
Specification
YJV62 YJV22-26/35kV Cable Structure Parameters
|
Specs |
Conductor diameter |
Outer thickness of insulation |
Approx outer diameter of cable |
Approx cable weight |
|
3×50 |
7.6±0.2 |
31.2 |
81.8 |
8065 |
|
3×70 |
9.2±0.2 |
32.8 |
85.6 |
9116 |
|
3×95 |
10.9±0.2 |
34.5 |
89.5 |
10298 |
|
3×120 |
12.2±0.2 |
35.8 |
92.8 |
11418 |
|
3×150 |
13.6±0.2 |
37.2 |
96.2 |
12614 |
|
3×185 |
15.2±0.2 |
38.8 |
99.8 |
14066 |
|
3×240 |
17.4±0.2 |
41.0 |
105.1 |
16311 |
|
3×300 |
19.5±0.2 |
43.1 |
109.9 |
18616 |
|
3×400 |
22.0±0.2 |
45.6 |
116.0 |
21704 |
|
3×500/35 |
24.8±0.2 |
49.2 |
129.4 |
27029 |
|
3×630/35 |
28.2±0.2 |
52.6 |
137.5 |
32059 |
|
|
|
|
|
|
