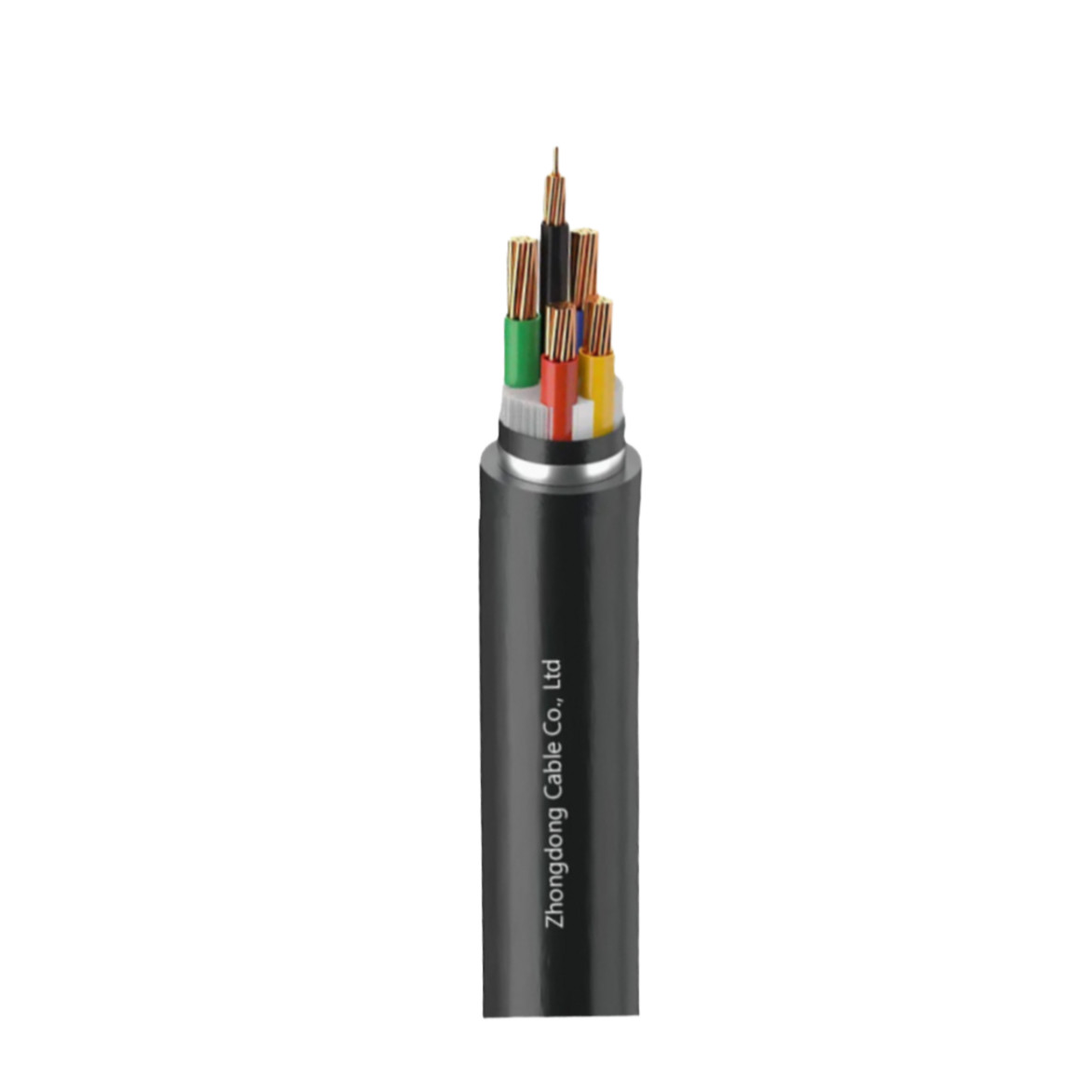

Flame Retardant STA Armoured Electrical Cable PVC Sheathed Steel Tape Armored Cable
| Insulation: | XLPE PE PVC | Voltage: | 300/500V ,450/750V |
| Length: | Customized | Conductor Material: | Copper |
| Packing: | Neutral Carton Packing Or Customized | Armouring: | Steel Tape |
| High Light: | Flame Retardant Steel Tape Armored Cable,Armoured Electrical Cable PVC Sheathed |
||
Flame Retardant STA Armoured Electrical Cable PVC Sheathed Control Cables
Application
Armored cables designed for permanent installations, suitable for both indoor and outdoor use, whether installed in air or underground.They can be mounted on walls, placed in cable ducts, or laid on cable trays.These cables are not intended for installation in wet or submerged conditions.
Construction
- Conductor: Solid or Stranded Copper Conductor
- Insualtion: XLPE
- Inner Sheath: PVC
- Armor: Steel Tape
- Sheath: Flame Retardant PVC
Product range
|
Cross-Sectional |
Thickness of |
Thickness of |
Thickness of |
Overall Diameter |
Min resistance of |
Max.D.C resistance |
Approx Weight |
|
|
min |
max |
|||||||
|
4x2.5 |
0.8 |
2x0.2(0.3) |
1.5 |
13.4 |
16.1 |
0.001 |
7.41 |
450 |
|
4x4 |
0.8 |
2x0.2(0.3) |
1.5 |
14.4 |
17.4 |
0.0085 |
4.61 |
505 |
|
4x6 |
0.8 |
2x0.2(0.3) |
1.5 |
15.6 |
18.8 |
0.007 |
3.08 |
619 |
|
4x10 |
1 |
2x0.2(0.3) |
1.7 |
19.4 |
23.5 |
0.0065 |
1.83 |
947 |
|
5x2.5 |
0.8 |
2x0.2(0.3) |
1.5 |
14.3 |
17.2 |
0.001 |
7.41 |
506 |
|
5x4 |
0.8 |
2x0.2(0.3) |
1.5 |
15.4 |
18.6 |
0.0085 |
4.61 |
586 |
|
5x6 |
0.8 |
2x0.2(0.3) |
1.7 |
16.7 |
20.2 |
0.007 |
3.08 |
737 |
|
5x10 |
1 |
2x0.2(0.3) |
1.7 |
21 |
25.4 |
0.0065 |
1.83 |
1125 |
|
7x0.75 |
0.6 |
2x0.2(0.3) |
1.5 |
11.8 |
14.2 |
0.012 |
24.5 |
317 |
|
7x1.0 |
0.6 |
2x0.2(0.3) |
1.5 |
12.2 |
14.7 |
0.011 |
18.1 |
425 |
|
7x2.5 |
0.7 |
2x0.2(0.3) |
1.5 |
13.5 |
16.3 |
0.01 |
7.41 |
554 |
|
7x4 |
0.8 |
2x0.2(0.3) |
1.5 |
15.2 |
18.4 |
0.0085 |
4.61 |
701 |
|
7x6 |
0.8 |
2x0.2(0.3) |
1.7 |
18 |
21.7 |
0.007 |
3.08 |
900 |
|
7x10 |
1 |
2x0.2(0.3) |
1.7 |
22.7 |
27.4 |
0.0065 |
1.83 |
1397 |
|
10x0.75 |
0.6 |
2x0.2(0.3) |
1.5 |
13.8 |
16.7 |
0.012 |
24.5 |
449 |
|
10x1 |
0.6 |
2x0.2(0.3) |
1.5 |
14.4 |
17.4 |
0.011 |
18.1 |
558 |
|
10x1.5 |
0.7 |
2x0.2(0.3) |
1.5 |
16.1 |
19.5 |
0.011 |
12.1 |
753 |
|
10x2.5 |
0.8 |
2x0.2(0.3) |
1.7 |
18.8 |
22.7 |
0.01 |
7.41 |
956 |
|
10x4 |
0.8 |
2x0.2(0.3) |
1.7 |
20.5 |
24.8 |
0.0085 |
4.61 |
1203 |
|
10x6 |
0.8 |
2x0.2(0.3) |
1.7 |
22.5 |
27.1 |
0.007 |
3.08 |
1534 |
