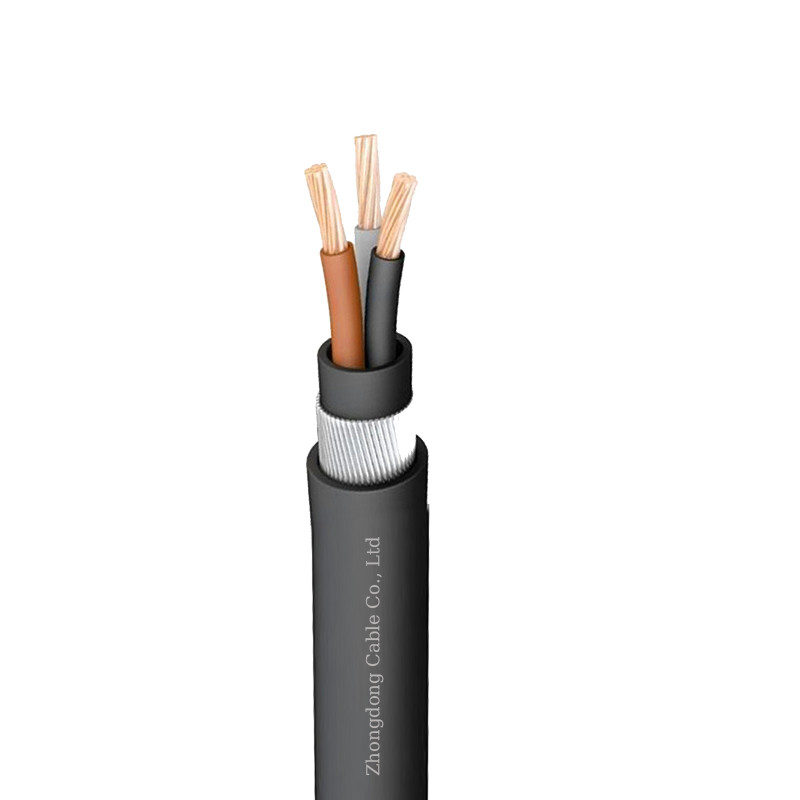

Industrial Three Core Medium Voltage Underground Cable XLPE Insulated for 26KV 35kV Applications
| Insulation Material: | XLPE | Conductor Material: | Copper Or Aluminum |
| Jacket: | LSZH | Working Temperature: | 90°C |
| Rated Voltage: | 0.6 /1KV | Color: | Black |
| High Light: | 26KV Medium Voltage Underground Cable,Three Core Medium Voltage Underground Cable |
||
Designed for reliable power transmission in demanding industrial environments with superior insulation and protection.
Ideal for installation indoors, in tunnels, cable trenches, wells, or direct burial in ground. Engineered to withstand external mechanical forces and significant pulling tension.
- Conductor: Class 2 Aluminium/Copper circular, stranded
- Conductor Screen: Semi-conductive XLPE (Cross-Linked Polyethylene)
- Insulation: XLPE (Cross-Linked Polyethylene)
- Insulation Screen: Semi-conductive XLPE (Cross-Linked Polyethylene)
- Metallic Screen: Copper wire screen
- Tape: Plastic tape applied over the screen
- Filler: Extruded polymeric material
- Bedding: PVC (Polyvinyl Chloride)
- Armour: SWA (Galvanized Steel Wire Armoured)
- Sheath: Extruded PVC (Polyvinyl Chloride) type ST2
| Specification (mm²) | Outer Diameter (mm) | Approx. Outer Diameter of Cable (mm) | Approx. Weight of Cable (kg/km) | Max. D.C. Resistance of Conductor at 20℃ (Ω/km) | ||
|---|---|---|---|---|---|---|
| Cu | Al | Cu | Al | |||
| 3×50 | 8.4 | 86.4 | 11160 | 10300 | 0.387 | 0.641 |
| 3×70 | 10 | 90.1 | 12331 | 11091 | 0.268 | 0.443 |
| 3×95 | 11.5 | 93.6 | 13630 | 11906 | 0.193 | 0.32 |
| 3×120 | 13 | 98 | 14958 | 12785 | 0.153 | 0.253 |
| 3×150 | 14.5 | 100.4 | 16119 | 13432 | 0.124 | 0.206 |
| 3×185 | 16.2 | 104.9 | 17886 | 14530 | 0.0991 | 0.164 |
| 3×240 | 18.4 | 109.4 | 20105 | 15691 | 0.0754 | 0.125 |
| 3×300 | 20.5 | 114.2 | 22599 | 17052 | 0.0601 | 0.1 |
| 3×400 | 23.5 | 120.7 | 26041 | 18963 | 0.047 | 0.0778 |
-
NProfessional factory and fast delivery, a pleasant cooperation
