8.7-15KV Medium Voltage Power Cable XLPE Insulated STA NA2XSY NA2XS2Y NA2XS(F)2Y N2XSEY
Application
Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals,in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain..
Construction

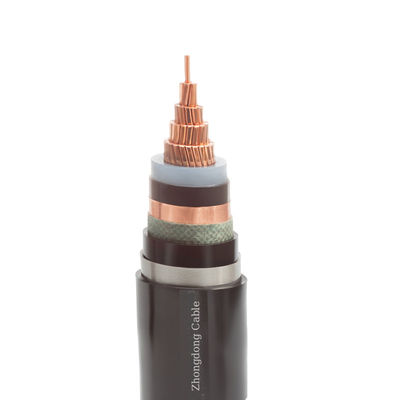

- Conductor: Circular compacted stranded Copper or aluminium
- Conductor screen: Extruded semi-conductive compound
- Insulation: XLPE
- Insulation screen: Extruded semi-conductive compound
- Metallic screen: Copper tape
- Binder tape: non-hygroscopic material
- Inner covering(bedding): PVC
- Metallic armor: Galvanized steel tape
Description
- Rated voltage: 2-35 kV
- Max. Conductor Temp.: no (90°C), short circuit no more than 5 s (160°C when section-area below 300mm2, 140°C when section-area above 300mm2)
- Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0°C
- Min. Bending Radius: single core cable 20(d+D)±5%
- Multi-core cable 15(d+D)±5%
Specification
|
Specification |
Outer diameter |
Approx. outer diameter of cable |
Approx. weight of cable |
Max. D.C. resistance of conductor at 20℃ |
||
|
mm2 |
mm |
mm |
kg/km |
Ω/km |
||
|
|
|
|
Cu |
Al |
Cu |
Al |
|
1×25 |
6 |
25.4 |
999 |
846.75 |
0.727 |
1.2 |
|
1×35 |
7 |
26.4 |
1129.7 |
917.5 |
0.524 |
0.868 |
|
1×50 |
8.4 |
27.8 |
1313.3 |
1016.7 |
0.387 |
0.641 |
|
1×70 |
10 |
29.5 |
1578.4 |
1157 |
0.268 |
0.443 |
|
1×95 |
11.5 |
31.2 |
1870.2 |
1292.7 |
0.193 |
0.32 |
|
1×120 |
13 |
32.7 |
2173.4 |
1443 |
0.153 |
0.253 |
|
1×150 |
14.5 |
34.3 |
2510.8 |
1593.1 |
0.124 |
0.206 |
|
1×185 |
16.2 |
37.4 |
2919.5 |
1783.4 |
0.0991 |
0.164 |
|
1×240 |
18.4 |
39.8 |
3532.6 |
2053.1 |
0.0754 |
0.125 |
|
1×300 |
20.5 |
42.1 |
4172.8 |
2315.6 |
0.0601 |
0.1 |
|
1×400 |
23.5 |
45.5 |
5166.9 |
2744.7 |
0.047 |
0.0778 |
|
1×500 |
26.5 |
48.8 |
6296.3 |
3218.5 |
0.0366 |
0.0605 |
|
1×630 |
30 |
52.6 |
7631.1 |
3776.8 |
0.0283 |
0.0469 |
-
