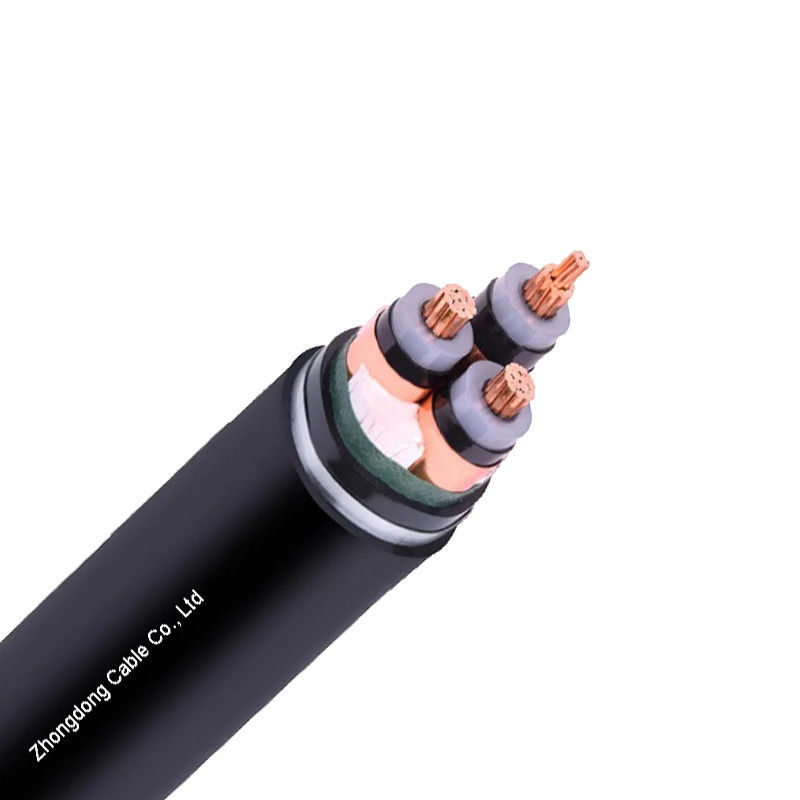

STA Steel Tape Armoured Medium Voltage Power Cable 18KV 30kV MV Cable
| Armored: | Steel Tape | Sheath Material: | PVC |
| Insulation: | XLPE | Rated Voltage: | 18/30kV |
| Conductor: | Copper | No of Core: | 1,3 |
| High Light: | Steel Tape Armoured MV Cable,Steel Tape 30kV MV Cable,Medium Voltage Power Cable 18KV |
||

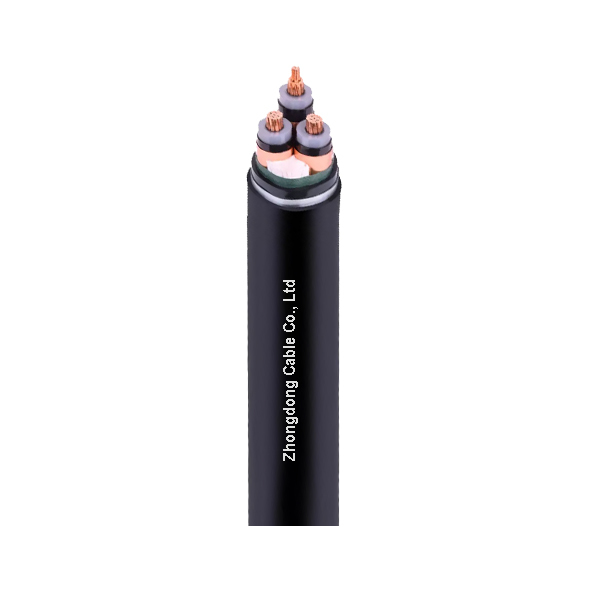

STA Steel Tape Armoured Medium Voltage Cable 18/30kV Cu/XLPE/PVC/STA
Construction
- Conductor: Circular compacted stranded Copper or aluminium
- Conductor screen: Extruded semi-conductive compound
- Insulation: XLPE
- Insulation screen: Extruded semi-conductive compound
- Metallic screen: Copper Wire
- Binder tape: non-hygroscopic material
- Inner covering(bedding): PVC
- Metallic armor: Galvanized steel tape
Application
- Steel tape armored medium-voltage cables are designed for harsh environments requiring robust mechanical protection. Key applications include:
- Underground Power Distribution:Direct burial in soil for urban/suburban grids, tunnels, and industrial parks, resisting crushing forces, moisture, and rodent damage.
- Industrial Sites:Heavy-duty power transmission in mines, oil refineries, and construction zones where cables face abrasion, impacts, or chemical exposure.
- Substations and Power Plants:Ground or duct installations connecting transformers and switchgear, ensuring durability under high mechanical stress.
- High-Risk Areas:Coastal or corrosive environments (e.g., ports, offshore platforms) where steel armor shields against saltwater, UV radiation, and physical wear.
- Renewable Energy Projects:Wind farms and solar plants for underground links between turbines, inverters, and substations.
Specification
YJV62 YJV22-18/30kV Cable Structure Parameters
|
Specs |
Conductor diameter |
Outer thickness of insulation |
Approx outer diameter of cable |
Approx cable weight |
|
Specs |
Conductor diameter |
Outer thickness of insulation |
Approx outer diameter of cable |
Approx cable weight |
|
1×50 |
7.6±0.2 |
26.8 |
37.8 |
2203 |
3×50 |
7.6±0.2 |
26.8 |
75.0 |
6553 |
|
|
1×70 |
9.2±0.2 |
28.4 |
39.6 |
2513 |
3×70 |
9.2±0.2 |
28.4 |
79.9 |
8293 |
|
|
1×95 |
10.9±0.2 |
30.1 |
41.5 |
2881 |
3×95 |
10.9±0.2 |
30.1 |
83.9 |
9484 |
|
|
1×120 |
12.2±0.2 |
31.4 |
43.0 |
3204 |
3×120 |
12.2±0.2 |
31.4 |
87.1 |
10539 |
|
|
1×150 |
13.6±0.2 |
32.8 |
44.4 |
3543 |
3×150 |
13.6±0.2 |
32.8 |
90.5 |
11708 |
|
|
1×185 |
15.2±0.2 |
34.4 |
46.3 |
4019 |
3×185 |
15.2±0.2 |
34.4 |
94.1 |
13131 |
|
|
1×240 |
17.4±0.2 |
36.6 |
48.7 |
4691 |
3×240 |
17.4±0.2 |
36.6 |
99.4 |
15335 |
|
|
1×300 |
19.5±0.2 |
38.7 |
50.8 |
5375 |
3×300 |
19.5±0.2 |
38.7 |
104.2 |
17603 |
|
|
1×400 |
22.0±0.2 |
41.2 |
53.6 |
6320 |
3×400 |
22.0±0.2 |
41.2 |
110.3 |
20643 |
|
|
1×500/35 |
24.8±0.2 |
44.8 |
60.0 |
7914 |
3×500/35 |
24.8±0.2 |
44.8 |
123.7 |
25901 |
|
|
1×630/35 |
28.2±0.2 |
48.2 |
63.5 |
9435 |
3×630/35 |
28.2±0.2 |
48.2 |
131.8 |
30868 |
|
|
1×800/35 |
34.0±0.2 |
57.0 |
70.5 |
11807 |
|
|
|
|
|
