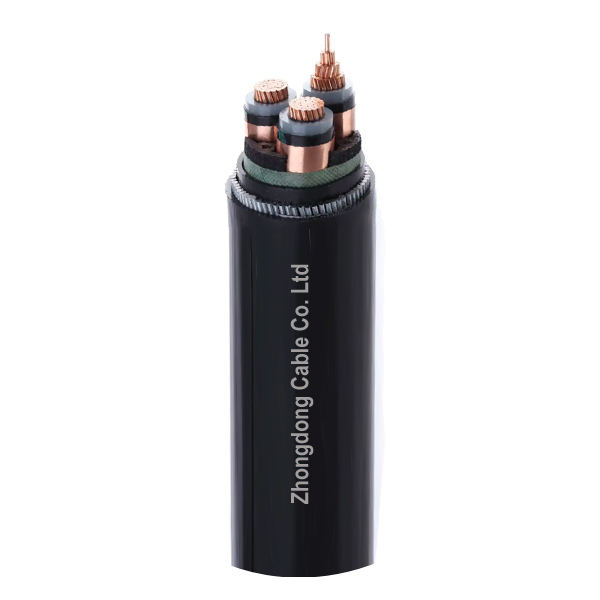

Name: 3 Core 35kV Medium Voltage Power Cable with XLPE Insulation and Steel Wire Armour for Energy Projects
Brand: Zhongdong Cable Co., Ltd.
SKU: Medium Voltage
Availability: InStock

Detail Information

Insulation Material:	Xlpe	Conductor Material:	Copper
Sheath:	PVC	Cores:	1 Core, 3 Cores
Armour:	Steel Tape Armoured
Highlight:	35kV Armoured Electrical Cable , 3 Core Medium Voltage Power Cable , XLPE Insulation Steel Wire Armoured Cable

Product Description

3 Core 35kV Medium Voltage Power Cable Steel Wire Armoured Cable for Energy Projects

Applications

This 3-core 35kV medium voltage power cable is designed for power distribution networks in compliance with IEC standards. Suitable for fixed installation in ground, ducts, and open air environments. The steel wire armour (SWA) provides exceptional mechanical strength, enabling direct burial in areas subject to mechanical stress. Engineered for reliable performance in demanding environmental and installation conditions.

Construction

Conductor: Plain annealed copper Class 2
Insulation: XLPE
Screen: Copper Tape or Copper Wire
Armour Type: STA (Steel Tape Armoured) / SWA (Steel Wire Armoured)
Sheath Material: PVC

Technical Characteristics

Related Voltage: 26/35kV
Test Voltage: 91kV/5Min
Temperature Range: Maximum 90°C, Minimum -20°C
Minimum Bending Radius: Multicore: 12D

Specifications

Specs (mm²)	Conductor Diameter (mm)	Insulation Thickness (±1.0mm)	Approx Outer Diameter (mm)	Approx Cable Weight (kg/km)
3×50	7.6±0.2	31.2	81.8	8065
3×70	9.2±0.2	32.8	85.6	9116
3×95	10.9±0.2	34.5	89.5	10298
3×120	12.2±0.2	35.8	92.8	11418
3×150	13.6±0.2	37.2	96.2	12614
3×185	15.2±0.2	38.8	99.8	14066
3×240	17.4±0.2	41.0	105.1	16311
3×300	19.5±0.2	43.1	109.9	18616
3×400	22.0±0.2	45.6	116.0	21704
3×500/35	24.8±0.2	49.2	129.4	27029
3×630/35	28.2±0.2	52.6	137.5	32059

Product Images

Frequently Asked Questions

What is your payment term?

Our payment term is T/T 30% advanced, then the balance paid before picking up the goods or L/C at sight.

What is the lead time?

The lead time usually is 7-30 working days.

What is the package of the cable?

The package is usually wooden drum or steel wooden drum or coil, also according to customer's requirement.

Could you provide free samples for customers?

Yes, we provide free samples for customer verification.

Does your company accept OEM production?

Yes, we can print your company name on products.
