Aluminium Conductor XLPE SWA LSZH IEC 60502-1 0.6/1kV Cable NA2XRH

Basic Information

Place of Origin:	Hebei，China
Brand Name:	XLPE Insulated Power Cable
Certification:	IEC,CE,ISO,TUV

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Rolls, Wooden Drums, Steel Drums, Reels or customized
Delivery Time:	7-30 days based on different qty
Payment Terms:	,L/C,T/T
Supply Ability:	100KM/Week

Get Best Price Contact Now

Detail Information

Voltage:	0.6/1kV	Insulation:	XLPE
Jacket:	PVC	No Of Core:	1-5
Armouring:	SWA AWA	Standard:	IEC60502-1

Product Description

Aluminium Conductor XLPE SWA LSZH IEC 60502-1 0.6/1kV Cable NA2XRH

APPLICATION

For installation on or under the plaster Fixed installation indoor, in air or concrete.
For buildings or industrial plants with a high density of people or valuable assets.
No direct burial or installation in water.
Outdoor laying only when protected from direct sunlight and other external impacts

CONSUCTRUCTION

Conductor: Class 2 stranded aluminium conductor
Insulation: XLPE (Cross-Linked Polyethylene)
Filler: LSZH (Low Smoke Zero Halogen)
Armour: Single core: AWA (Aluminium wire armour)
Muti Core: SWA (Galvanized round steel wire)
Sheath:LSZH (Low Smoke Zero Halogen)

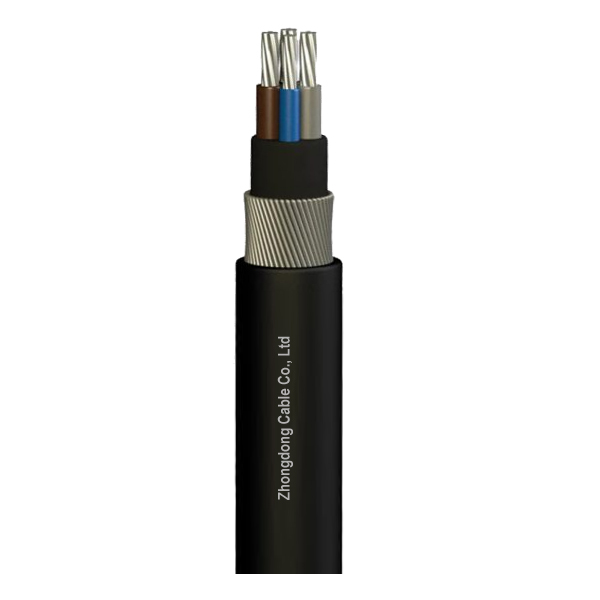

Aluminium Conductor XLPE SWA LSZH IEC 60502-1 0.6/1kV Cable NA2XRH 0

CHARACTERISTIC

Voltage Rating Uo/U

0.6/1kV

Temperature Rating

Maximum operating temperature of conductor:+90℃

Operating ambient temperature: -20℃~+55℃

Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)

Minimum Bending Radius

Single Core 15D

Three Core 12D

(D is the actual outer diameter of the cable)

STANDARD

IEC60502-1 IEC60228

SPECIFICATION

Core No	Nominal Cross Section Area mm²	Nominal Insulation Thickness mm	Nominal Outer Sheath Thickness mm	Nominal Outer Diameter mm	Nominal Weight kg/km
1	70	1.1	1.3	19.6	525
1	95	1.1	1.3	21.1	620
1	120	1.2	1.3	22.7	730
1	150	1.4	1.4	26.2	935
1	185	1.6	1.5	27.7	1085
1	240	1.7	1.5	30.3	1310
1	300	1.8	1.6	33.0	1560
1	400	2.0	1.7	36.9	1995
1	500	2.2	1.7	40.3	2375
1	630	2.4	1.8	44.8	2963
2	25	0.9	1.3	23.2	850
2	35	0.9	1.4	26.4	1165
2	50	1.0	1.6	29.8	1390
2	70	1.1	1.7	34.3	1925
2	95	1.1	1.7	37.3	2270
2	150	1.4	1.8	45.9	2945
2	185	1.6	2.0	50.0	3990
2	240	1.7	2.1	55.4	4760
2	300	1.8	2.1	60.8	5600
3	25	0.9	1.4	25.4	1100
3	35	0.9	1.5	28.0	1300
3	50	1.0	1.5	28.1	1370
3	70	1.1	1.6	31.6	1700
3	95	1.1	1.7	35.6	2215
3	120	1.2	1.8	39.0	2610
3	150	1.4	1.9	43.1	3485
3	185	1.6	2.0	47.1	4065
3	240	1.7	2.1	52.0	4900
3	300	1.8	2.2	57.1	5750
3	400	2.0	2.4	64.3	7105
4	25	0.9	1.4	27.4	1265
4	35	0.9	1.5	30.3	1520
4	50	1.0	1.6	31.8	1655
4	70	1.1	1.7	36.6	2320
4	95	1.1	1.B	39.3	2755
4	120	1.2	1.9	44.4	3635
4	150	1.4	2.0	48.9	4280
4	185	1.6	2.1	53.7	5025
4	240	1.7	2.2	597.0	6105
4	300	1.8	2.4	65.3	7315
5	25	0.9	1.5	297.0	1530
5	35	0.9	1.6	32.9	1830
5	50	1.0	1.7	37.8	2535
5	70	1.1	1.8	43.0	3250

CONTACTR US FOR MORE VOLATAGE SPECIFICATIONS
