Detail Information

Voltage:	26/35kV	Insulation:	XLPE
Jacket:	PVC	No Of Core:	1,3
Armouring:	Steel Tape Or Steel Wire	Conductor:	Aluminium
Highlight:	35kV Aluminium Conductor Cable , XLPE Insulation Power Cable , Steel Tape Armouring MV Cable

Product Description

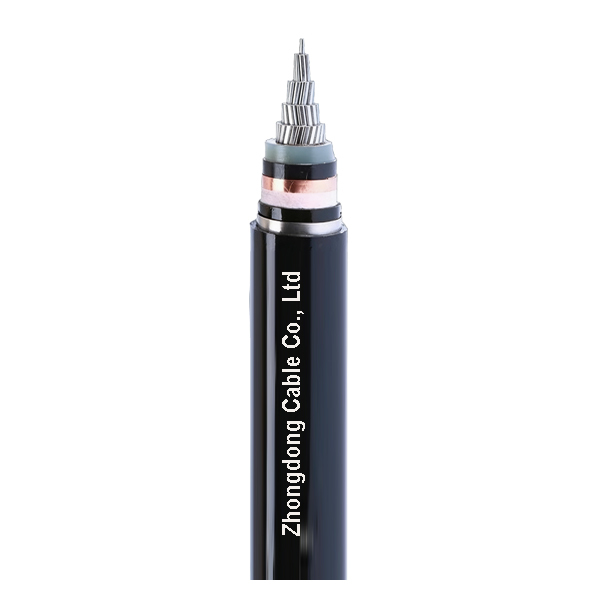

35kV MV Aluminium Alloy Conductor Power Cable

AL/XLPE/STA/PVC for Power Transmission

Application

This 35kV medium-voltage aluminium alloy conductor cable enables efficient, cost-effective power transmission, featuring XLPE insulation for superior dielectric strength, steel tape armoring for robust mechanical protection, and PVC sheathing for moisture and corrosion resistance. Ideal for urban grid upgrades, industrial park power supply, rural long-distance electrification, high-rise building distribution, and renewable energy farm grid connection. Suitable for underground, trench, or outdoor laying scenarios.

Construction

Conductor: Class 2 Aluminium conductor
Conductor Shield: Semi-conductive shield
Insulation: Cross-Linked Polyethylene (XLPE)
Insulation Shield: Semi-conductive shield
Metal Shielding Layer: Copper tape: 50-400mm², Copper Wire: 500-800mm²
Binder Tape: Non-woven fabrics
Isolation Sleeve: Polyvinyl chloride (PVC)
Armour: Non-magnetic steel Tape
Outer Sheath: Polyvinyl chloride (PVC)

Characteristics

Voltage Rating Uo/U: 26/35(40.5)kV
Maximum Operating Temperature: +90℃
Operating Ambient Temperature: -20℃ to +45℃
Cable Laying Temperature: Not less than 0℃ (preheating required below 0℃)
Minimum Bending Radius: 15D

Specifications

Specs (mm²)	Conductor Diameter (mm)	Insulation Thickness (mm)	Insulation Outer Diameter (±1.0mm)	Sheath Thickness (mm)	Cable Outer Diameter (mm)	Cable Weight (kg/km)
1×50	8.2	10.5	31.6	2.3	44.1	2354
1×70	10.0	10.5	33.2	2.4	45.9	2551
1×95	11.6	10.5	35.0	2.4	47.7	2755
1×120	13.0	10.5	36.4	2.5	49.4	2953
1×150	14.4	10.5	37.8	2.5	51.0	3166
1×185	16.1	10.5	39.6	2.6	53.0	3425
1×240	18.4	10.5	41.8	2.6	55.2	3744
1×300	20.6	10.5	44.0	2.7	57.9	4135
1×400	23.4	10.5	46.8	2.8	60.9	4654
1×500	26.6	10.5	50.6	3.0	67.5	5647
1×630	30.0	10.5	54.0	3.1	71.3	6335
1×800	34.0	10.5	58.0	3.2	75.4	7146
