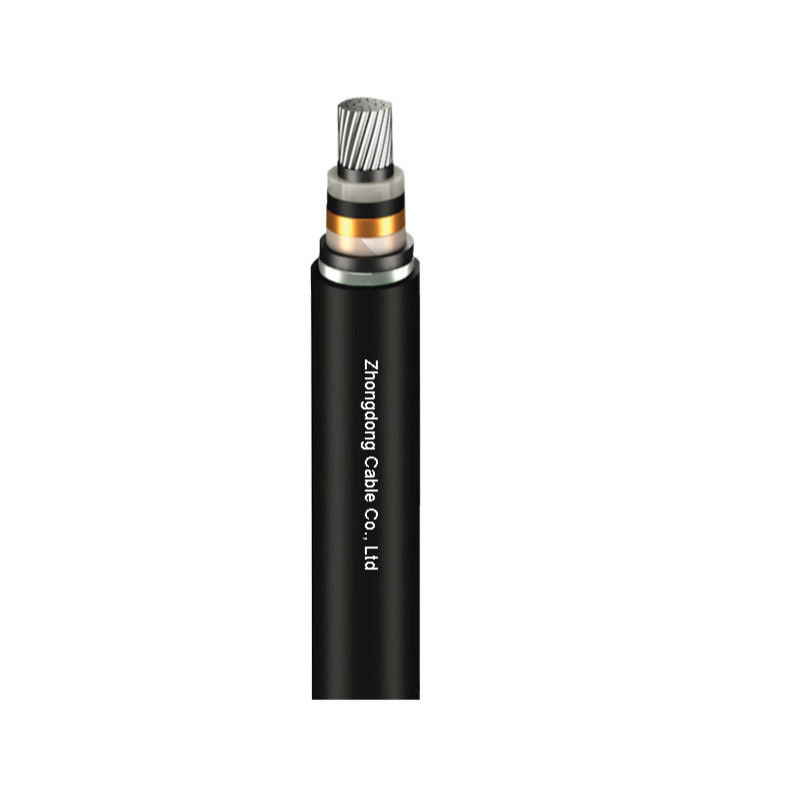

Aluminium Alloy Conductor Cable 18/30kV 300sq Mm Steel Tape Armoured STA Cable
| Insulation: | XLPE HPDE | Voltage: | 26/35kV |
| Length: | Customized | Conductor Material: | Aluminium Alloy |
| Packing: | Neutral Carton Packing Or Customized | Application: | Overhead |
| High Light: | 300sq mm Aluminium Alloy Conductor Cable,Aluminium Conductor Armoured STA Cable |
||
Aluminium Alloy Conductor Cable 18/30kV 300sq mm Steel Tape Armoured STA Cable
Application
- Power Transmission and Distribution: Ideal for overhead power lines and underground systems in urban and rural grids.
- Building Wiring: Used in commercial, residential, and industrial buildings for electrical distribution and branch circuits.
- Industrial Facilities: Suitable for powering machinery, equipment, and lighting in factories, mines, and plants.
- Transportation Infrastructure: Deployed in railways, airports, subways, and bridges for power supply and control systems.
- Renewable Energy Projects: Applied in solar farms, wind farms, and energy storage systems for efficient power transmission.
- Retrofitting Projects: Often replaces traditional copper cables to reduce costs and weight while maintaining performance.
Their flexibility, durability, and compliance with international standards (e.g., UL, IEC) make them a versatile choice for modern electrical networks.
Construction
- Conductor
- Conductor Shiel
- Insulation
- Metal Shield Layer
- Filler
- Binder Tape
- Armouring
- Outer sheath
Advantages of Aluminum Alloy Cables
- Lightweight and Cost-Effective
- Superior Mechanical Properties
- Corrosion Resistance
- Flexibility and Ease of Installation
- Sustainability
Specification
|
Specs |
Conductor diameter |
Outer thickness of insulation |
Approx outer diameter of cable |
Approx cable weight |
|
1×50 |
7.6±0.2 |
26.8 |
37.8 |
2203 |
|
1×70 |
9.2±0.2 |
28.4 |
39.6 |
2513 |
|
1×95 |
10.9±0.2 |
30.1 |
41.5 |
2881 |
|
1×120 |
12.2±0.2 |
31.4 |
43.0 |
3204 |
|
1×150 |
13.6±0.2 |
32.8 |
44.4 |
3543 |
|
1×185 |
15.2±0.2 |
34.4 |
46.3 |
4019 |
|
1×240 |
17.4±0.2 |
36.6 |
48.7 |
4691 |
|
1×300 |
19.5±0.2 |
38.7 |
50.8 |
5375 |
|
1×400 |
22.0±0.2 |
41.2 |
53.6 |
6320 |
|
1×500/35 |
24.8±0.2 |
44.8 |
60.0 |
7914 |
|
1×630/35 |
28.2±0.2 |
48.2 |
63.5 |
9435 |
|
1×800/35 |
34.0±0.2 |
57.0 |
70.5 |
11807 |
