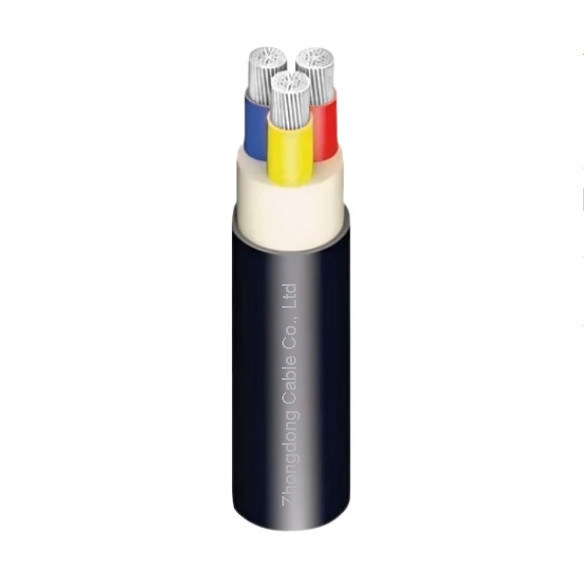

Aluminium Alloy Conductor Power Cable XLPE Insulation PVC Sheath Metal Tape Armouring
| Insulation: | XLPE HPDE | Voltage: | 18/30kV |
| Length: | Customized | Conductor Material: | Aluminium Alloy 8000 Series |
| Packing: | Neutral Carton Packing Or Customized | Application: | Overhead Lines Or Ground Power Supply |
| High Light: | XLPE Insulation Alloy Conductor Power Cable,PVC Sheath Alloy Conductor Power Cable |
||
Aluminium Alloy Conductor Cable XLPE Insulation PVC Sheath Metal Tape Armouring Power Cable
Application
Aluminum alloy cables are widely utilized in various industries due to their lightweight, cost-effectiveness, corrosion resistance, and excellent electrical conductivity.
Construction
- Conductor: AA-8000 Series AL-Alloy
- Conductor Shield
- Insulation
- Binder Tape
- Outer sheath: PVC
Specification
YJLHV62 YJLHV22-18/30kV Cable Structure Parameters
|
Specs |
Conductor diameter |
Outer thickness of insulation |
Approx outer diameter of cable |
Approx cable weight |
|
3×50 |
7.6±0.2 |
256 |
68.1 |
4915 |
|
3×70 |
9.2±0.2 |
27.2 |
71.7 |
5417 |
|
3×95 |
10.9±0.2 |
28.9 |
75.8 |
6002 |
|
3×120 |
12.2±0.2 |
302 |
80.3 |
7343 |
|
3×150 |
13.6±0.2 |
31.6 |
83.5 |
7932 |
|
3×185 |
15.2±0.2 |
33.2 |
87.3 |
8705 |
|
3×240 |
17.4±0.2 |
35.4 |
92.5 |
9801 |
|
3×300 |
19.5±0.2 |
37.5 |
97.4 |
10875 |
|
3×400 |
22.0±0.2 |
40.0 |
103.5 |
12531 |
|
3×500 |
24.8±0.2 |
43.6 |
111.8 |
14423 |
|
3×630 |
28.2±0.2 |
47.0 |
119.8 |
16614 |
