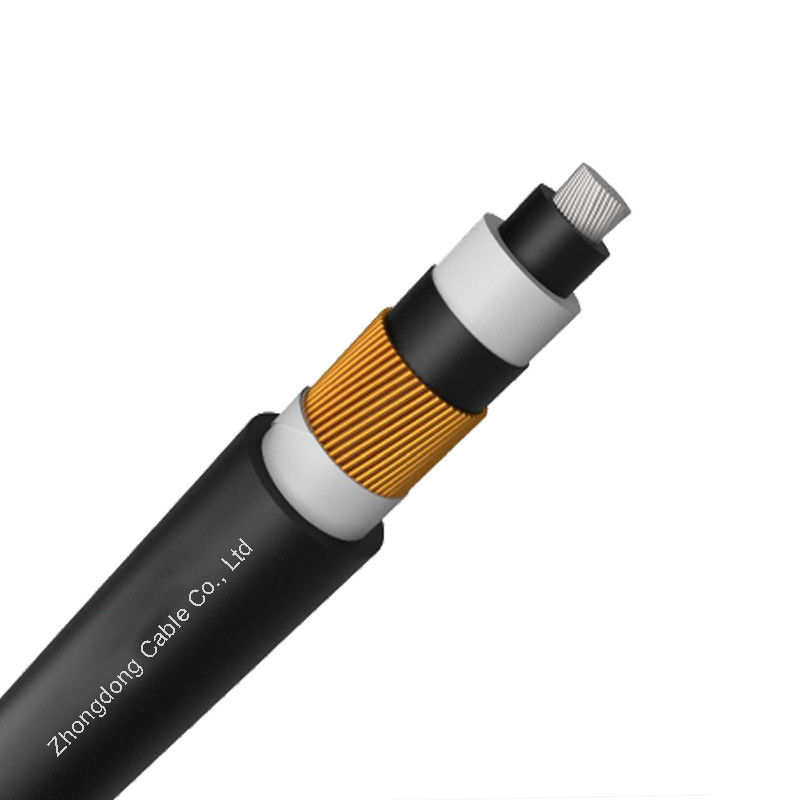

Single Core Aluminium Conductor Cable Shield Steel Tape Armoured XLPE Insulated 12/20kV
| Insulation: | XLPE HPDE | Voltage: | 18/30kV |
| Length: | Customized | Conductor Material: | Copper |
| Packing: | Neutral Carton Packing Or Customized | Application: | Overhead |
| High Light: | Single Core Aluminium Conductor Cable,20kV Aluminium Conductor Cable,XLPE Insulated Aluminium Conductor Cable |
||
Single Core Aluminium Conductor Cable Copper Tape Shield Steel Tape Armoured XLPE Insulated 12/20kV
Application
Suitable for urban underground power grids, power station outgoing lines, internal power supply lines of industrial and mining enterprises, etc.
Construction
- Conductor
- Conductor Shiel
- Insulation
- Metal Shield Layer
- Filler
- Binder Tape
- Armouring
- Outer sheath
Laying Method
Pipe laying, trench laying, tunnel laying, vertical shaft and bridge laying, etc.
Specification
YJLHV62 YJLHV22-12/20kV Cable Structure Parameters
|
Specs |
Conductor diameter |
Outer thickness of insulation |
Approx outer diameter of cable |
Approx cable weight |
|
1×35 |
6.6±0.2 |
20.0 |
27.8 |
965 |
|
1×50 |
7.6±0.2 |
21.0 |
28.8 |
1066 |
|
1×70 |
9.2±0.2 |
22.6 |
30.6 |
1203 |
|
1×95 |
10.9±0.2 |
24.3 |
32.3 |
1340 |
|
1×120 |
12.2±0.2 |
25.6 |
33.8 |
1483 |
|
1×150 |
13.6±0.2 |
27.0 |
36.5 |
1955 |
|
1×185 |
15.2±0.2 |
28.6 |
38.2 |
2164 |
|
1×240 |
17.4±0.2 |
30.8 |
40.6 |
2455 |
|
1×300 |
19.5±0.2 |
32.9 |
43.1 |
2773 |
|
1×400 |
220±0.2 |
35.4 |
45.7 |
3217 |
|
1×500 |
24.8±0.2 |
39.0 |
49.7 |
3750 |
|
1×630 |
282±0.2 |
42.4 |
53.4 |
4360 |
|
1×800 |
34.0±0.2 |
48.2 |
59.4 |
5192 |
