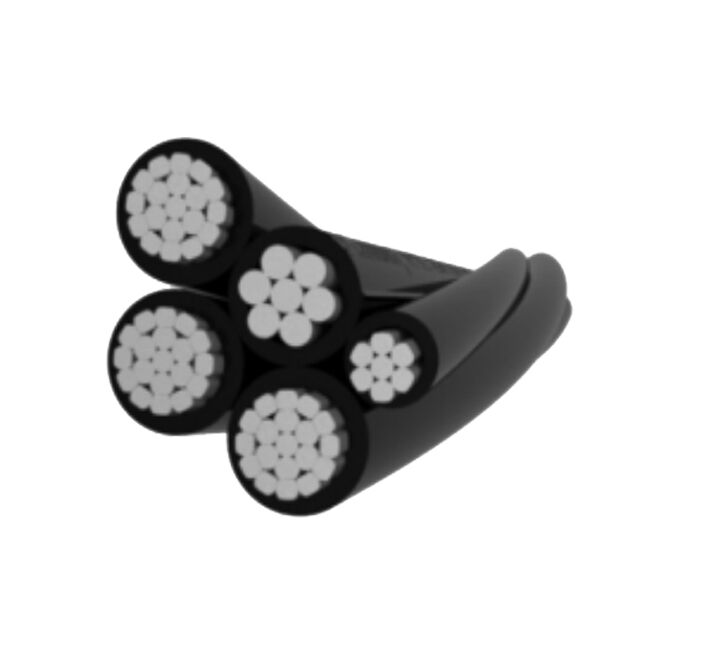

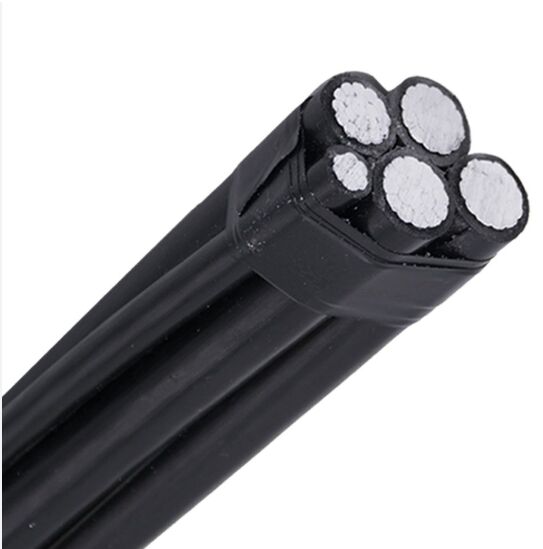

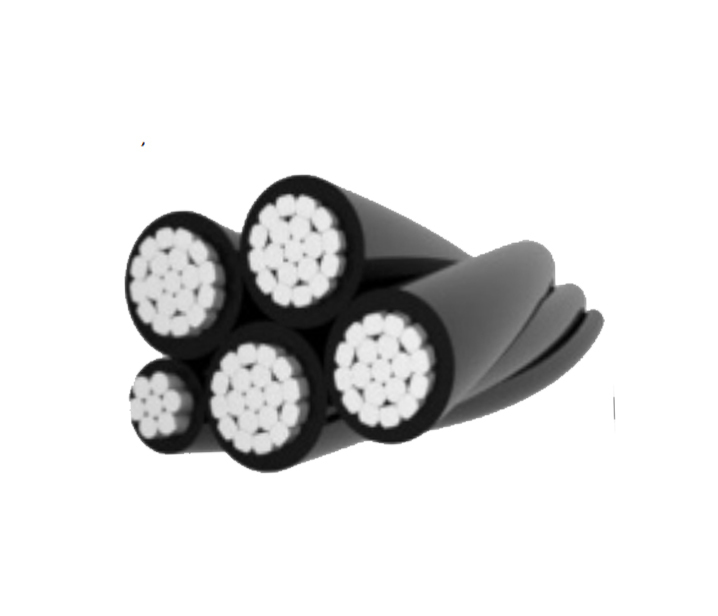

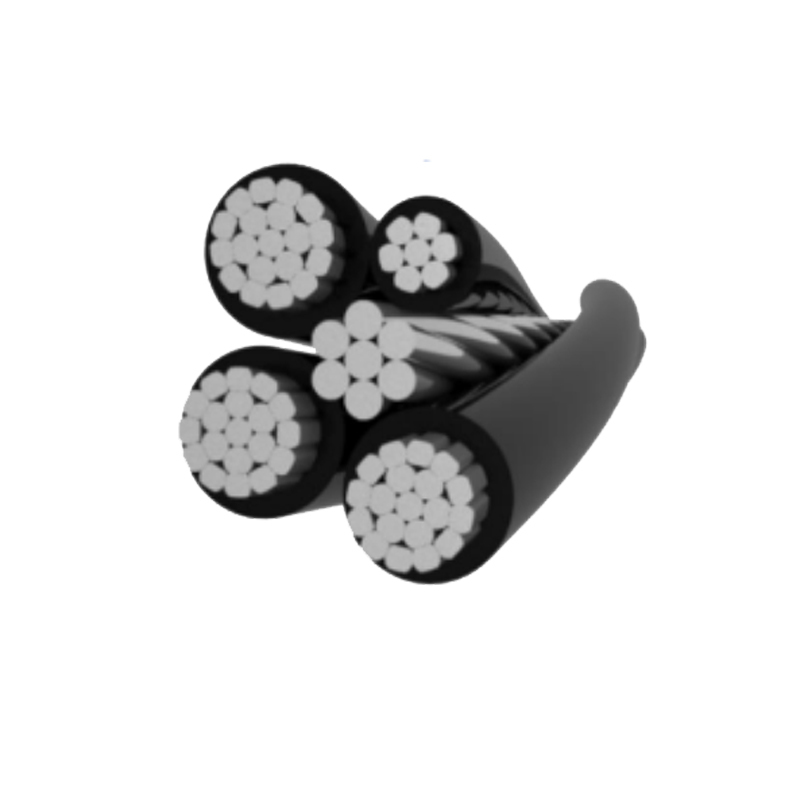

5 Core Aerial Bundled ABC Cable with Corrosion Resistant and 15/35kV Rated Voltage for Overhead Power Distribution

Basic Properties
Place of Origin: Hebei，China
Brand Name: Aerial Bundled ABC Cable
Certification: CCC,ISO,TUV,CE
Model Number: ABC
Trading Properties
Minimum Order Quantity: Negotiable
Price: Negotiable
Payment Terms: ,L/C,T/T
Supply Ability: 100KM/Week
Tags

ABC Power Cable

Aerial Bundled ABC Cable

Aerial Bundled Cable
Specifications
Application: Overhead Distribution Line Cores Nos: 1,2,3,4 More Multicore
Rated Voltage: 15/35kV Installation Degree: -20℃-90℃
Neutral Messengers: AAC, AAAC Or ACSR Insulation: PE/PVC
High Light:

5 Core Aerial Bundled Cable

,

Corrosion Resistant ABC Cable

,

15/35kV Rated Voltage Overhead Power Cable
Product Description
3 Phase Aerial Bundled ABC Cable 5 Core
Designed for overhead power distribution systems with excellent corrosion resistance, offering superior safety, reliability, and cost-efficiency compared to traditional bare conductors.
Applications
  • Temporary Power Supply at Construction Sites
  • Service Drop (Power Pole to Service Entrance)
  • Secondary Cable (Pole-to-Pole) & Street Lighting
  • Heavy-Duty Applications in Industrial Areas
  • Medium-Voltage (MV) Distribution (15kV-25kV Systems)
  • Three-Phase Power Distribution
Construction
  • 1, 2 or 3 Phase cores + Bare Support/Neutral Al Alloy + optional 25mm² Street light
  • 1, 2 or 3 Phase cores + Insulated Support/Neutral Al Alloy + optional 25mm² Street light
  • 1, 2 or 3 Phase cores + Insulated Neutral Aluminium + optional 25mm² Street light
3 Phase Aerial Bundled ABC Cable construction diagram ABC Cable cross-section view Aerial Bundled Cable installation example
Technical Specifications
Number of cores x nominal cross section Min. breaking load of conductor strand Current rating in the air Outer diameter Total weight
mm² kN A mm kg/km
1x16+1x25 RM 6.4 61 15.3 160
3x16+1x25 RM 6.4 61 19 290
3x25+1x25 RM 6.4 84 23.2 400
3x35+1x25 RM 6.4 104 25.6 500
3x50+1x35 RM 8.9 129 30 680
3x70+1x50 RM 12.1 167 34.9 920
3x95+1x70 RM 18 209 40.6 1270
3x120+1x70 RM 18 246 44.1 1510
3x150+1x95 RM 24.2 283 49.2 1870
3x185+1x120 RM 30.8 332 54.9 2340
3x25+1x25+1x16 RM 6.4 84 23.2 470
3x35+1x25+1x16 RM 6.4 104 25.6 560
3x50+1x35+1x16 RM 8.9 129 30 740
3x70+1x50+1x16 RM 12.1 167 34.9 980
3x95+1x70+1x16 RM 18 209 40.6 1330
3x120+1x70+1x16 RM 18 246 44.1 1580
3x150+1x95+1x16 RM 24.2 283 49.2 1940
3x185+1x120+1x16 RM 30.8 332 54.9 2410
4x25 RM 3.5 84 21.5 420
4x35 RM 4.9 104 23.9 550
4x120+1x25 RM 16.8 246 43.8 1800
4x185+1x25 RM 25.9 332 50.7 2700
Our Manufacturing Facilities
Modern cable manufacturing plant and equipment
Project Applications
ABC Cable installation in various project settings
Quality Assurance
Quality control processes and testing equipment
Frequently Asked Questions
Do you provide samples? Are they free or chargeable?
Free samples are available for standard products, but customers must cover the courier cost. Customized samples may incur a fee based on material costs.
What is your Minimum Order Quantity (MOQ) for cable products?
We have a flexible MOQ requirement, and for new clients, we offer trial orders at reduced MOQ.
How long is your production lead time?
Standard cables: 7-30 days after order confirmation. Expedited options available for urgent orders.
Do you offer OEM/ODM services?
Yes, we support OEM/ODM with custom branding, packaging, and technical specifications. Design files and logos can be provided for approval.
How do you handle quality control?
Our strict QC system includes pre-production material testing, in-process inspections, and final product checks. Third-party testing is available for large orders.
