Detail Information

Insulation:	XLPE HPDE	Voltage:	18/30kV
Length:	Customized	Conductor Material:	Aluminium Alloy 8000 Series
Packing:	Neutral Carton Packing Or Customized	Application:	Overhead Lines Or Ground Power Supply
Highlight:	Custom Length Aluminium Power Cable , 18/30kV Voltage Aluminium Conductor Cable , Aluminium Alloy 8000 Series XLPE Insulated Cable

Product Description

Custom Length Aluminium Power Cable AL/XLPE/STA SWA/PVC NA2XRY NA2X2Y

Applications

Industrial Power Distribution: Suitable for factories, manufacturing plants, and heavy machinery
Infrastructure Projects: Used in construction, tunnels, bridges, and underground installations
Renewable Energy: Deployed in solar and wind farms for power transmission
Urban Networks: Applied in urban power grids, street lighting, and public facilities

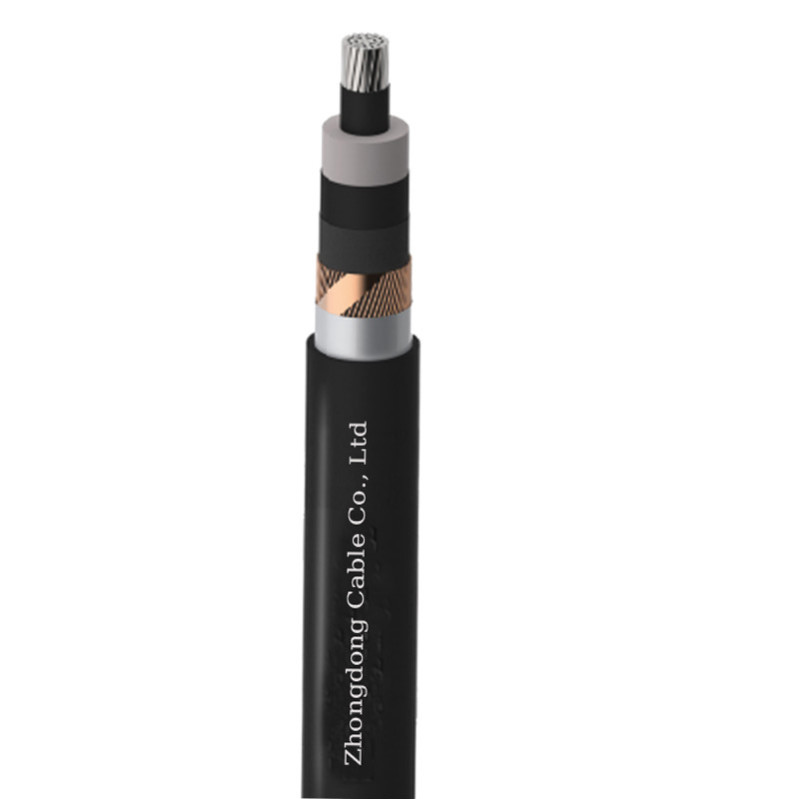

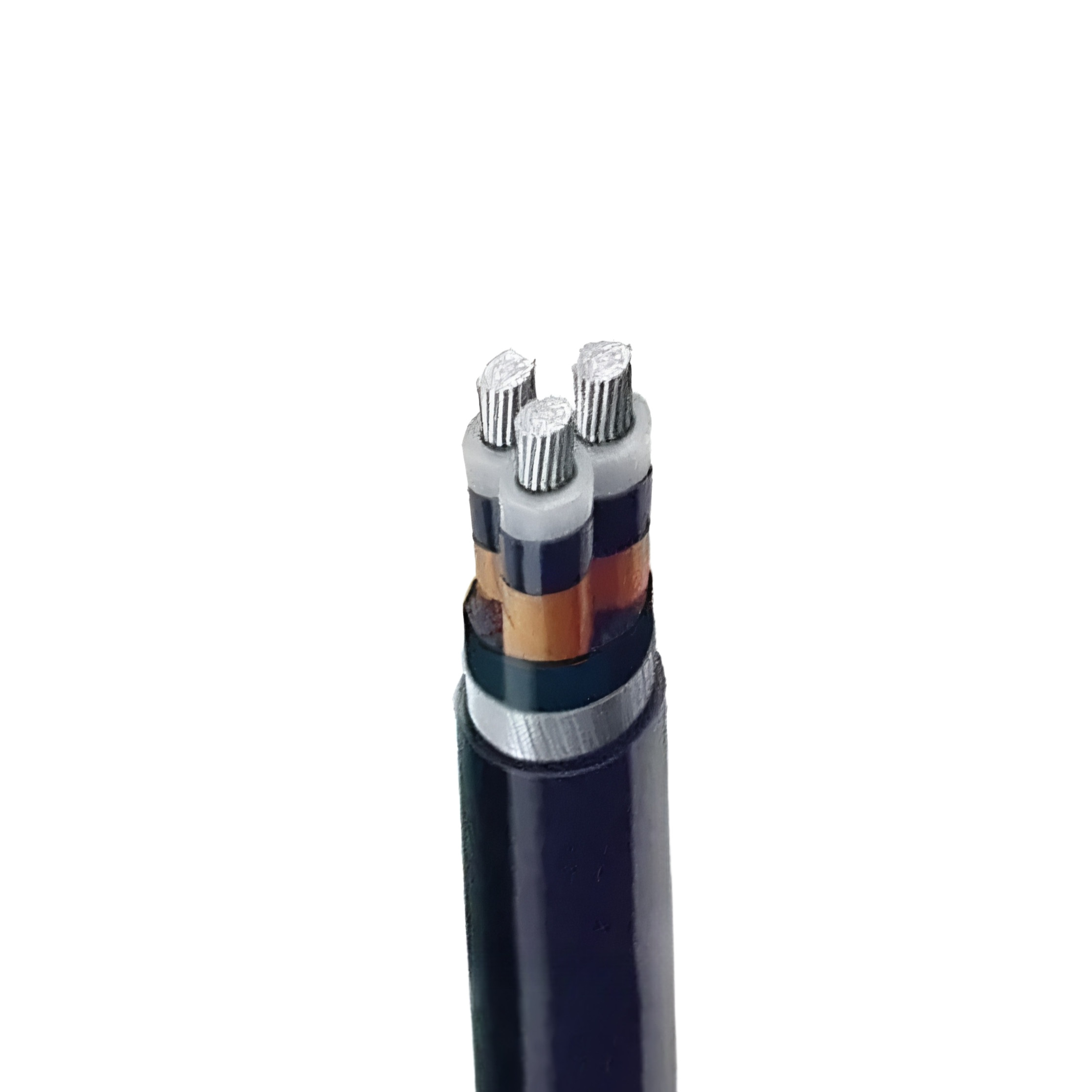

Cable Construction

Conductor: Round compacted conductors
Conductor Shield: Semi conductive shielding material (below 500mm) / Semi conductive tape + semi conductive shielding material (500mm and above)
Insulation: Polyvinyl chloride (PVC)/XLPE
Insulation Shield: Peelable semiconducting shielding material
Metal Shield Layer: Copper Tape / Copper Wire (35kV 500mm above)
Filler: Polypropylene (PP) mesh filling rope
Binder Tape: Non-hygroscopic straps
Armouring: Steel Tape (Single core) / Galvanized steel tape (3 core)
Outer Sheath: 90℃ Polyvinyl chloride (PVC)

Technical Specifications - YJLHV62 YJLHV22-6/10kV Cable Parameters

Specs (mm²)	Conductor Diameter (mm)	Insulation Thickness (±1.0mm)	Approx Outer Diameter (mm)	Approx Weight (kg/km)	Specs (mm²)	Conductor Diameter (mm)	Insulation Thickness (±1.0mm)	Approx Outer Diameter (mm)	Approx Weight (kg/km)
1×25	6.0±0.1	15.6	23.1	687	3×25	6.0±0.1	15.6	44.1	2256
1×35	6.6±0.2	16.2	23.7	756	3×35	6.6±0.2	16.2	45.4	2487
1×50	7.6±0.2	17.2	24.9	849	3×50	7.6±0.2	17.2	48.1	2866
1×70	9.2±0.2	18.8	26.5	963	3×70	9.2±0.2	18.8	51.9	3303
1×95	10.9±0.2	20.5	28.3	1103	3×95	10.9±0.2	20.5	55.8	3762
1×120	12.2±0.2	21.8	29.6	1224	3×120	12.2±0.2	21.8	58.9	4222
1×150	13.6±0.2	23.2	31.2	1371	3×150	13.6±0.2	23.2	62.1	4701
1×185	15.2±0.2	24.8	32.8	1536	3×185	15.2±0.2	24.8	65.9	5322
1×240	17.4±0.2	27.0	36.5	1788	3×240	17.4±0.2	27.0	71.2	6222
1×300	19.5±0.2	29.1	38.7	2401	3×300	19.5±0.2	29.1	76.2	7154
1×400	22.0±0.2	31.6	41.6	2845	3×400	22.0±0.2	31.6	83.3	9321
1×500	24.8±0.2	35.2	45.4	3332	3×500	24.8±0.2	35.2	91.6	10998
1×630	28.2±0.2	38.6	49.1	3913	3×630	28.2±0.2	38.6	99.8	13005
1×800	34.0±0.2	44.4	55.1	4704

Manufacturing Facility

Project Applications

Delivery and Packaging

Frequently Asked Questions

What types of cables does your company specialize in?

We produce power cables (e.g., YJV22, YJY23), control cables, and specialty cables for industrial, renewable energy, and infrastructure projects.

Can you provide custom-length cables?

Yes, we offer bespoke lengths to minimize waste and optimize installation efficiency.

Are your cables suitable for underground or harsh environments?

Yes, armored cables like YJV22 with steel tape protection are ideal for direct burial and rocky terrain.

How do you ensure flame retardancy and safety?

Our PVC sheaths and XLPE insulation meet low-smoke, flame-retardant standards per IEC testing.

What lead time can I expect for bulk orders?

Typically 2-4 weeks, though expedited production is available for urgent projects.

Do you offer technical support for cable selection?

Our engineering team provides free consultations to match cables to your project's voltage, environment, and budget.
