High Power 132KV ACSR Dog Conductor Bare Conductor Eco Friendly for Overhead Transmission
Basic Properties
Place of Origin:
Hebei，China
Brand Name:
Zhongdong
Certification:
CCC,IEC,VDE,TUV,ISO
Model Number:
AACSR
Trading Properties
Minimum Order Quantity:
Negotiable
Price:
Negotiable
Payment Terms:
,L/C,T/T
Supply Ability:
500KM/Week
Specifications
| Range Of Application: | Overhead Transmission, Overhead Ground | Material: | Aluminum |
| Drum Packing: | Steel Wooden Drum | Product Name: | AAC/AAAC/ACSR/ACSS/ACCC |
| Per Drum Weight: | As Per Request | Voltage: | Up To 110KV |
| High Light: | 132KV ACSR Dog Conductor,Eco Friendly Bare Conductor,High Power Overhead Transmission Conductor |
||
Product Description

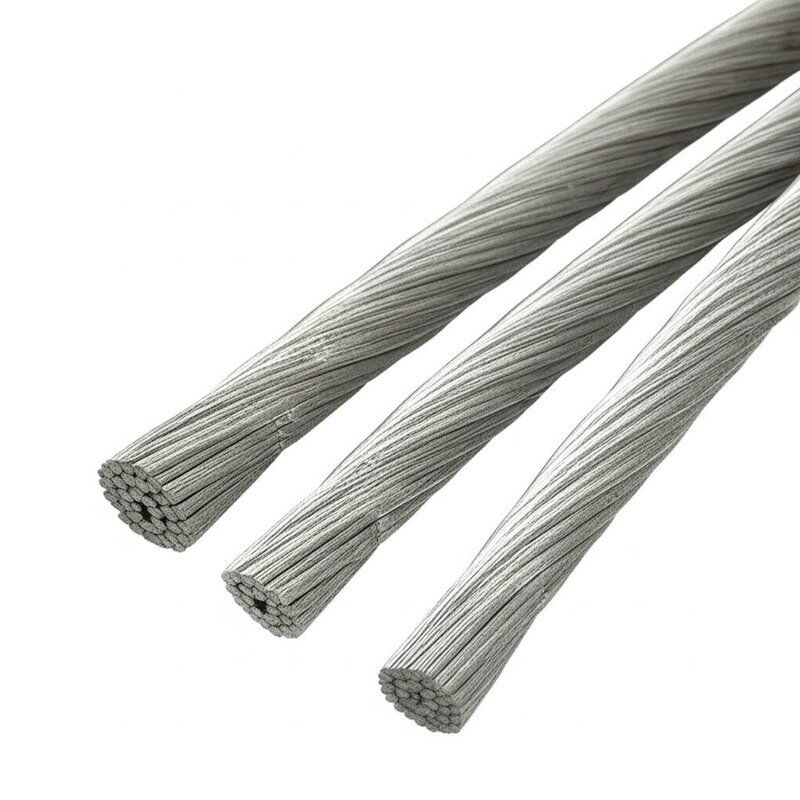

High Power 132KV Bare Conductor ACSR Dog Conductor
Eco-friendly overhead transmission line conductor designed for efficient power distribution at 132KV voltage rating.
Applications
- Transmission Networks: Primary use in high-voltage (132KV) overhead transmission lines for long-distance electricity transmission with minimal energy loss
- Eco-Friendly Design: Composed of recyclable aluminum conductors reinforced with steel, supporting sustainable infrastructure goals
- Durability & Performance: Suitable for diverse terrains including rivers and valleys due to robust construction, low maintenance requirements, and high transmission capacity
- Standards Compliance: Manufactured to meet international standards including IEC 61089 for global compatibility
Construction
- Steel Core: Central galvanized steel strands providing superior mechanical strength to withstand high tension and wind loads
- Aluminum Conductors: Outer layers of aluminum ensuring optimal electrical conductivity for efficient power transmission
- Stranded Design: Enhanced flexibility for easy installation and adaptability to various terrain conditions
Characteristics
- Voltage Rating: Rated for 132KV, suitable for high-voltage transmission networks
- High Strength-to-Weight Ratio: Steel core provides exceptional tensile strength without excessive weight
- Corrosion Resistance: Galvanized steel core and aluminum conductors provide durability in harsh environmental conditions
- Eco-Friendly: Fully recyclable materials align with sustainable infrastructure goals
Specifications
Compliant with BS215 PART2 standards
| Code name | Cross section (mm²) | No. of wires | Wire diameter (mm) | Diameter (mm) | Mass per km (kg) | Rated strength (kN) | DC resistance at 20°C (ohm/km) |
|---|---|---|---|---|---|---|---|
| MOLE | 12.4 | 6+1 | 1.5 | 4.5 | 42.8 | 4.14 | 2.7027 |
| SQUIRREL | 24.5 | 6+1 | 2.11 | 6.33 | 84.7 | 7.87 | 1.3659 |
| GOPHEL | 30.6 | 6+1 | 2.36 | 7.08 | 106 | 9.58 | 1.0919 |
| WEASEL | 36.9 | 6+1 | 2.59 | 7.77 | 127.6 | 11.38 | 0.9065 |
| FOX | 42.8 | 6+1 | 2.79 | 8.37 | 148.1 | 13.21 | 0.7812 |
| FERRET | 49.5 | 6+1 | 3.00 | 9.00 | 171.2 | 15.27 | 0.6757 |
| RABBIT | 61.7 | 6+1 | 3.35 | 10.1 | 213.5 | 18.42 | 0.5419 |
| MINIK | 73.6 | 6+1 | 3.66 | 11.0 | 254.9 | 21.67 | 0.4540 |
| SKUNK | 100.1 | 12+7 | 2.59 | 13.0 | 463.0 | 52.79 | 0.4568 |
| BEAVER | 87.5 | 6+1 | 3.99 | 12.0 | 302.9 | 25.76 | 0.3820 |
| HORSE | 116.2 | 12+7 | 2.79 | 14.0 | 537.3 | 61.26 | 0.3936 |
| RACOON | 92.0 | 6+1 | 4.09 | 12.3 | 318.3 | 27.06 | 0.3635 |
| OTTER | 97.9 | 6+1 | 4.22 | 12.7 | 338.8 | 28.81 | 0.3415 |
| CAT | 111.3 | 6+1 | 4.50 | 13.5 | 385.3 | 32.76 | 0.3003 |
| HARE | 122.5 | 6+1 | 4.72 | 14.2 | 423.8 | 36.04 | 0.2730 |
| DOG | 118.5 | 6+7 | 4.72/1.57 | 14.2 | 394.0 | 32.65 | 0.2733 |
| COYOTE | 151.8 | 26+7 | 2.54/1.91 | 15.9 | 520.7 | 45.86 | 0.2192 |
| COUGAR | 138.8 | 18+1 | 3.05 | 15.3 | 418.8 | 29.74 | 0.2188 |
| TIGER | 161.9 | 30+7 | 2.36 | 16.5 | 602.2 | 57.87 | 0.2202 |
| WOLF | 194.9 | 30+7 | 2.59 | 18.1 | 725.3 | 68.91 | 0.1829 |
| DINGO | 167.5 | 18+1 | 3.35 | 16.8 | 505.2 | 35.87 | 0.1814 |
| LYNX | 226.2 | 30+7 | 2.79 | 19.5 | 841.6 | 79.97 | 0.1576 |
| CARACAL | 194.5 | 18+1 | 3.61 | 18.1 | 586.7 | 40.74 | 0.1562 |
| PANTHER | 261.5 | 30+7 | 3.00 | 21.0 | 973.1 | 92.46 | 0.1363 |
| JAGUAR | 222.3 | 18+1 | 3.86 | 19.3 | 670.8 | 46.57 | 0.1366 |
| LION | 293.9 | 30+7 | 3.18 | 22.3 | 1093.4 | 100.47 | 0.1213 |
| BEAR | 326.1 | 30+7 | 3.35 | 23.5 | 1213.4 | 111.5 | 0.1093 |
| GOAT | 400.0 | 30+7 | 3.71 | 26.0 | 1488.2 | 135.13 | 0.0891 |
| SHEEP | 462.6 | 30+7 | 3.99 | 27.9 | 1721.3 | 156.3 | 0.0771 |
| ANTELOPE | 422.6 | 54+7 | 2.97 | 26.7 | 1413.8 | 118.88 | 0.0773 |
| BISON | 431.2 | 54+7 | 3.00 | 27.0 | 1442.5 | 121.3 | 0.0758 |
| DEER | 529.8 | 30+7 | 4.27 | 29.9 | 1971.4 | 179.0 | 0.0673 |
| ZEBRA | 484.5 | 54+7 | 3.18 | 28.6 | 1620.8 | 131.92 | 0.0674 |
| ELK | 588.5 | 30+7 | 4.50 | 31.5 | 2189.5 | 198.8 | 0.0606 |
| CAMEL | 537.7 | 54+7 | 3.35 | 30.2 | 1798.8 | 146.4 | 0.0608 |
| MOOSE | 597.0 | 54+7 | 3.53 | 31.8 | - | - | - |
Contact us for more details
About Us
Projects
Why Choose Us
Frequently Asked Questions
What is the 132KV ACSR Dog Conductor?
A high-voltage overhead transmission conductor with a steel core and aluminum strands, designed for efficient long-distance power distribution at 132KV.
Why is it called "Dog Conductor"?
The name derives from its historical use in dog-legged transmission lines (or "dog-leg" configurations) to navigate challenging terrain.
Where is it typically used?
Overhead transmission lines in urban, rural, and remote areas, including river crossings and mountainous regions.
How does it perform under extreme weather?
Resists corrosion, thermal expansion, and mechanical stress, maintaining efficiency in temperatures ranging from -40°C to +80°C.
What is the lifespan of a 132KV ACSR Dog Conductor?
Over 40 years with proper installation and maintenance, thanks to its robust steel core and aluminum protection.
How does it compare to other conductors (e.g., AAC or AAAC)?
Offers superior strength and sag performance compared to all-aluminum conductors (AAC), making it ideal for high-tension applications.
