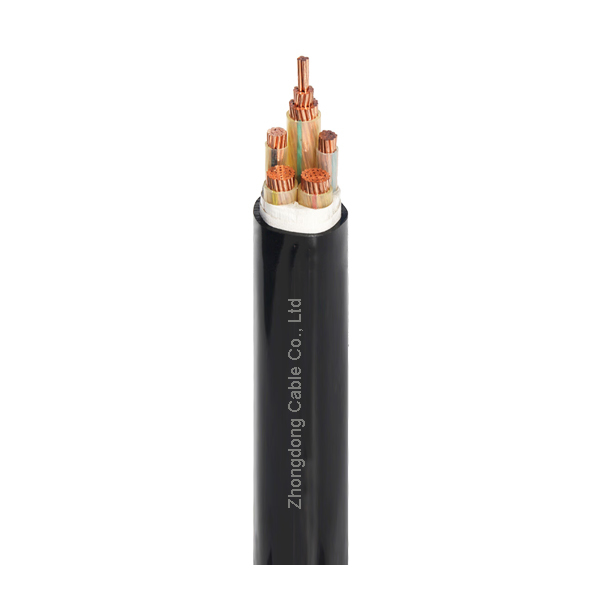

Low Voltage Fire Resistant Cable 0.6/1kV with Copper Conductor and XLPE Insulation for Fire Safety Applications

Basic Properties
Place of Origin: Hebei，China
Brand Name: Low Voltage Fire Resistant Cable
Certification: ISO,CE,IEC,TUV
Model Number: YJY N2X2Y
Trading Properties
Minimum Order Quantity: Negotiable
Price: Negotiable
Payment Terms: L/C,T/T
Supply Ability: 100KM/Week
Tags

Flame Retardant Cable

Fire Proof Cable

Fire Retardant Cable
Specifications
Insulation Material: Xlpe Conductor Material: Copper
Sheath: PE Type: 0.6/1kV
Cross Section: 0.5-630mm2 Feature: Fire Rated
High Light:

0.6/1kV Fire Resistant Cable

,

Copper Conductor Low Voltage Cable

,

XLPE Insulation Fire Rated Cable
Product Description
Low Voltage Fire Rated Cable 0.6/1kV CU/XLPE/PE YJY N2X2Y
This fire-resistant cable is designed for low-voltage power distribution systems where fire safety is critical, rated for 0.6/1kV applications.
Applications
Suitable for installation in cable ducts, underground applications, and exposed installations in various industrial and commercial environments.
Construction Details
  • Conductor: Class 1/Class 2 stranded copper conductor
  • Refractory layer: Single-sided gold mica tape
  • Insulation: XLPE (Cross-linked polyethylene)
  • Filler options: Polypropylene mesh tear rope or flame-retardant filling
  • Outer sheath: Polyethylene (PE)

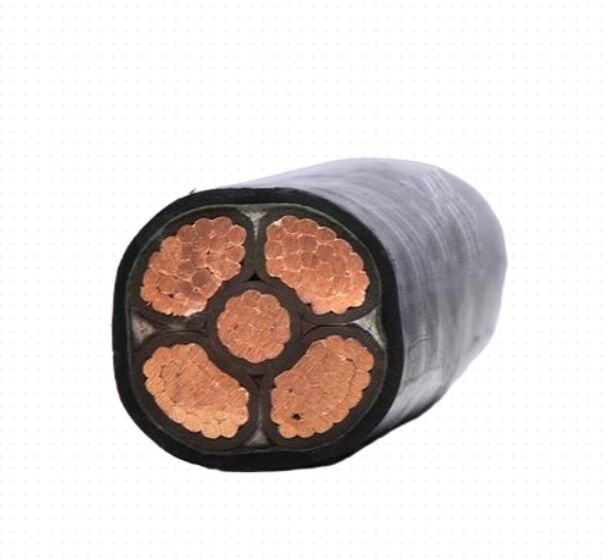

Low Voltage Fire Rated Cable construction diagram Fire Resistant Cable technical specifications
Product Parameters - Three Core Cables
Spec (mm²) Conductor Diameter (mm) Approx Outer Diameter (mm) Approx Cable Weight (kg/km)
3*10417.0-17.3460.1-518.4
3*16519.2-19.5652.7-727.3
3*255.5921.7941.7-1030.0
3*356.6223.91236.9-1346.2
3*507.6526.5-27.41616.8-1797.7
3*709.2130.6-31.42264.6-2498.7
3*9510.7834.1-35.03043.3-3330.1
3*12012.1237.6-38.53791.7-4135.4
3*15013.6942.3-43.14690.4-5116.1
3*18515.2146.6-47.55819.2-6331.8
3*24017.452.2-53.07547.6-8180.2
3*30019.5557.69389.3-10057.7
3*40022.0564.411855.9-12691.4
Four Core Cables
Spec (mm²) Conductor Diameter (mm) Approx Outer Diameter (mm) Approx Cable Weight (kg/km)
4*1.51.3711.7-12.4165.3-180.3
4*2.51.7512.6-13.4211.9-228.7
4*42.2213.7-14.0279.1-298.0
4*62.7414.9-15.2370.4-392.0
4*10418.7-19.0582.0-646.6
4*16521.4838.5-916.4
4*255.5923.81212.3-1310.8
4*356.6226.31599.7-1721.4
4*507.6529.5-30.32110.8-2313.0
4*709.2133.9-34.82961.9-3223.5
4*9510.7837.9-38.83987.3-4307.2
4*12012.1242.0-42.84988.0-5372.8
4*15013.6947.0-47.86147.6-6622.7
4*18515.2152.0-52.87653.0-8226.3
4*24017.458.2-59.09929.3-10636.8
4*30019.5564.212353.7-13101.3
4*40022.0571.815597.2-16532.3
Five Core Cables
Spec (mm²) Conductor Diameter (mm) Approx Outer Diameter (mm) Approx Cable Weight (kg/km)
5*1.51.3712.7-13.4194.6-211.5
5*2.51.7513.7-14.4251.8-270.8
5*42.2214.9-15.2334.8-356.2
5*62.7416.2-16.6447.7-472.3
5*10420.7713.2-785.5
5*16523.41025.6-1119.7
5*255.5926.21490.0-1609.3
5*356.6228.91971.7-2119.4
5*507.6532.6-33.42618.3-2859.1
5*709.2137.6-38.43677.1-3989.9
5*9510.7842.2-43.04970.8-5356.2
5*12012.1246.5-47.36197.0-6659.7
5*15013.6952.2-53.07659.4-8233.1
5*18515.2157.8-58.69532.9-10226.6
Contact Us for More Details
Get comprehensive technical specifications and pricing information for our fire-rated cables.
About Our Company
Our cable manufacturing facility and capabilities
Our Projects
Successful cable installation projects worldwide
Packaging
Professional cable packaging and shipping methods
Frequently Asked Questions
What types of cable products does your company primarily manufacture?
We specialize in the production of various types of power cables, control cables, communication cables, and specialty cables, including but not limited to PVC-insulated cables, XLPE power cables, mining cables, marine cables, and photovoltaic cables.
Which international standards do your products comply with?
Our products comply with various international standards, such as IEC, BS, UL, ASTM, GB, etc., depending on the product type. We can provide products compliant with different international standards.
What quality certifications do you hold?
We have obtained ISO and CCC quality management system certifications, and some products have also obtained international certifications. We can also apply for specific certifications based on customer requirements.
What is the delivery lead time?
Standard products are typically in stock and can be shipped within 7-15 days. Customized products require 15-45 days depending on quantity.
Do you accept customized products?
We provide OEM and ODM service, we can customize cable products according to customer's special requirements, including specifications, colors, packaging and so on.
