Detail Information

Usage:	Power Transmission And Distribution	Insulation:	LSZH
Voltage:	0.6/1kV	Conductor:	Copper
Packing:	Drum, Carton Or Customized	Standard:	EN 60332-3-24

Product Description

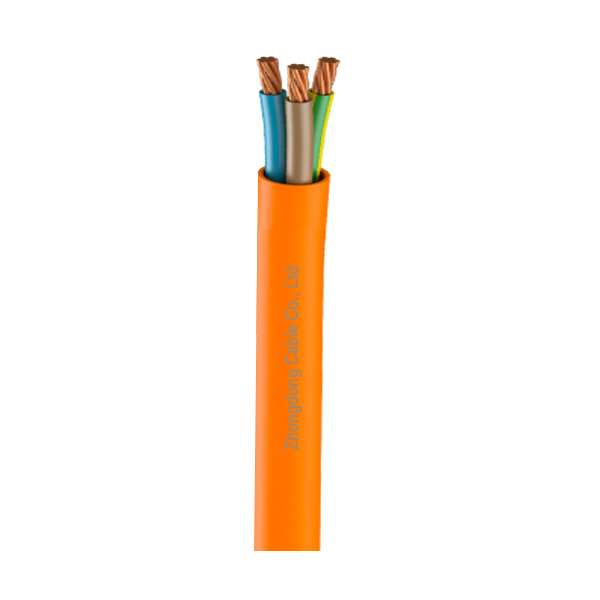

0.6/1kV Fire Resistant Cable CU/LSZH/LSZH EN 60332-3-24

Application

A low-voltage fire-resistant power cable with LSZH insulation and sheath. The cable is widely used in places where fire safety is critical, such as commercial buildings, hospitals, airports,metro stations, shopping malls, schools and tec.

Construction

1.Conductor : Class 1 or 2 copper conductor

2.Insulation:LSZH (Low Smoke Zero Halogen)
3.Inner Sheath:LSZH (Low Smoke Zero Halogen)
4. Outer Sheath:LSZH (Low Smoke Zero Halogen)

0.6/1kV Fire Resistant Cable CU/LSZH/LSZH EN 60332-3-24 0

Standards

IEC/EN 60332-3-24, IEC 60331

Specifications

Spec mm²	Conductor diameter mm	Approx outer diameter of cable mm				Approx cable weight kg/km
Spec mm²	Conductor diameter mm	NH	ZAN	ZBN	ZCN	NH	ZAN	ZBN	ZCN
3×16	5.0	18.9	192	192	19.2	659.4	713.1	719.2	680.1
3×25	6.1	22.5	22.5	22.5	22.5	974.7	1044.6	1051.8	996.1
3×35	72	24.8	24.8	24.8	24.8	1274.1	1361.6	1369.6	1300.0
3×50	8.4	27.9	28.3	27.9	27.9	1659.7	1806.0	1775.4	1692.0
3×70	10.0	32.0	32.4	32.0	32.0	2320.7	2510.1	2474.6	2362.4
3×95	12.0	36.4	36.9	36.4	36.4	3132.4	3375.7	3334.7	3185.7
3×120	12.2	37.5	37.9	37.5	37.5	3797.7	4053.5	4010.8	3853.6
3×150	13.6	41.8	41.8	41.8	41.8	4681.2	4957.1	49455	4749.1
3×185	15.2	46.3	46.3	46.3	46.3	5813.6	6154.0	6133.9	5896.1
3×240	17.4	51.9	51.9	51.9	51.9	7519.6	7947.6	7923.0	7621.7
3×300	19.5	572	57.2	57.2	57.2	9355.8	9847.1	9847.1	9478.3
3×400	22.0	64.0	64.0	64.0	64.0	11858.3	12473.0	12473.0	12009.4
4×1.5	1.39	12.0	12.3	12.3	12.3	186.2	201.4	201.4	201.4
4×2.5	1.76	12.9	13.2	13.2	12.9	236.7	252.8	252.8	241.3
4×4	2.22	14.0	14.3	14.3	14.0	3092	327.2	327.2	314.2
4×6	2.74	15.3	15.6	15.6	15.3	402.2	422.6	422.6	407.8
4×10	4.0	18.3	18.6	18.6	18.6	588.5	634.7	640.6	607.4
4×16	5.0	21.0	21.0	21.0	21.0	845.5	900.0	906.7	863.1
4×25	6.1	24.7	24.7	24.7	24.7	1250.8	1328.7	1336.6	1274.7
4×35	72	27.4	27.4	27.4	27.4	1643.6	1741.3	1750.2	1672.6
4×50	8.4	30.9	31.4	30.9	30.9	2163.3	2326.9	2292.5	2199.4
4×70	10.0	35.5	35.9	35.5	35.5	3031.9	3243.8	3203.9	3078.4
4×95	12.0	40.5	41.0	40.5	40.5	4098.6	4370.6	4324.5	4158.1
4×120	12.2	41.8	42.3	41.8	41.8	4998.3	5285.4	5236.4	5060.6
4×150	13.6	46.4	46.4	46.4	46.4	6136.1	6444.3	6430.9	6211.8
4×185	15.2	51.6	51.6	51.6	51.6	7649.6	8031.2	8006.8	7741.8
4×240	17.4	57.8	57.8	57.8	57.8	9896.6	10376.0	10346.5	10010.5
4×300	19.5	63.7	63.7	63.7	63.7	12314.4	12861.8	12861.8	12451.0
4×400	22.0	71.3	71.3	71.3	71.3	15606.1	16291.7	16291.7	15774.6
5×1.5	1.39	13.0	13.3	13.3	13.3	218.6	235.5	235.5	235.5
5×2.5	1.76	14.0	14.3	14.3	14.0	280.8	298.8	299.5	285.8
5×4	2.22	152	15.5	15.5	15.2	369.9	391.0	391.0	375.4
5×6	2.74	16.6	16.9	16.9	16.6	484.6	508.5	508.5	490.7
5×10	4.0	20.4	20.4	20.4	20.4	7192	769.4	776.9	7356
5×16	5.0	23.1	23.1	23.1	23.1	1031.4	1097.7	1106.4	1052.2
5×25	6.1	27.2	27.2	27.2	27.2	1533.7	1628.8	1637.6	1562.1
5×35	72	30.1	30.1	30.1	30.1	2021.3	2140.4	2150.2	2055.8
5×50	8.4	34.2	34.7	34.2	34.2	2680.5	2876.9	2838.3	2723.7
5×70	10.0	39.3	39.8	39.3	39.3	3760.0	4014.9	3970.1	3815.8
5×95	12.0	45.1	45.5	45.1	45.1	5107.2	5436.4	5383.7	5178.7
5×120	12.2	46.3	46.7	46.3	46.3	6204.7	6550.6	6495.8	6279.6
5×150	13.6	51.6	51.6	51.6	51.6	7643.2	8020.9	8004.6	7734.5
5×185	15.2	57.4	57.4	57.4	57.4	9525.2	9992.5	9963.3	9636.4
5×240	17.4	64.2	64.2	64.2	64.2	12322.0	12909.5	12874.3	12459.9

0.6/1kV Fire Resistant Cable CU/LSZH/LSZH EN 60332-3-24 1

0.6/1kV Fire Resistant Cable CU/LSZH/LSZH EN 60332-3-24 2

0.6/1kV Fire Resistant Cable CU/LSZH/LSZH EN 60332-3-24 3

0.6/1kV Fire Resistant Cable CU/LSZH/LSZH EN 60332-3-24 4

0.6/1kV Fire Resistant Cable CU/LSZH/LSZH EN 60332-3-24 5

FAQ

1.What is our payment term?

Our payment term is T/T 30% advanced, then the balance paid before picking up the goods or L/C at sight.

2.What is the lead time?
The lead time usually is 7– 30 working days.

3.What is the package of the cable?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirement.

4.Could we provide the free sample for customer?
Sure, we provide the free sample for customer to checking.

5.Does your company accept OEM production?
Yes, could print your company name.

Please feel free to leave your requirement, We will reply you in 12 hours.
