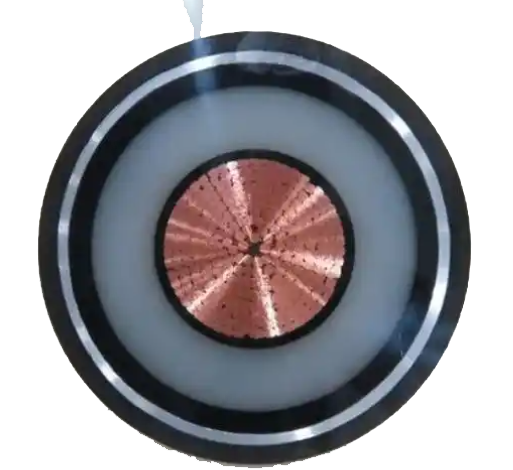

  • Quality Low Voltage Fire Resistant Cable 0.6/1kV with Copper Conductor and XLPE Insulation for Fire Safety Applications factory

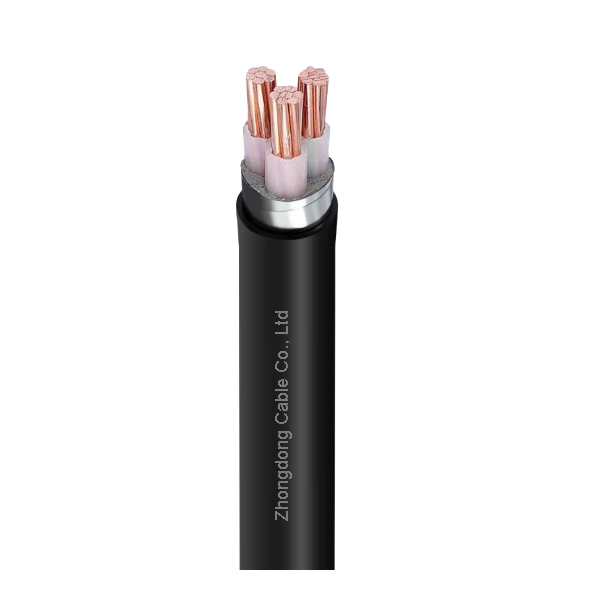

  • Quality Low Voltage Fire Resistant Cable 0.6/1kV with Copper Conductor and XLPE Insulation for Fire Safety Applications factory

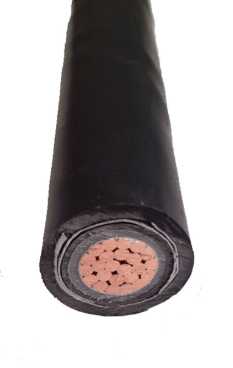

  • Quality Low Voltage Fire Resistant Cable 0.6/1kV with Copper Conductor and XLPE Insulation for Fire Safety Applications factory

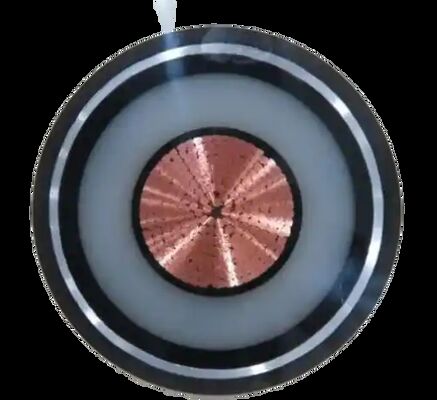

Low Voltage Fire Resistant Cable 0.6/1kV with Copper Conductor and XLPE Insulation for Fire Safety Applications

Basic Properties
Place of Origin: Hebei，China
Brand Name: Fire Resistant Cable
Certification: ISO,CE,IEC,TUV
Model Number: YJY N2X2Y
Trading Properties
Minimum Order Quantity: Negotiable
Price: Negotiable
Payment Terms: L/C,T/T
Supply Ability: 100KM/Week
Tags

Flame Retardant Cable

Fire Proof Cable

Fire Retardant Cable
Specifications
Insulation Material: Xlpe Conductor Material: Copper
Sheath: PE Type: 0.6/1kV
Cross Section: 0.5-630mm2 Feature: Fire Rated
High Light:

low voltage fire resistant cable

,

XLPE insulation fire resistant cable

,

copper conductor fire safety cable
Product Description
Low Voltage Fire Rated Cable 0.6/1kV CU/XLPE/PE YJY N2X2Y
This fire-resistant cable is designed for low-voltage power distribution systems where fire safety is critical, rated for 0.6/1kV applications.
Applications
Suitable for installation in cable ducts, underground applications, and exposed installations in various industrial and commercial environments.
Construction Details
  • Conductor: Class 1/Class 2 stranded copper conductor
  • Refractory layer: Single-sided gold mica tape
  • Insulation: XLPE (Cross-linked polyethylene)
  • Filler options: Polypropylene mesh tear rope or flame-retardant filling
  • Outer sheath: Polyethylene (PE)
Low Voltage Fire Rated Cable construction diagram Fire Resistant Cable technical specifications
Product Parameters - Three Core Cables
Spec (mm²) Conductor Diameter (mm) Approx Outer Diameter (mm) Approx Cable Weight (kg/km)
3*10417.0-17.3460.1-518.4
3*16519.2-19.5652.7-727.3
3*255.5921.7941.7-1030.0
3*356.6223.91236.9-1346.2
3*507.6526.5-27.41616.8-1797.7
3*709.2130.6-31.42264.6-2498.7
3*9510.7834.1-35.03043.3-3330.1
3*12012.1237.6-38.53791.7-4135.4
3*15013.6942.3-43.14690.4-5116.1
3*18515.2146.6-47.55819.2-6331.8
3*24017.452.2-53.07547.6-8180.2
3*30019.5557.69389.3-10057.7
3*40022.0564.411855.9-12691.4
Four Core Cables
Spec (mm²) Conductor Diameter (mm) Approx Outer Diameter (mm) Approx Cable Weight (kg/km)
4*1.51.3711.7-12.4165.3-180.3
4*2.51.7512.6-13.4211.9-228.7
4*42.2213.7-14.0279.1-298.0
4*62.7414.9-15.2370.4-392.0
4*10418.7-19.0582.0-646.6
4*16521.4838.5-916.4
4*255.5923.81212.3-1310.8
4*356.6226.31599.7-1721.4
4*507.6529.5-30.32110.8-2313.0
4*709.2133.9-34.82961.9-3223.5
4*9510.7837.9-38.83987.3-4307.2
4*12012.1242.0-42.84988.0-5372.8
4*15013.6947.0-47.86147.6-6622.7
4*18515.2152.0-52.87653.0-8226.3
4*24017.458.2-59.09929.3-10636.8
4*30019.5564.212353.7-13101.3
4*40022.0571.815597.2-16532.3
Five Core Cables
Spec (mm²) Conductor Diameter (mm) Approx Outer Diameter (mm) Approx Cable Weight (kg/km)
5*1.51.3712.7-13.4194.6-211.5
5*2.51.7513.7-14.4251.8-270.8
5*42.2214.9-15.2334.8-356.2
5*62.7416.2-16.6447.7-472.3
5*10420.7713.2-785.5
5*16523.41025.6-1119.7
5*255.5926.21490.0-1609.3
5*356.6228.91971.7-2119.4
5*507.6532.6-33.42618.3-2859.1
5*709.2137.6-38.43677.1-3989.9
5*9510.7842.2-43.04970.8-5356.2
5*12012.1246.5-47.36197.0-6659.7
5*15013.6952.2-53.07659.4-8233.1
5*18515.2157.8-58.69532.9-10226.6
