0.6/1kV 3+1 Core Fire Resistant Cable | IEC 60331 FR XLPE Insulated Power Cable for Emergency Systems
| Usage: | Power Transmission And Distribution | Insulation: | XLPE |
| Voltage: | 0.6/1kV | Conductor: | Copper |
| Packing: | Drum, Carton Or Customized | Standard: | EN 60331 |
| High Light: | 0.6/1kV fire resistant power cable,IEC 60331 FR XLPE insulated cable,3+1 core emergency system cable |
||
0.6/1kV 3+1 Core Fire Resistant Cable | IEC 60331 FR XLPE Insulated Power Cable for Emergency Systems
1. Product Overview
The 0.6/1kV 3+1 core fire resistant cable is designed to maintain circuit integrity during fire conditions, ensuring continuous power supply to critical systems such as fire alarms, emergency lighting, and evacuation equipment.
Manufactured with high-quality copper conductors and fire-resistant insulation, this cable complies with IEC standards and is widely used in commercial buildings, industrial facilities, and infrastructure projects.
2. Key Features
- Fire resistance according to IEC 60331 (circuit integrity under flame)
- Stable performance under high temperature conditions
- Low smoke emission (optional LSZH sheath)
- Excellent mechanical strength and durability
- Suitable for fixed installation in emergency systems
- Long service life with reliable insulation performance
3. Applications
This cable is widely used in:
- Fire alarm systems
- Emergency lighting systems
- High-rise buildings
- Hospitals and airports
- Underground facilities (metro, tunnels)
- Power distribution in fire-sensitive areas

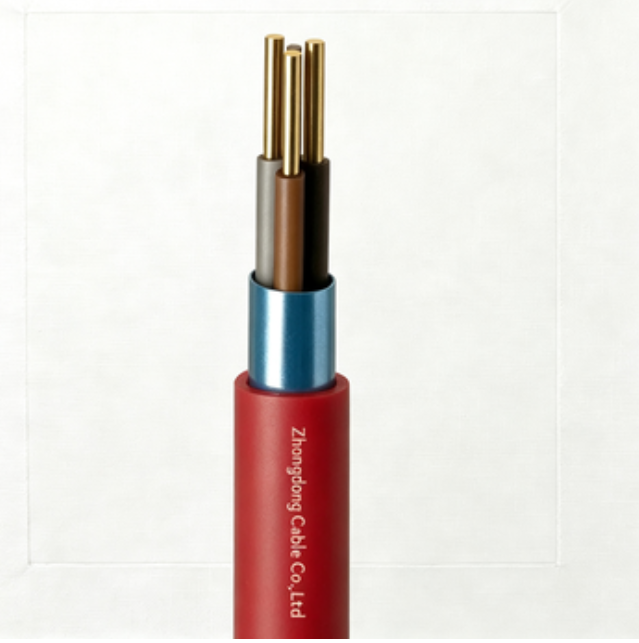

4. Construction
- Conductor: Plain annealed copper
- Fire-resistant layer: Mica tape wrapping
- Insulation: XLPE insulation
- Filler: Non-hygroscopic material
- Outer sheath: Flame retardant PVC or LSZH
5. Technical Specifications
| Item | Description |
|---|---|
| Rated Voltage | 0.6/1kV |
| Core Structure | 3+1 Core |
| Conductor | Copper, Class 1/2 (IEC 60228) |
| Insulation | XLPE (Fire Resistant Mica Tape optional) |
| Sheath | PVC / LSZH |
| Standard | IEC 60331, IEC 60502 |
| Temperature Rating | 90°C (normal), up to 250°C (short circuit) |
| Fire Performance | Circuit integrity ≥ 90 min |
6. Why Choose Us
- Direct cable manufacturer with stable supply capacity
- Competitive pricing for bulk orders
- Fast delivery time (15–25 days)
- Export experience in Africa, Middle East, Southeast Asia
- OEM & customized specifications available
FAQ
Q1: What is the difference between fire resistant and flame retardant cable?
Fire resistant cables maintain circuit integrity during fire, while flame retardant cables only delay flame spread.
Q2: Can this cable be used in underground installation?
Yes, but armored version is recommended for mechanical protection.
Q3: Do you support customized specifications?
Yes, we can customize conductor size, sheath material, and standards.
Q4: What is your MOQ?
MOQ depends on size
