Detail Information

Features:	Fire Rated	Insulation:	XLPE
Voltage:	3.6-35kV	Armoring:	AWA
Application:	Overhead Or Underground,Pipe Laying, Trench Laying, Tunnel Laying, Vertical Shaft And Bridge Laying	No Of Core:	1, 3

Product Description

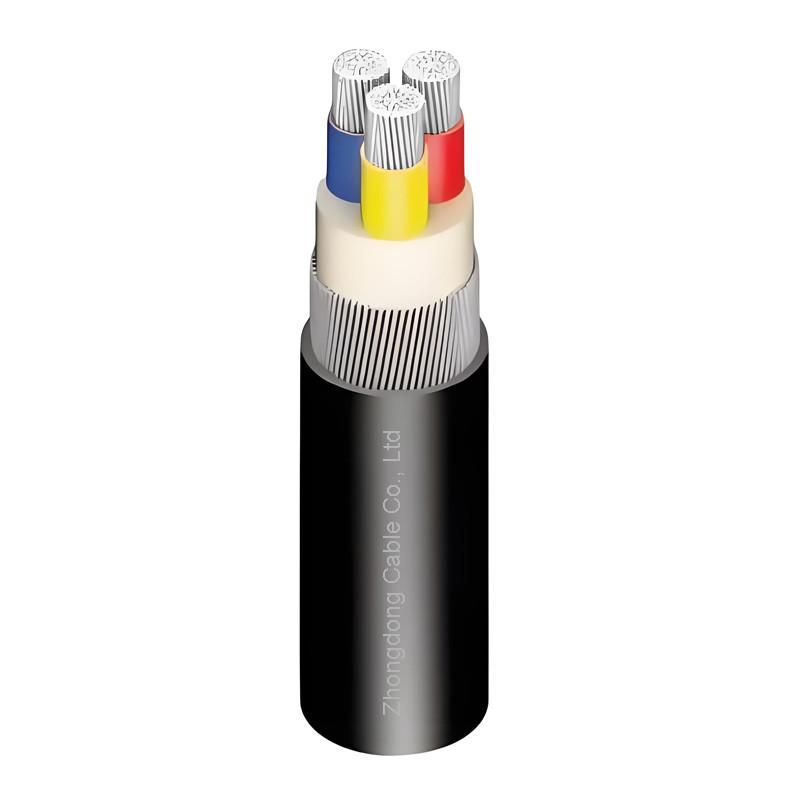

AWA Aluminium Wire Armored Flame-retardant Power Cable CU/XLPE/CTS/AWA

APPLICATION

Industrial Power Networks‌: Suitable for factories, mining sites, and heavy machinery due to its armored design (AWA) and flame-retardant properties‌
Commercial Buildings‌: Ensures safe power transmission in shopping malls, hospitals, and high-rises, where fire safety is critical‌
Harsh Environments‌: Resists physical damage and moisture, making it ideal for outdoor installations or areas with high mechanical stress

CONSTRUCTION

AWA Aluminium Wire Armored Flame-retardant Power Cable CU/XLPE/CTS/AWA 0

Voltage Rating Uo/U:3.8/6.6(7.2)kV, 6.35/11kV(12)kV, 8.7/15(17.5)kV, 12.7/22 (24)kV, 19/33(36)kV
Maximum operating temperature of conductor:+90℃
Operating ambient temperature: -15℃~+55℃
Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
Minimum Bending Radius: Single core:15D

Nominal cross- sectional area of conductor	Nominal diameter of conductor	Nominal thickness of XLPE insulation	Metallic Screening	Nominal diameter of aluminium wire	Nominal thickness of PVC sheath	Approximate overall diameter of cable	Approximate weight of cable
Nominal cross- sectional area of conductor	Nominal diameter of conductor	Nominal thickness of XLPE insulation	Approximate thickness of copper tape	Nominal diameter of aluminium wire	Nominal thickness of PVC sheath	Approximate overall diameter of cable	Copper	Aluminium
mm²	mm	mm	mm	mm	mm	mm	Kg/Km	Kg/Km
50 70 95	8.1 9.7 11.5	4.5 4.5 4.5	0.1 0.1 0.1	1.6 1.6 2.0	1.9 2.0 2.1	30 32 34	1401 1688 2111	1103 1257 1513
120 150 185	12.9 14.3 16.1	4.5 4.5 4.5	0.1 0.1 0.1	2.0 2.0 2.0	2.1 2.2 2.2	36 37 39	2412 2752 3188	1656 1824 2024
240 300 400	18.4 20.6 23.3	4.5 4.5 4.5	0.1 0.1 0.1	2.0 2.0 2.5	2.3 2.4 2.5	42 44 48	3875 4579 5709	2330 2640 3229
500 630 800	26.2 29.8 33.7	4.5 4.5 4.5	0.1 0.1 0.1	2.5 2.5 2.5	2.6 2.7 2.8	51 56 60	6849 8456 10362	3723 4400 5174

AWA Aluminium Wire Armored Flame-retardant Power Cable CU/XLPE/CTS/AWA 1

AWA Aluminium Wire Armored Flame-retardant Power Cable CU/XLPE/CTS/AWA 2

AWA Aluminium Wire Armored Flame-retardant Power Cable CU/XLPE/CTS/AWA 3

AWA Aluminium Wire Armored Flame-retardant Power Cable CU/XLPE/CTS/AWA 5

‌What is the function of the AWA armor?‌
AWA (Aluminium Wire Armor) provides mechanical protection against rodent bites, abrasion, and moisture ingress.‌
‌Is this cable suitable for flame-retardant applications?‌
Yes, it meets flame-retardant standards, reducing fire spread in high-risk areas like power plants or tunnels.‌
‌Can it be used outdoors?‌
Yes, the AWA armor and XLPE insulation make it resistant to UV, moisture, and extreme weather conditions.
‌How does the copper conductor compare to aluminum?‌
Copper offers lower resistivity and higher conductivity than aluminum, ensuring efficient power transmission with less energy loss.‌
‌What certifications should this cable comply with?‌
Look for international standards like IEC 60502, ensuring quality and safety for global deployment.
Where is this cable typically deployed?‌
Ideal for power distribution in buildings, substations, and industrial machinery due to its flame-retardant and armored properties.
