6.35/11kV & 12.7/22kV Non Screened ABC –Aerial Bundled Cables to AS NZS 3599.1 AL/XLPE/HDPE

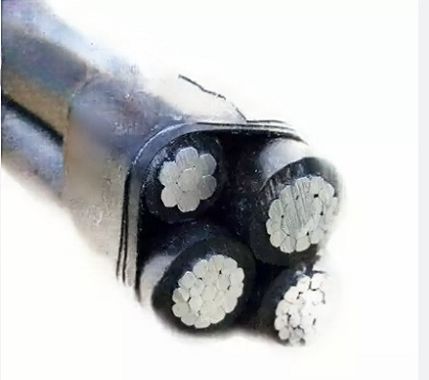

Large Image : 6.35/11kV & 12.7/22kV Non Screened ABC –Aerial Bundled Cables to AS NZS 3599.1 AL/XLPE/HDPE

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	CCC,ISO,TUV,CE
Model Number:	ABC

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Wooden Drum/ Steel Drum
Delivery Time:	7-30 days based on different qty
Payment Terms:	,L/C,T/T
Supply Ability:	100KM/Week

Contact Now

6.35/11kV & 12.7/22kV Non Screened ABC –Aerial Bundled Cables to AS NZS 3599.1 AL/XLPE/HDPE

Description

Application:	Overhead Distribution Line	Cores Nos:	1,2,3,4 More Multicore
Rated Voltage:	0.6/1 KV	Installation Degree:	-20℃-90℃
Neutral Messengers:	AAC Or ACSR	Insulation:	XLPE/PE/PVC

6.35/11kV & 12.7/22kV Non Screened ABC –Aerial Bundled Cables to AS NZS 3599.1 AL/XLPE/HDPE

Applicatiom

‌Primary/Secondary Distribution‌: Ideal for urban/rural electrification with ‌enhanced safety‌ (reduced outage risks).
‌Bare Transmission‌: Utilized as overhead conductors in high-voltage grids.
‌Hybrid Systems‌: Compatible with ‌ACSR (Aluminum Conductor Steel Reinforced)‌ for strength-optimized designs.

Characteristics

Rated Voltage: 0.6/1 Kv,6.35/11kV,12.7/22kV Up to 33KV
Number of Cores: 2-5 Core

Technical Advantages‌

‌Variable Steel Core Stranding‌: Balances mechanical strength (e.g., wind loading) and ‌ampacity‌ (current-carrying capacity).
‌Electrified Wire Netting‌: Integrates with smart grid infrastructure to improve ‌reliability‌ and fault detection.
‌Compliance‌: Meets AS/NZS 3599.1 standards for durability and performance in harsh environments.

Specification

number of cores x nominal cross section	Nominal conductor diameter	Nominal insulation thickness	Nominal insulation screen thickness	Nominal sheath thickness	AAAC/1120 support conductor size	Nominal overall diameter	Weight	Continuous current rating, A
number of cores x nominal cross section	Nominal conductor diameter	Nominal insulation thickness	Nominal insulation screen thickness	Nominal sheath thickness	AAAC/1120 support conductor size	Nominal overall diameter	Weight	Still air	1m/s wind	2m/s wind
mm^2	mm	mm	mm	mm	No/mm	mm	kg/km	A	A	A
6.35/11kV Aerial Bundled Cable
3x35	6.9	3.4	0.8	1.2	7/4.75	52.4	1370	110	155	185
3x50	8.1	3.4	0.8	1.2	7/4.75	54.6	1530	130	185	225
3x70	9.7	3.4	0.8	1.2	7/4.75	57.8	1790	160	235	280
3x95	11.4	3.4	0.8	1.2	7/4.75	61.3	2100	195	285	345
3x120	12.8	3.4	0.8	1.2	19/3.50	67.3	2540	230	335	405
3x150	14.2	3.4	0.8	1.2	19/3.50	70.1	2840	255	380	460
3x185	15.7	3.4	0.8	1.2	19/3.50	73.1	3190	295	440	530
12.7/22kV Aerial Bundled Cable
3x35	6.9	5.5	0.8	1.2	7/4.75	61	1780	110	155	180
3x50	8.1	5.5	0.8	1.2	7/4.75	63.3	1970	130	185	220
3x70	9.7	5.5	0.8	1.2	7/4.75	66.5	2260	160	230	275
3x95	11.4	5.5	0.8	1.2	7/4.75	69.9	2600	195	285	335
3x120	12.8	5.5	0.8	1.2	19/3.50	75.9	3070	225	330	395
3x150	14.2	5.5	0.8	1.2	19/3.50	78.7	3390	255	375	450
3x185	15.7	5.5	0.8	1.2	19/3.50	81.7	3760	290	435	520

Construction

Phase Conductor	Circular compacted stranded H68 aluminium to BS2627.
Conductor Screen	Extruded semi-conductive layer.
Insulation	XLPE.
Insulation Screen	Extruded semi-conductive layer.
Outer Sheath	HDPE.
Support Conductor	Aluminium alloy conductor (AAAC/1120).
Assembly	Three XLPE insulated cores are bundled around the AAAC/1120 support conductor in a right hand lay.

6.35/11kV & 12.7/22kV Non Screened ABC –Aerial Bundled Cables to AS NZS 3599.1 AL/XLPE/HDPE 0

ABOUT US

6.35/11kV & 12.7/22kV Non Screened ABC –Aerial Bundled Cables to AS NZS 3599.1 AL/XLPE/HDPE 3

Projects

6.35/11kV & 12.7/22kV Non Screened ABC –Aerial Bundled Cables to AS NZS 3599.1 AL/XLPE/HDPE 4

Partner

6.35/11kV & 12.7/22kV Non Screened ABC –Aerial Bundled Cables to AS NZS 3599.1 AL/XLPE/HDPE 5

Why US?

6.35/11kV & 12.7/22kV Non Screened ABC –Aerial Bundled Cables to AS NZS 3599.1 AL/XLPE/HDPE 7

FAQ

Q‌.Key advantages over standard ABC cables?‌

A. 60% higher span capacity (up to 300m spans), 30% reduced sag under load, Maintains ABC's safety with full insulation

Q‌. Typical applications?‌

A. River/valley crossings in rural electrification, Temporary power for construction sites, urban areas requiring compact line layouts

Q.Temperature rating?‌
A. Operates at -40°C to 90°C (95°C short-circuit tolerance), matching ACSR thermal properties

Q‌.Maintenance requirements?‌
A. Annual checks for: Corrosion at steel-aluminum interfaces, Insulation cracks (especially at suspension points), Neutral conductor integrity

Q‌. Cost comparison vs traditional options?‌

A. 20% cheaper than separate ACSR+ABC systems, 40% lower lifetime cost than bare ACSR (reduced maintenance)
