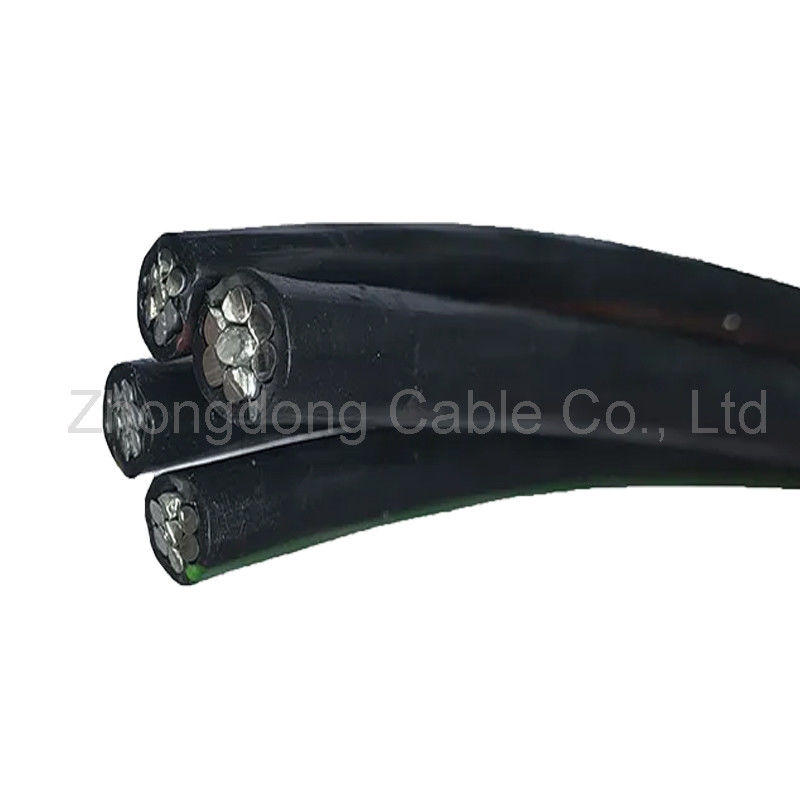

Aluminium Conductor 4 Core ABC Cable 4X16 4X25 4X35 4X50mm2 Low Voltage Cable
| Application: | Overhead Distribution Line | Cores Nos: | 1,2,3,4 More Multicore |
| Rated Voltage: | 0.6/1 KV | Installation Degree: | -20℃-90℃ |
| Neutral Messengers: | AAC, AAAC Or ACSR | Insulation: | XLPE/PE/PVC |
| High Light: | Aluminium Conductor 4 Core ABC Cable,4X50mm2 Low Voltage ABC Cable,4X35mm2 4 Core ABC Cable |
||
Aluminium Conductor Aerial Bundled Cable 4X16 4X25 4X35 4X50 mm2 4 Cores Low Voltage ABC Cable
Application:
Aerial Bundle Cable (ABC cable) is a very innovative concept for overhead power distribution as compared to the conventional bare conductor overhead distribution system. It provides higher level of safety and reliability, lower power losses and ultimate system economy by reducing installation, maintenance and operative cost. The cables are designed for aerial power lines and room-entrance wires with AC rated voltage 1kV and below.
Construction
-
Conductor: Aluminum (lightweight, cost-effective).
-
Insulation: XLPE (excellent thermal resistance, withstands temperatures up to 90°C).
-
Sheath: Typically low-smoke halogen-free (LSHF) compound for reduced toxicity and smoke emission during fires.
Specifications
|
Number of Cores x Nominal Cross Section
|
Overal Diameter
|
Weight
|
Maximum Conductor Resistance
|
Minimum Breaking Load
|
Current Rating
|
|
No.x mm^2
|
mm
|
Kg/Km
|
Ω/Km
|
KN
|
A
|
|
2x10 RM
|
12.8
|
93
|
3.08
|
1.5
|
38
|
|
4x10 RM
|
15.4
|
183
|
3.08
|
1.5
|
38
|
|
2x16 RM
|
14.8
|
129
|
1.91
|
2.3
|
72
|
|
2x16 RN + 2x1.5 RE
|
14.8
|
176
|
1.910/12.100
|
2.3
|
72
|
|
4x16 RM
|
17.8
|
257
|
1.91
|
2.3
|
72
|
|
4x16 RN + 2x1.5 RE
|
17.8
|
304
|
1.910/12.100
|
2.3
|
72
|
|
2x25 RM
|
18
|
202
|
1.2
|
3.8
|
107
|
|
2x25 RM + 2x1.5 RE
|
18
|
249
|
1.200/12.100
|
3.8
|
107
|
|
4x25 RM
|
21.7
|
404
|
1.2
|
3.8
|
107
|
|
4x25 RM + 2x1.5 RE
|
21.7
|
451
|
1.200/12.100
|
3.8
|
107
|
|
2x35 RM
|
20.8
|
269
|
0.868
|
5.2
|
132
|
|
2x35 RM + 2x1.5 RE
|
20.8
|
316
|
0.868/12.100
|
5.2
|
132
|
|
4x35 RM
|
25.1
|
539
|
0.868
|
5.2
|
132
|
|
4x35 RM + 2x1.5 RE
|
25.1
|
586
|
0.868/12.100
|
5.2
|
132
|
|
2x50 RM
|
23.4
|
352
|
0.641
|
7.6
|
165
|
|
2x50 RM + 2x1.5 RE
|
23.4
|
399
|
0.641/12.100
|
7.6
|
165
|
|
1x54.6 RM + 3x25 RM
|
21.7
|
507
|
0.630/1.200
|
3.8
|
107
|
|
1x54.6 RM + 3x25 RM + 1x16 RM
|
24.3
|
573
|
0.630/1.200/1.910
|
3.8/2.3
|
107/72
|
|
1x54.6 RM + 3x25 RM + 2x16 RM
|
29.7
|
639
|
0.630/1.200/1.910
|
3.8/2.3
|
107/72
|
|
1x54.6 RM + 3x25 RM + 3x16 RM
|
31.1
|
705
|
0.630/1.200/1.910
|
3.8/2.3
|
107/72
|
|
1x54.6 RM + 3x35 RM
|
25.1
|
615
|
0.630/0.868
|
5.2
|
132
|
|
1x54.6 RM + 3x35 RM + 1x16 RM
|
28.1
|
680
|
0.630/0.868/1.910
|
5.2/2.3
|
132/72
|
|
1x54.6 RM + 3x35 RM + 2x16 RM
|
34.3
|
748
|
0.630/0.868/1.910
|
5.2/2.3
|
132/72
|
|
1x54.6 RM + 3x35 RM + 3x16 RM
|
35.9
|
814
|
0.630/0.868/1.910
|
5.2/2.3
|
132/72
|
|
1x54.6 RM + 3x35 RM + 1x25 RM
|
28.1
|
714
|
0.630/0.868/1.200
|
5.2/3.8
|
132/107
|
|
1x54.6 RM + 3x50 RM
|
28.2
|
741
|
0.630/0.641
|
7.6
|
165
|
|
1x54.6 RM + 3x50 RM + 1x16 RM
|
31.6
|
806
|
0.630/0.641/1.910
|
7.6/2.3
|
165/72
|
|
1x54.6 RM + 3x50 RM + 2x16 RM
|
38.6
|
875
|
0.630/0.641/1.910
|
7.6/2.3
|
165/72
|
|
1x54.6 RM + 3x50 RM + 3x16 RM
|
40.4
|
940
|
0.630/0.641/1.910
|
7.6/2.3
|
165/72
|
|
1x54.6 RM + 3x50 RM + 1x25 RM
|
31.6
|
841
|
0.630/0.641/1.200
|
7.6/3.8
|
165/107
|
|
1x54.6 RM + 3x70 RM
|
33
|
950
|
0.630/0.443
|
10.2
|
205
|
|
1x54.6 RM + 3x70 RM + 1x16 RM
|
37
|
1014
|
0.630/0.443/1.910
|
10.2/2.3
|
205/72
|
|
1x54.6 RM + 3x70 RM + 2x16 RM
|
45.2
|
1083
|
0.630/0.443/1.910
|
10.2/2.3
|
205/72
|
|
1x54.6 RM + 3x70 RM + 3x16 RM
|
47.3
|
1148
|
0.630/0.443/1.910
|
10.2/2.3
|
205/72
|
|
1x54.6 RM + 3x70 RM + 1x25 RM
|
37
|
1048
|
0.630/0.443/1.200
|
10.2/3.8
|
205/107
|
|
1x54.6 RM + 3x70 RM + 2x25 RM
|
45.2
|
1150
|
0.630/0.443/1.200
|
10.2/3.8
|
205/107
|
|
1x54.6 RM + 3x70 RM + 3x25 RM
|
47.3
|
1250
|
0.630/0.443/1.200
|
10.2/3.8
|
205/107
|
|
1x54.6 RM + 3x95 RM
|
37.4
|
1176
|
0.630/0.320
|
13.5
|
240
|
|
1x54.6 RM + 3x95 RM + 1x16 RM
|
41.9
|
1243
|
0.630/0.320/1.910
|
13.5/2.3
|
240/72
|
-
