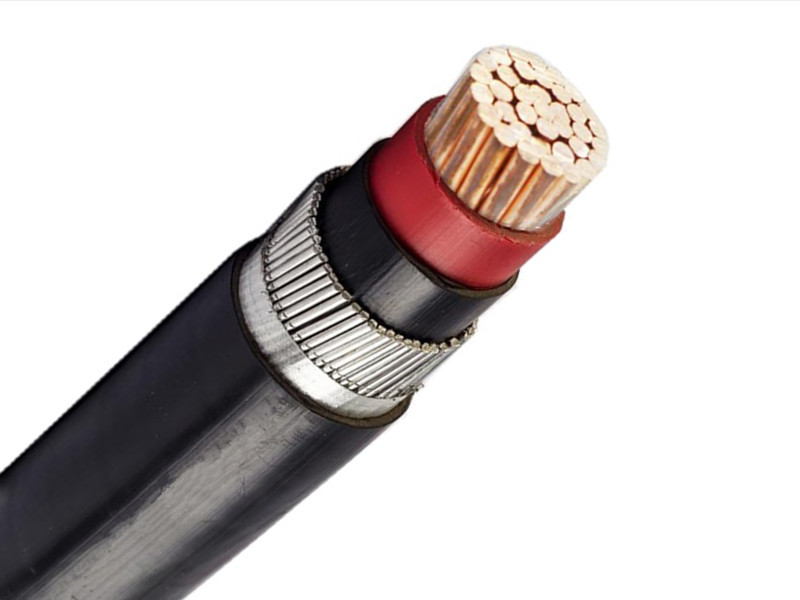

MV Medium Voltage Copper SWA Armoured Cable 8.7KV 15kV Armored Electrical Wire
| Armored: | Steel Wire | Sheath Material: | PVC |
| Insulation: | XLPE | Rated Voltage: | 8.7/15kV |
| Conductor: | Copper | No of Core: | 1,3 |
| High Light: | MV SWA Armoured Cable 8.7KV,Medium Voltage Armored Electrical Wire |
||
MV Medium Voltage Armoured Electrical Cable SWA 8.7/15kV Cu/XLPE/PVC/SWA
Construction
- Conductor: Circular compacted stranded Copper or aluminium
- Conductor screen: Extruded semi-conductive compound
- Insulation: XLPE
- Insulation screen: Extruded semi-conductive compound
- Metallic screen: Copper Wire
- Binder tape: non-hygroscopic material
- Inner covering(bedding): PVC
- Metallic armor: Galvanized steel tape
Application
Common applications include mining operations, oil and gas pipelines, offshore wind farms, and harsh outdoor or underground infrastructures (e.g., tunnels, bridges). SWA cables also serve in heavy-duty industrial plants, construction sites, and areas prone to rodent damage or external stress
Specification
YJV62 YJV22-8.7/15kV Cable Structure Parameters
|
Specs |
Conductor diameter |
Outer thickness of insulation |
Approx outer diameter of cable |
Approx cable weight |
|
Specs |
Conductor diameter |
Outer thickness of insulation |
Approx outer diameter of cable |
Approx cable weight |
|
1×25 |
6.0±0.1 |
17.6 |
24.5 |
942 |
3×25 |
6.0±0.1 |
17.6 |
48.2 |
3159 |
|
|
1×35 |
6.6±0.2 |
18.2 |
25.3 |
1059 |
3×35 |
6.6±0.2 |
18.2 |
49.7 |
3517 |
|
|
1×50 |
7.6±0.2 |
19.2 |
26.3 |
1208 |
3×50 |
7.6±0.2 |
19.2 |
52.2 |
4046 |
|
|
1×70 |
9.2±0.2 |
20.8 |
28.0 |
1472 |
3×70 |
9.2±0.2 |
20.8 |
55.8 |
4881 |
|
|
1×95 |
10.9±0.2 |
22.5 |
29.7 |
1775 |
3×95 |
10.9±0.2 |
22.5 |
60.0 |
5933 |
|
|
1×120 |
12.2±0.2 |
23.8 |
31.2 |
2059 |
3×120 |
12.2±0.2 |
23.8 |
63.1 |
6855 |
|
|
1×150 |
13.6±0.2 |
252 |
32.6 |
2360 |
3×150 |
13.6±0.2 |
25.2 |
66.3 |
7850 |
|
|
1×185 |
15.2±0.2 |
26.8 |
35.7 |
3094 |
3×185 |
15.2±0.2 |
26.8 |
70.1 |
9159 |
|
|
1×240 |
17.4±0.2 |
29.0 |
38.0 |
3724 |
3×240 |
17.4±0.2 |
29.0 |
75.4 |
11143 |
|
|
1×300 |
19.5±0.2 |
31.1 |
40.3 |
4391 |
3×300 |
19.5±0.2 |
31.1 |
81.6 |
14020 |
|
|
1×400 |
22.0±0.2 |
33.6 |
43.2 |
5286 |
3×400 |
22.0±0.2 |
33.6 |
87.5 |
16824 |
|
|
1×500 |
24.8±0.2 |
372 |
47.1 |
6484 |
3×500 |
24.8±0.2 |
37.2 |
95.8 |
20603 |
|
|
1×630 |
28.2±0.2 |
40.6 |
50.7 |
7950 |
3×630 |
28.2±0.2 |
40.6 |
104.0 |
25361 |
|
|
1×800 |
34.0±0.2 |
46.4 |
56.8 |
10041 |
|
|
|
|
|
