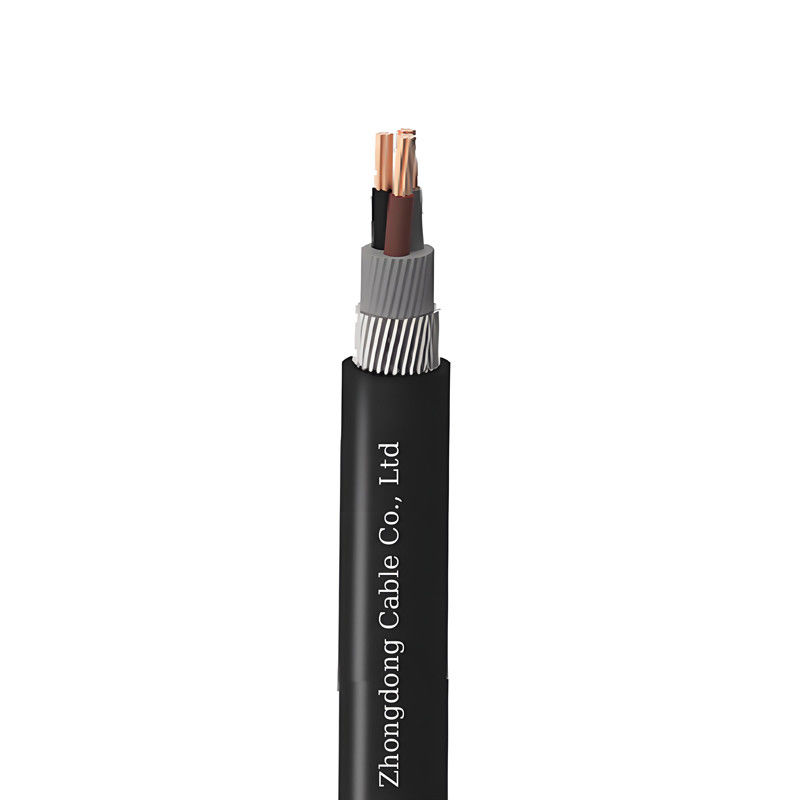

IEC 60502 STA Armoured Electrical Cable Three Core For Underground Use
| Voltage: | 600V, 1000V | Standard: | IEC60502 |
| Armour: | Steel Tape | No of core: | 3 |
| Application: | Underground | Insulation: | XLPE |
| High Light: | Underground Use Armoured Electrical Cable,IEC 60502 3 Core Underground Cable,IEC 60502 STA Armoured Electrical Cable |
||
IEC 60502 STA Armoured Electrical Cable Three Core for underground use
Application
PVC power cable for static outdoor application (with protection against direct UV-irradiation), in ground, in water, within facilities, in cable canals, in concrete, in conditions where heavier mechanical loads and specially tensile strains, are not expected. Used in electric power plants, transformer stations, industrial plants, metropolitan networks and in other electric plants, same as for connection of signalling devices in industry, traffic and similar.
Construction
- Conductor:Circular, solid, compacted or sector shaped stranded Copper or aluminum
- Insulation:PVC
- Filler: Non-hygroscopic material
- Inner sheath: PVC
- Armouring: Steel Tape Armoured
- Outer Sheath PVC
Technical data:
- Test Voltage: 3.5kV 5min No Breakdown
- The ambient temperature for installation: ≥0℃.
- Maximum conductor temperature in normal operation:≤90℃.
- Max operating temperature of con. When cable short-circuited(5s maximum duration): 250℃.
- Permissible minimum bending radius:
- Single unarmoured cable: 20 x OD
- Multi-core unarmoured cable: 15 x OD
- Single armoured cable: 5 x OD
- Multi-core armoured cable: 12 x OD
- Note : OD=Overall Diameter of Cable
Specification
|
Nominal section area |
Approx. overall diameter |
Approx. weight of cable |
Maximum DC resistance of the conductor |
||
|
mm2 |
mm |
kg/km |
Ω/km |
||
|
|
|
Cu |
Al |
20℃ Cu |
20℃ Al |
|
3×1.5 RE |
12.4 |
252.3 |
– |
12.1 |
– |
|
3×2.5 RE |
13.3 |
300.7 |
254 |
7.41 |
12.1 |
|
3×4 RE |
15.2 |
394.5 |
319.9 |
4.61 |
7.41 |
|
3×6 RE |
16.3 |
487 |
375.1 |
3.08 |
4.61 |
|
3×10 CC |
18.5 |
663.2 |
476.7 |
1.83 |
3.08 |
|
3×16 CC |
20.7 |
901.8 |
603.3 |
1.15 |
1.91 |
|
3×25 CC |
24.1 |
1250.7 |
784.3 |
0.727 |
1.2 |
|
3×35 CC |
26.3 |
1578.1 |
925.2 |
0.524 |
0.868 |
|
3×50 SM |
25.8 |
1997.4 |
1064.7 |
0.387 |
0.641 |
|
3×70 SM |
29 |
2635.8 |
1330 |
0.268 |
0.443 |
|
3×95 SM |
34.2 |
3799.8 |
2027.6 |
0.193 |
0.32 |
|
3×120 SM |
37.6 |
4620.3 |
2381.9 |
0.153 |
0.253 |
|
3×150 SM |
41.9 |
5661.4 |
2863.4 |
0.124 |
0.206 |
|
3×185 SM |
46.8 |
6965.8 |
3514.9 |
0.0991 |
0.164 |
|
3×240 SM |
52 |
8782.1 |
4305.2 |
0.0754 |
0.125 |
|
3×300 SM |
57.3 |
10747.9 |
5151.8 |
0.0601 |
0.1 |
