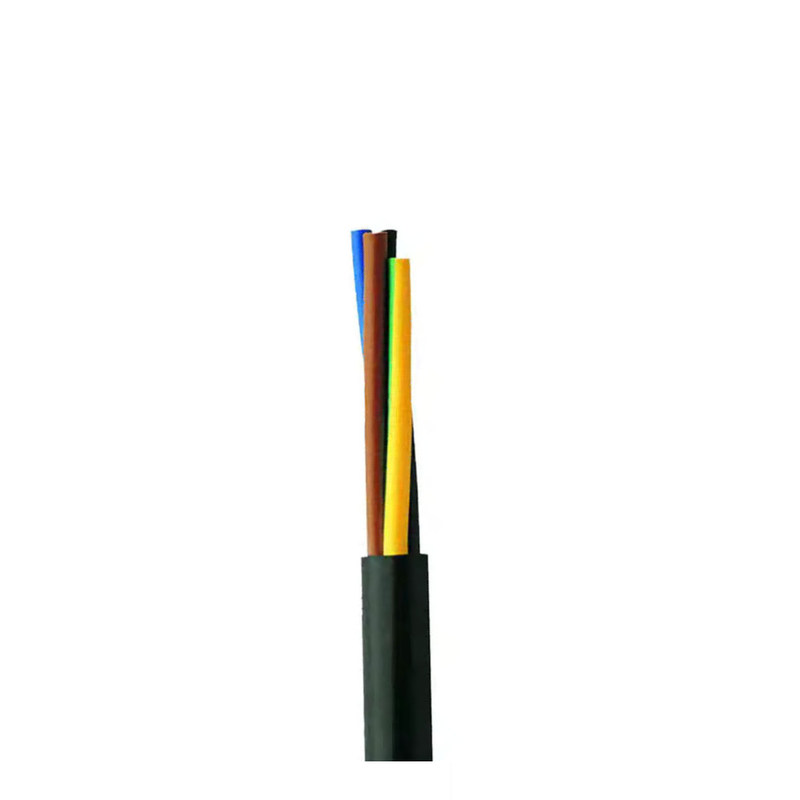

NYM-J Copper Conductor Flexible Electrical Wire PVC Insulation 300V 500V
| Application: | Electric Buliding Wire | Conductor Material: | Copper |
| Insulation Material: | PVC | Voltage: | 300/500V 450/750V |
| Color: | Black /Red Or As Your Requirement | Number of cores: | 1core ,2 Cores ,3 Cores ,as Your Request |
| High Light: | NYM-J Copper Conductor Electrical Wire,PVC Insulation Flexible Electrical Wire,500V Copper Conductor Electrical Wire |
||
NYM-J Copper Conductor Electrical Wire PVC Insulation 300/500V
Application
NYM-J cable is primarily used in fixed electrical installations where safety and durability are critical.
- Residential Buildings: Wiring for lighting, sockets, and switches.
- Commercial Buildings: Electrical distribution in offices, shops, and small industrial facilities.
- Conduit or Trunking Installations: Suitable for installation inside walls, conduits, or cable trays.
- Dry and Moist Environments: Can be used in both dry and moderately damp conditions (but not suitable for direct burial or outdoor exposure without additional protection).
Structure
- Conductor: Copper (multi-core or single-core).
- Insulation: PVC (polyvinyl chloride) for each core.
- Outer Sheath: PVC for overall protection.
- Earth Conductor: Includes a separate yellow-green grounding wire for safety.
Advantages
- Compliance: Meets European electrical standards (e.g., DIN VDE).
- Ease of Installation: Designed for straightforward installation in fixed setups.
- Cost-Effective: Provides a balance between performance and cost for indoor electrical systems.
Standard
- GB 5023.11997 , JB 8734.15-1998, Q/ZEL 02-2002, GB 5023.17-1997, IEC227
- BV/BLV is General purpose single-core hard CU/AL conductor non-sheath cable.
- Rated voltage:300/500v 450/750v
| Nominal | Conductor | Nominal | Max overall | Condcutor | Min insulated | Weight | ||
| sectional area | No/Dia. | Insulated thick | Dia. | Resistance at | resistance at | Kg/km | ||
| mm2 | mm | mm | mm | 20 | 70MΩ/km | |||
| Cu | Al | Cu | Al | |||||
| 1.5 | 1/1.38 | 0.7 | 3.3 | 12.1 | - | 0.011 | 19.2 | - |
| 1.5 | 7/0.52 | 0.7 | 3.5 | 12.1 | - | 0.01 | 20.6 | - |
| 2.5 | 1/1.78 | 0.8 | 3.9 | 7.41 | 11.8 | 0.01 | 30.8 | 15 |
| 4 | 1/2.25 | 0.8 | 4.4 | 4.61 | 7.39 | 0.0085 | 45.5 | 21 |
| 6 | 1/2.76 | 0.8 | 4.9 | 3.08 | 4.91 | 0.007 | 65 | 29 |
| 10mm | 7/1.35 | 1 | 7 | 1.83 | 3.08 | 0.0065 | 110 | 52 |
| 16 | 7/1.70 | 1 | 8 | 1.15 | 1.91 | 0.005 | 170 | 70 |
| 25 | 7/2.14 | 1.2 | 10 | 0.727 | 1.2 | 0.005 | 270 | 110 |
| 35 | 7/2.52 | 1.2 | 11.5 | 0.524 | 0.868 | 0.004 | 364 | 150 |
| 50 | 19/1.78 | 1.4 | 13 | 0.387 | 0.641 | 0.0045 | 500 | 200 |
| 70 | 19/2.14 | 1.4 | 15 | 0.268 | 0.443 | 0.0035 | 688 | 269 |
| 95 | 19/2.52 | 1.6 | 17.5 | 0.193 | 0.32 | 0.0035 | 953 | 360 |
| 120 | 37/2.03 | 1.6 | 19 | 0.153 | 0.253 | 0.0032 | 1168 | 449 |
| 150 | 37/2.25 | 1.8 | 21 | 0.124 | 0.206 | 0.0032 | 1466 | 551 |
| 185 | 37/2.52 | 2 | 32.5 | 0.099 | 0.164 | 0.0032 | 1808 |
668 |
