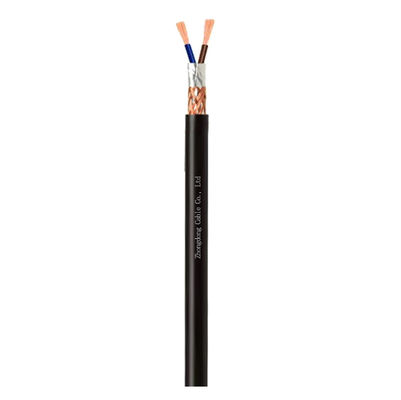

Tinned Copper Flexible Stranded Electrical Wire 2X12 AWG 2 Core Cable
| Conductor Type: | Stranded | Rated Voltage: | 300/500v, 450/750v |
| Application: | Residential/Commercial | Keywords: | Earth Cable, Ground Wire |
| Material: | Copper | Color: | Customizable |
| High Light: | tinned copper stranded electrical wire,2x12 AWG flexible cable,2 core electrical wire with warranty |
||
Tinned Copper Flexible Stranded Electrical Wire 2X12 AWG 2 Core Cable
APPLICATION
- Industrial equipment requiring high flexibility and durability, such as robotic arms and automated machinery.
- Power distribution systems where corrosion resistance is critical, especially in marine or humid environments
- Renewable energy installations (e.g., solar panel arrays) due to its excellent conductivity and tinned oxidation resistance.
CONSTRUCTION AND SEPCIFICATION
- Conductor Material: Tinned Copper (Flexible Stranded)
- Number of Conductors: 102 strands
- Insulation: PVC
- Strand Diameter: 0.20 mm
- Shielding Layer: Polyester Tape + Aluminum Foil
- Flat Cable Specification: 10 strands × 0.20 mm
- Braid Layer: 128 strands × 0.10 mm
FACTORY
PROJECT
WHY US
PACKAGE
FAQ
Q: Why is the conductor tinned?
A: Tin plating prevents oxidation, ensuring long-term reliability in humid or corrosive environments
Q: What temperature range can this cable withstand?
A: Operates stably from -40°C to 105°C (or up to 200°C with silicone insulation)
Q: Is the cable suitable for high-voltage applications?
A: Rated for 300V with a test voltage of 2000V, meeting industrial safety standards
Q: How does the stranded design benefit performance?
A: Enhances flexibility, reducing wire breakage during repeated bending or vibration
Q: Can this cable be used in marine environments?
A: Yes, tinned copper resists saltwater corrosion, making it suitable for marine applications
Q: What is the conductor resistance per unit length?
A: Approximately 9.8 ohms per 1,000 meters for 12 AWG tinned copper
Q: How should the cable be terminated?
A: Tin-plated strands improve solderability; use crimping or soldering for secure connections
