Detail Information

Voltage:	0.6/1kV	Insulation:	XLPE
Sheath:	PVC	Conductor:	Copper
Standard:	Spanish Standard	Usage:	Industrial Cables

Product Description

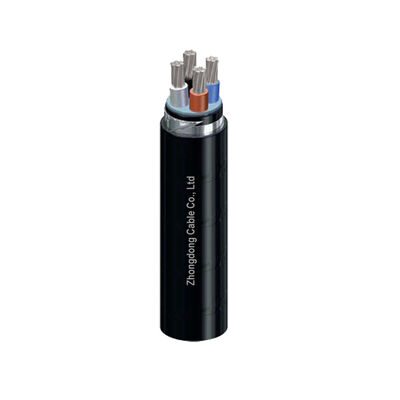

4 Core STA Armoured Power Cable 0.6/1kV AL Conductor NAYBY

APPLICATION

The 4 core STA (Steel Tape Armoured) aluminium conductor power cable (NAYBY) is mainly used for low voltage power distribution systems with a rated voltage of 0.6/1kV. It is suitable for transmitting and distributing electrical energy in both industrial and urban networks.

CONSTRUCTION

Type: NAYBY

Conductor: Aluminium (AL)

Insulation: PVC

Armoured: Steel Tape Armoured(STA)

Sheath: PVC

CHARACTERISTIC

Rated voltage: 0.6/1 kV

Standard: IEC 60502-1

Temperature range: -15°C to +90°C (operation), up to 250°C (short circuit)

SPECIFICATION

Specs mm²	Conductor diameter mm	Nominal thickness of insulation mm	Lining thickness mm	Nominal thickness of steel tape mm	Nominal thickness of sheath mm	Approximate outer diameter of cable mm	Approximate cable weight kg/km
4×1.5	1.38	0.8	1.0	0.2	1.8	14.7	313
4×2.5	1.78	0.8	1.0	0.2	1.8	15.6	374
4×4	2.25	1.0	1.0	0.2	1.8	17.8	499
4×6	2.76	1.0	1.0	0.2	1.8	19.0	607
4×10	4.0	1.0	1.0	0.2	1.8	22.0	834
4×16	5.0	1.0	1.0	0.2	1.8	24.4	1118
4×25	6.1	1.2	1.0	0.2	1.8	28.3	1595
4×35	7.2	1.2	1.0	0.2	1.9	31.1	2039
4×50	8.4	1.4	1.2	0.2	2.0	35.6	2688
4×70	10.0	1.4	1.2	0.5	2.2	41.2	3998
4×95	12.0	1.6	1.4	0.5	2.4	47.9	5375
4×120	13.0	1.6	1.4	0.5	2.5	50.5	6404
4×150	14.9	1.8	1.4	0.5	2.6	56.3	7802
4×185	16.5	2.0	1.6	0.5	2.8	62.0	9552
4×240	18.4	2.2	1.6	0.5	3.0	68.0	12108
4×300	21.0	2.4	1.6	0.5	3.2	75.7	14927
4×400	23.4	2.6	1.8	0.8	3.6	84.9	19620

4 Core STA Armoured Power Cable 0.6/1kV AL Conductor NAYBY 1

4 Core STA Armoured Power Cable 0.6/1kV AL Conductor NAYBY 2

4 Core STA Armoured Power Cable 0.6/1kV AL Conductor NAYBY 3

4 Core STA Armoured Power Cable 0.6/1kV AL Conductor NAYBY 4

1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.Welcome to visit us.

2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.

3. What’s your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.You'd better order a suitable quantity to avoid the high freight.Sea transportation is the best option.

4. what services can we provide?
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

5. Does your company accept OEM production?

Yes, could print your company name, we even custom the quality card to promote your company
