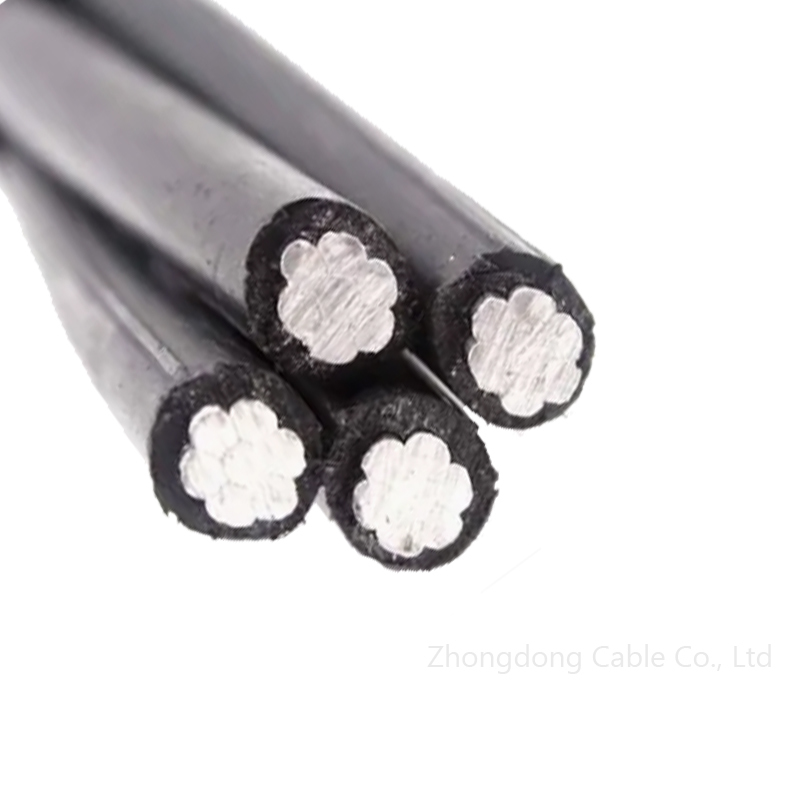

NF C 33-209 Certified Aerial Bundled Cable XLPE Insulated 0.6/1kV 3x150+1x95
| Application: | Overhead Distribution Line | Cores Nos: | 1,2,3,4 More Multicore |
| Rated Voltage: | 0.6/1kV | Installation Degree: | -20℃-90℃ |
| Neutral Messengers: | AAC, AAAC Or ACSR | Insulation: | PE/PVC |
| High Light: | NF C 33-209 certified ABC cable,XLPE insulated aerial bundled cable,0.6/1kV ABC cable with warranty |
||
NF C 33-209 Certified Aerial Bundled Cable XLPE Insulated 0.6/1kV 3x150+1x95
Application
Primarily used for overhead service applications such as street lighting, outdoor lighting, and temporary service for construction. To be used at voltages of 0.6/1kV and at conductor temperatures not to exceed 90°C for cross-linked polyethylene (XLPE) insulated conductors.
Construction
Conductor: Stranded, circular compacted, circular compressed AAC or AAAC.
Insulation: Cross-linked polyethylene (XLPE), black color, weather and UV resistant
Phase or public lighting conductor: Circular compacted aluminum
Neutral conductor: Circular or compacted aluminum-alloy
Pilot conductor: Solid, plain copper conductor (1.5mm²)
Insulation: Cross-linked polyethylene (XLPE), black color, weather and UV resistant
Note: All cores are insulated.
Standard
NF C 33-209
Specification
|
No of cores and section |
No of wires |
NominaI ,nsuIation Thickness |
Approx Diameter of cabIe |
Max Dc Resistance at 20℃ |
Approx weight |
|||
|
phase |
NeutraI |
phase |
NeutraI |
phase |
NeutraI |
|||
|
mm |
No |
No |
mm |
mm |
mm |
Ω/km |
Ω/km |
kg/km |
|
1x25+1x54.6 |
7 |
7 |
1.4 |
1.6 |
21.3 |
1.20 |
0.63 |
309 |
|
1x35+1x54.6 |
7 |
7 |
1.6 |
1.6 |
22.7 |
0.868 |
0.63 |
345 |
|
1x50+1x54.6 |
7 |
7 |
1.6 |
1.6 |
23.8 |
0.641 |
0.63 |
384 |
|
1x70+1x54.6 |
12 |
7 |
1.8 |
1.6 |
25.9 |
0.443 |
0.63 |
456 |
|
1x95+1x54.6 |
19 |
7 |
1.8 |
1.6 |
27.7 |
0.320 |
0.63 |
537 |
|
1x70+1x70 |
12 |
7 |
1.8 |
1.6 |
26.7 |
0.443 |
0.50 |
491 |
|
1x95+1x70 |
19 |
7 |
1.8 |
1.6 |
28.5 |
0.320 |
0.50 |
571 |
|
1x120+1x70 |
19 |
7 |
1.8 |
1.6 |
29.7 |
0.253 |
0.50 |
643 |
|
1x120+1x95 |
19 |
19 |
1.8 |
1.6 |
31.9 |
0.253 |
0.343 |
737 |
|
1x150+1x95 |
19 |
19 |
1.8 |
1.6 |
33.6 |
0.206 |
0.343 |
819 |
|
3x25+1x54.6 |
7 |
7 |
1.4 |
1.6 |
23.5 |
1.20 |
0.63 |
508 |
|
3x35+1x54.6 |
7 |
7 |
1.6 |
1.6 |
26.1 |
0.868 |
0.63 |
619 |
|
3x50+1x54.6 |
7 |
7 |
1.6 |
1.6 |
28.1 |
0.641 |
0.63 |
733 |
|
3x70+1x54.6 |
12 |
7 |
1.8 |
1.6 |
31.9 |
0.443 |
0.63 |
951 |
|
3x95+1x54.6 |
19 |
7 |
1.8 |
1.6 |
35.2 |
0.320 |
0.63 |
1192 |
|
3x70+1x70 |
12 |
7 |
1.8 |
1.6 |
32.4 |
0.443 |
0.50 |
986 |
|
3x95+1x70 |
19 |
7 |
1.8 |
1.6 |
35.6 |
0.320 |
0.50 |
1227 |
|
3x120+1x70 |
19 |
7 |
1.8 |
1.6 |
37.8 |
0.253 |
0.50 |
1441 |
|
3x120+1x95 |
19 |
19 |
1.8 |
1.6 |
39.1 |
0.253 |
0.343 |
1536 |
|
3x150+1x95 |
19 |
19 |
1.8 |
1.6 |
42.2 |
0.206 |
0.343 |
1779 |
Contact us for more details
FAQ
1.What is our payment term?
Our payment term is T/T 30% advanced, then the balance paid before picking up the goods or L/C at sight.
2.What is the lead time?
The lead time usually is 7– 30 working days.
3.What is the package of the cable?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirement.
4.Could we provide the free sample for customer?
Sure, we provide the free sample for customer to checking.
Yes, could print your company name.
-
