Detail Information

Application:	Construction	Sheath:	Rubber
Insulation Options:	PVC, Rubber, Or EPR	Metric Cross-Sections:	10mm² To 240mm²
Conductor Material:	Copper	Color:	Black, Orange, Red, Etc.

Product Description

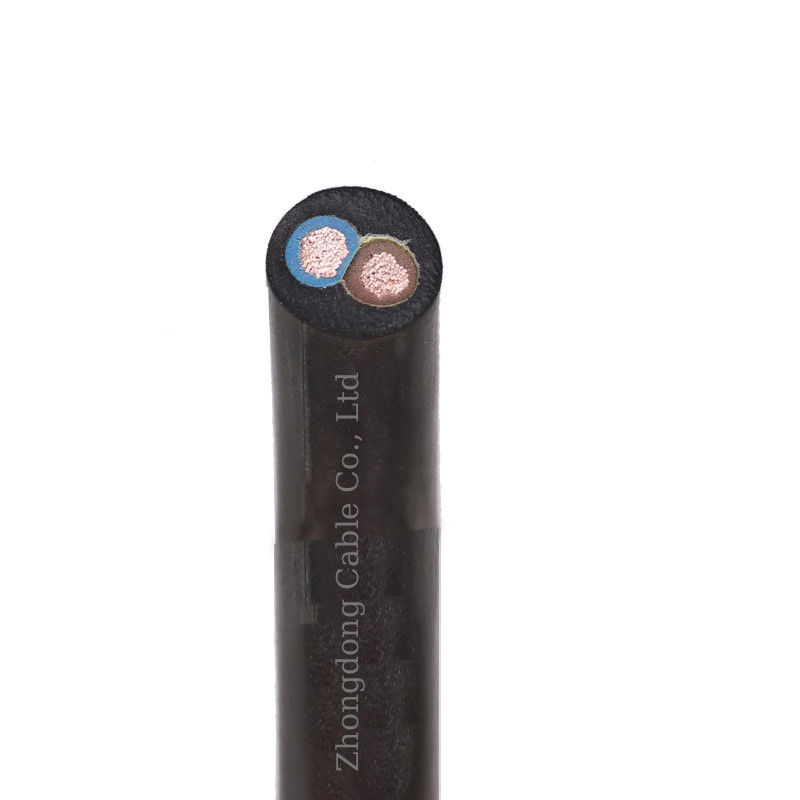

450/750V Flexible Rubber Cable H07RN-F/H05RN-F for Building Construction

Name: 450/750V Flexible Rubber Cable H07RN-F/H05RN-F for Building Construction
Brand: Zhongdong Cable Co., Ltd.
SKU: Flexible Cable
Availability: InStock

APPLICATION

The cables are designed to provide high flexibility and have the capacity to withstand weather,oil/grease, mechanical and thermal stresses. Applications include handling equipment, mobile power supplies, worksites, stage and audio visual equipment,port areas and dams. Also for use in drainage and water treatment, cold environments and severe industrial environment

CONSTRUCTION

1. Conductor : Class 5 flexible plain copper conductor
2. Insulation : EPR(Ethylene Propylene Rubber)
3. Sheath : PCP(Polychioroprene)

450/750V Flexible Rubber Cable H07RN-F/H05RN-F for Building Construction 0

TECHNICAL DATA

H07RN-F model rated voltage U0/U IS 450/750V

H05RN-F model rated voltage U0/U IS 300/500V

H05RR-F model rated voltage U0/U IS 300/500V

Long time allow working temperature of wire core cant be higher than 60C

SPECIFICATION

Cross- sectional Area (mm²)	No.& diameter of wire (N/mm)	Reference overall diameter (mm)	Reference weight (kg/km)	Resistance at 20℃ Max
Cross- sectional Area (mm²)	No.& diameter of wire (N/mm)	Reference overall diameter (mm)	Reference weight (kg/km)	Copper core	Tin plated copper core
2x1.5	30/0.25	9.4	116	13.3	13.7
2x2.5	50/0.25	11.0	166	7.98	8.21
2x4.0	80/0.25	12.8	232	4.95	5.09
2x6.0	119/0.25	14.2	291	3.3	3.39
2x10	200/0.25	19.0	534	1.91	1.95
2x16	315/0.25	21.6	740	1.21	1.24
2x25	350/0.3	25.7	1057	0.78	0.795
2x35	494/0.3	28.6	1368	0.554	0.565
2x50	684/0.3	33.2	1881	0.386	0.393
2x70	969/0.3	37.1	2457	0.272	0.277
2x95	1330/0.3	42.3	3270	0.206	0.21
3x1.5	30/0.25	10.1	141	13.3	13.7
3x2.5	50/0.25	11.8	203	7.98	8.21
3x4.0	80/0.25	13.7	286	4.95	5.09
3x6.0	119/0.25	15.2	374	3.3	3.39
3x10	200/0.25	20.4	665	1.91	1.95
3x16	315/0.25	23.2	905	1.21	1.24
3x25	350/0.3	27.5	1334	0.78	0.795
3x35	494/0.3	30.7	1740	0.554	0.565
3x50	684/0.3	35.5	2397	0.386	0.393
3x70	969/0.3	39.7	3155	0.272	0.277
3×95	1330/0.3	45.5	4230	0.206	0.21
3x120	1691/0.3	49.3	5120	0.161	0.164

450/750V Flexible Rubber Cable H07RN-F/H05RN-F for Building Construction 1

450/750V Flexible Rubber Cable H07RN-F/H05RN-F for Building Construction 2

450/750V Flexible Rubber Cable H07RN-F/H05RN-F for Building Construction 3

450/750V Flexible Rubber Cable H07RN-F/H05RN-F for Building Construction 4

450/750V Flexible Rubber Cable H07RN-F/H05RN-F for Building Construction 5

‌FAQ

Q: What cables do you make?

A: Power, control, communication, overhead & custom industrial cables.

Q: Are your cables up to global standards?

A: Yes—compliant with IEC, UL & CE for worldwide quality.

Q: Can I get custom cables?

A: Sure! OEM/ODM services for specs, lengths & materials.

Q: What’s your MOQ?

A: 100m for standard cables; flexible terms for custom orders.

Q: How long is production time?

A: 7–14 days (standard); 15–25 days (customized).

Q: How do you ensure quality?

A: Full-process checks—raw materials to conductivity & durability tests.

Q: Can I get free samples?

A: Free samples for qualified customers (freight collect).
