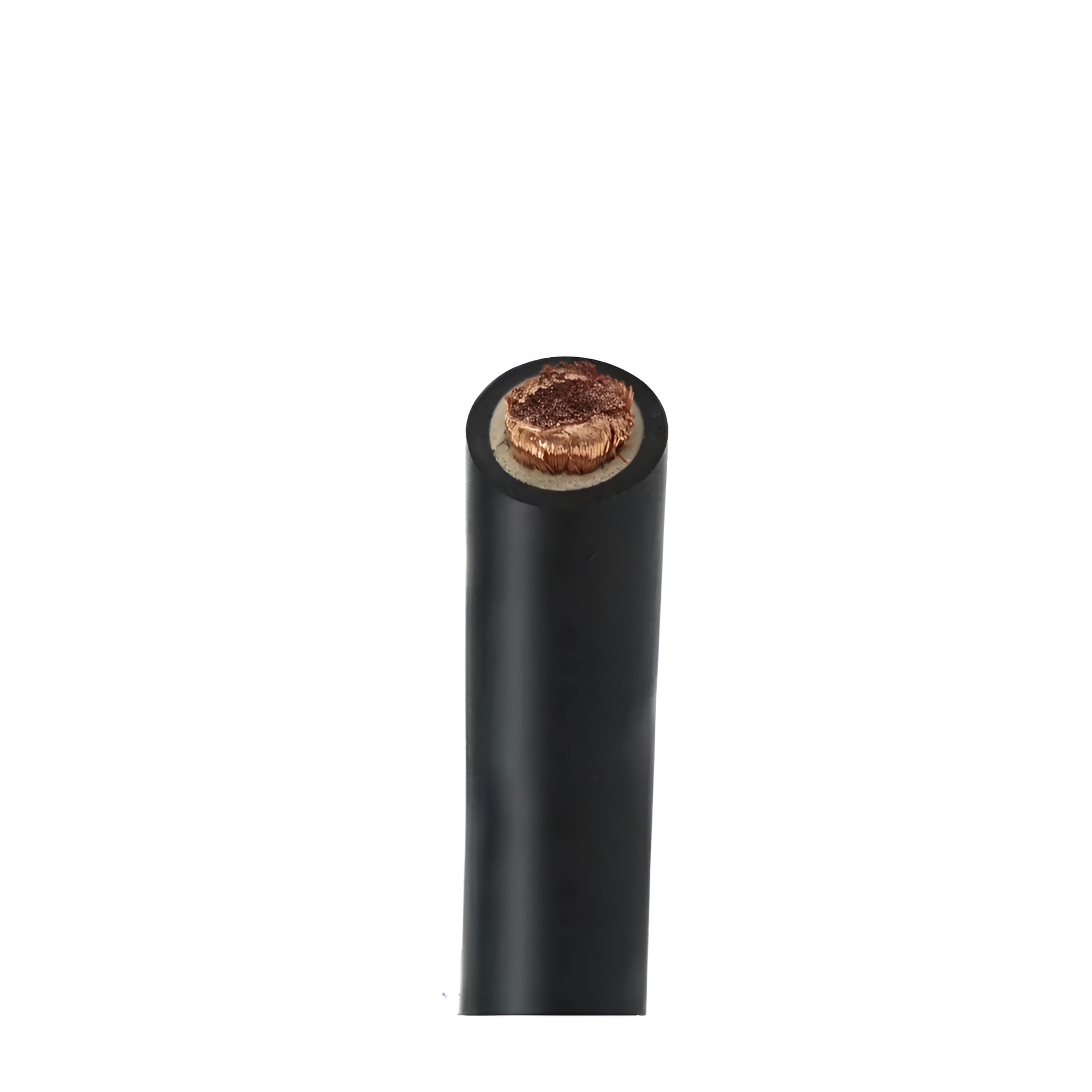

Name: H07RN-F Rubber Cable 1.5mm²-630mm² 450/750V EN 60228
Brand: Zhongdong Cable Co., Ltd.
SKU: Flexible Cable
Availability: InStock

Detail Information

Application:	Construction	Sheath:	Rubber
Metric Cross-Sections:	1.5mm² To 630mm²	Conductor Material:	Copper
Color:	Black, Orange, Red, Etc.
Highlight:	H07RN-F rubber cable 450/750V , flexible rubber cable EN 60228 , industrial rubber cable 1.5mm²-630mm²

Product Description

Flexible Rubber Cable 1.5mm-630mm H07RN-F H05RN-F EN 60228:2005

APPLICATION

H07RN-F Cable Applications

Industrial Machinery: Suitable for power supply in construction equipment, cranes, and metallurgical machinery, especially in environments requiring frequent movement or mechanical stress
Outdoor & Harsh Conditions: Designed for use in ports, ship decks, and agricultural machinery, offering resistance to weather, oil, UV radiation, and chemical corrosion
Temporary Installations: Ideal for construction sites, stage lighting, and temporary power supply in residential or military camps
Safety Compliance: Meets EN50525-3-14 standards, RoHS certification, and flame-retardant requirements

H05RN-F Cable Applications

Light Industrial Use: Primarily for indoor or light-duty outdoor applications, such as handheld tools, small appliances, and LED lighting (e.g., garden lights, pool lights)
Fixed Installations: Used in dry or damp indoor environments, including temporary wiring for residential or commercial buildings
Flexibility & Safety: Features natural rubber insulation for flexibility and complies with VDE 0293 standards for low-voltage applications

CONSTRUCTION

Conductor: Class 5 flexible plain copper to BS EN 60228:2005 (previously BS6360)
Insulation: EPR (Ethylene Propylene Rubber) Type E14 to BS7655
Sheath: PCP (Polychloroprene) Type EM3 to BS7655
Sheath Color: Black

TECHNICAL DATA

Minimum bending radius: 4 to 8 x outer diameter (EN 50565-1)
Nominal voltage: U0/U: 300/500 V
Test voltage: 2000 V
Temperature range: Fixed installation: -25°C up to +60°C
Occasionally moved: -25°C bis +60°C

SPECIFICATION

HAR Code	IEC	Description	Voltage Design	Cores
H05RR-F	60245IEC 53(YZ)/YZ	Ordinary rubber sheathed cord	300/500V	2~6
H05RN-F	60245 IEC 57(YZW)/YZW	Ordinary polychloroprene or other equivalent synthetic elastomer sheathed cord	300/500V	2~6
H07RN-F	60245 IEC 66(YCW)/YC	Heavy polychloroprene or other equivalent synthetic elastomer sheathed flexible cable	450/750V	1~5, 3+1/3+2/4+1
H01N2-D	60245 IEC 81(YH)	Rubber sheathed arc-welding electrode cable	100/100V	10-120
60245 IEC 82(YHF)		Polychloroprene or other equivalent synthetic elastomer sheathed arc-welding electrode cable	100/100V	10-120

PRODUCTION LINE

OUR WAREHOUSE

OUR PROJECTS

OUR CLIENTS

FAQ

What are the key differences between H07RN-F and H05RN-F cables?

H07RN-F (450/750V) is designed for higher voltage and mechanical stress compared to H05RN-F (300/500V), with enhanced rubber insulation for industrial environments.

Where are these cables typically used?

Ideal for construction sites, stage equipment, and portable tools due to their oil/weather resistance and flexibility in -40°C to 90°C temperatures.

Can they be used for fixed installations?

Yes, H07RN-F supports fixed installations up to 1000V AC with protective measures per IEC 60364-5-52.

What conductor materials are used?

Bare copper or tinned copper conductors complying with VDE 0295 Class 5 for flexibility.

How to identify cable cores?

Black cores with white numbering for phase identification; 3+ core cables include a green-yellow earth wire.

What's the minimum bending radius?

Approximately 4 times the outer diameter (4D) to avoid damage.

Are these cables UV-resistant?

Yes, rubber (EM2) provides excellent UV and ozone resistance for outdoor use.

Can they be used in damp environments?

Designed for both dry/wet conditions, including temporary buildings and wastewater systems.

How to order customized lengths?

Available in 100m rolls or custom lengths, with options for core counts.

Tag:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	CCC,ISO,CE,TUV,IEC
Model Number:	Flexible Cable

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Wooden drum
Delivery Time:	10Days
Payment Terms:	L/C,T/T
Supply Ability:	100KM/Week
