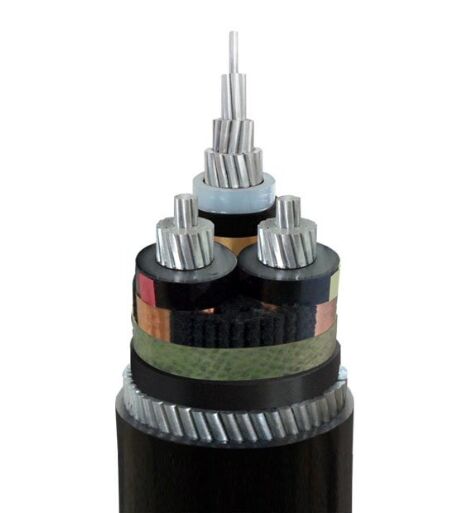

1.5mm2 SWA Armoured Cable 3.6-35kV AL/XLPE/CWS/CTS/SWA/PVC for Power Distribution

Specs
mm²

Conductor diameter
mm

Outer thickness of insulation
±1.0mm

Approx outer diameter of cable
mm

Approx cable weight
kg/km

Specs
mm²

Conductor diameter
mm

Outer thickness of insulation
±1.0mm

Approx outer diameter of cable
mm

Approx cable weight
kg/km

1×35

6.6±0.2

20.0

27.8

965

3×35

6.6±0.2

20.0

54.7

3330

1×50

7.6±0.2

21.0

28.8

1066

3×50

7.6±0.2

21.0

57.2

3729

1×70

9.2±0.2

22.6

30.6

1203

3×70

9.2±0.2

22.6

60.8

4182

1×95

10.9±0.2

24.3

32.3

1340

3×95

10.9±02

243

64.8

4713

1×120

12.2±0.2

25.6

33.8

1483

3×120

12.2±0.2

256

67.9

5214

1×150

13.6±0.2

27.0

36.5

1955

3×150

13.6±0.2

27.0

71.2

5730

1×185

15.2±0.2

28.6

38.2

2164

3×185

15.2±0.2

286

75.1

6434

1×240

17.4±0.2

30.8

40.6

2455

3×240

17.4±0.2

30.8

81.6

8171

1×300

19.5±0.2

32.9

43.1

2773

3×300

19.5±0.2

329

86.5

9175

1×400

220±0.2

35.4

45.7

3217

3×400

22.0±0.2

354

92.5

10735

1×500

24.8±0.2

39.0

49.7

3750

3×500

24.8±0.2

39.0

100.8

12512

1×630

282±0.2

42.4

53.4

4360

3×630

28.2±0.2

42.4

108.7

14530

1×800

34.0±0.2

48.2

59.4

5192
