Detail Information

Features:	Fire Rated	Insulation:	XLPE
Voltage:	3.6-35kV	Armoring:	AWA
Application:	Overhead Or Underground,Pipe Laying, Trench Laying, Tunnel Laying, Vertical Shaft And Bridge Laying	No Of Core:	1, 3
Highlight:	SWA Flame Retardant Power Cable , Flame Retardant Armoured Power Cable , SWA Armoured Power Cable

Product Description

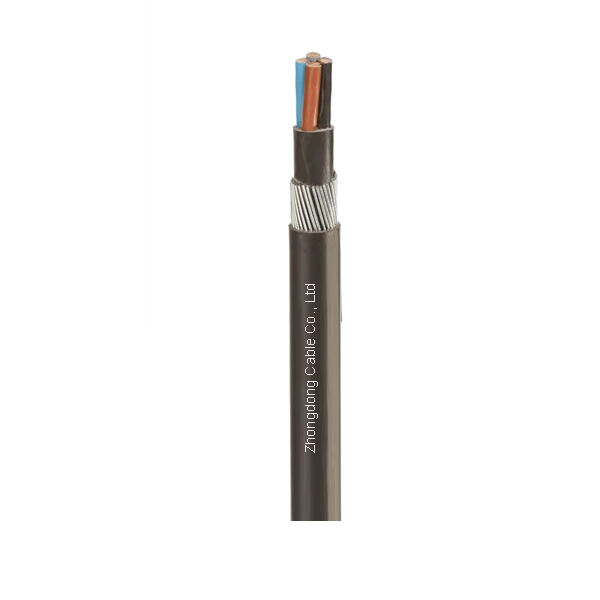

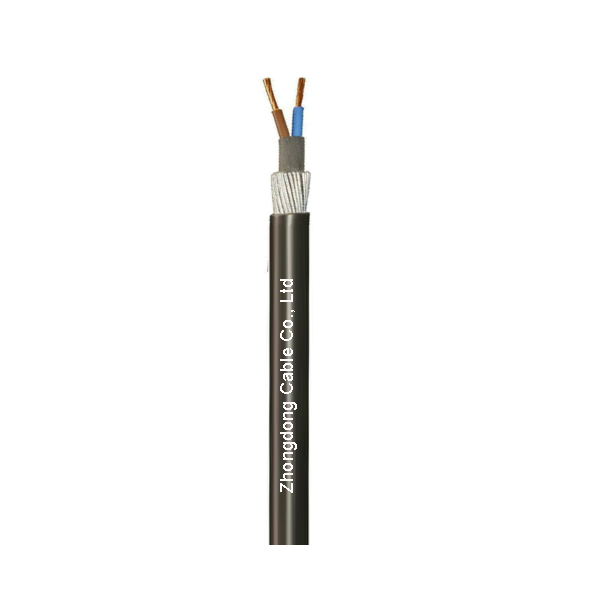

Flame Retardant Armoured Power Cable CU/XLPE/AWA/SWA/PE for Power Transmission

APPLICATION

Flame Retardant Armoured Power Cable CU/XLPE/AWA/SWA/PE for Power Transmission‌ is a high-performance cable designed for safe and reliable power transmission in demanding environments

CONSTRUCTION

Conductor:Class 1/Class 2 stranded Copper conductor

Refractory layer:Single sided gold mica tape

Insulation:XLPE

Filler(options):Polypropylene mesh tear rope or flame-retardant filling

Inner Sheath:Polyvinyl chloride (PVC) or flame - retardant polyvinyl chloride

Armoring:Aluminum wire or stainless steel wire (single-core, 73) Galvanized steel wire (multi-core,33)

Outer sheath:Polyethylene (PE)

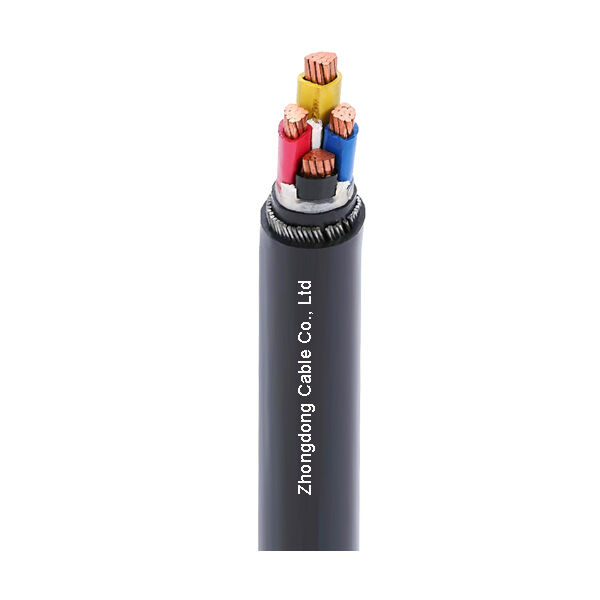

Flame Retardant Armoured Power Cable CU/XLPE/AWA/SWA/PE for Power Transmission 0

CHARACTERISTICS

Voltage Rating Uo/U:0.6/1kV
Maximum operating temperature of conductor:+90℃
Operating ambient temperature: -15℃~+55℃
Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
Minimum Bending Radius: Single core:Single core:15D Multi Core: 12D

SPECIFICATIONS

Spec mm²	Conductor diameter mm		Approx outer diameter of cable mm				Approx cable weight kg/km
Spec mm²	Main wire	Earth wire	NH	ZAN	ZBN	ZCN	NH	ZAN	ZBN	ZCN
1×10	4	/	12.6	12.6	12.6	12.6	336.4	347.4	347.4	347.4
1×16	5	/	13.6	13.6	13.6	13.6	417.6	430.6	430.6	430.6
1×25	5.59	/	14.6	14.6	14.6	14.6	528.8	539.6	539.6	539.6
1×35	6.62	/	15.6	15.6	15.6	15.6	639.0	655.9	655.9	655.9
1×50	7.65	/	18.0	18.0	18.0	18.0	922.0	941.5	935.9	935.9
1×70	9.21	/	20.0	19.7	19.7	19.7	1176.0	1205.1	1198.9	1198.9
1×95	10.78	/	21.8	21.5	21.5	21.5	1476.0	1498.9	1491.7	1491.7
1×120	12.12	/	24.2	23.9	23.9	23.9	1909.6	1930.4	1921.9	1921.9
1×150	13.69	/	26.5	25.9	25.9	25.9	2262.7	2282.0	2272.8	2272.8
1×185	15.21	/	28.6	28.0	28.0	28.0	2700.3	2707.6	2697.0	2697.0
1×240	17.4	/	31.2	30.6	30.6	30.6	3326.7	3355.6	3343.4	3343.4
1×300	19.55	/	33.5	32.9	32.9	32.9	3974.4	4008.2	3995.0	3995.0
1×400	22.05	/	37.9	37.3	37.3	37.3	5152.5	5220.3	5203.8	5203.8
1×500	25	/	41.4	40.8	40.8	40.8	6354.2	6405.4	6386.4	6386.4
1×630	28.4	/	45.4	44.8	44.8	44.8	7854.1	7915.5	7893.6	7893.6
2×1.5	1.37	/	13.9	14.1	14.5	14.1	314.4	344.5	357.8	344.5
2×2.5	1.75	/	14.6	14.9	15.2	14.9	355.7	388.7	402.5	388.7
2×4	2.22	/	15.5	15.7	16.1	15.7	408.3	444.5	459.0	444.5
2×6	2.74	/	16.5	16.8	17.1	16.8	478.5	518.8	534.2	518.8
2×10	4	/	20.8	21.1	21.1	21.1	812.1	882.7	882.7	874.9
2×16	5	/	22.8	23.1	23.1	23.1	1005.7	1076.1	1076.1	1067.5
2×25	5.59	/	25.8	25.8	25.8	25.8	1414.0	1489.7	1489.7	1480.0
2×35	6.62	/	27.9	27.9	27.9	27.9	1693.3	1779.8	1779.8	1769.3
2×50	7.65	/	30.3	30.3	30.3	30.3	2049.7	2261.1	2138.6	2138.6
2×70	9.21	/	34.2	34.2	34.2	34.2	2647.5	2922.2	2756.3	2756.3
2×95	10.78	/	38.7	38.7	38.7	38.7	3600.9	3949.2	3739.7	3739.7
2×120	12.12	/	41.9	41.9	41.9	41.9	4243.7	4660.1	4403.5	4403.5
2×150	13.69	/	46.1	46.1	46.1	46.1	5040.0	5553.3	5228.8	5228.8
2×185	15.21	/	51.7	51.7	51.7	51.7	6514.4	7121.2	6748.4	6748.4
2×240	17.4	/	56.8	56.8	56.8	56.8	7992.5	8739.8	8268.6	8268.6
2×300	19.55	/	62.0	62.0	62.0	62.0	9560.4	10476.5	9898.4	9898.4
2×400	22.05	/	68.4	68.4	68.4	68.4	11611.0	12736.1	12009.9	12009.9
3×1.5	1.37	/	14.4	14.7	15.0	14.7	347.3	378.4	391.8	378.4
3×2.5	1.75	/	15.2	15.5	15.8	15.5	398.4	432.3	446.4	432.3
3×4	2.22	/	16.2	16.4	16.8	16.4	469.7	506.9	521.6	506.9
3×6	2.74	/	17.3	17.5	17.9	17.5	559.9	601.2	616.7	601.2
3×10	4	/	21.8	22.1	22.1	22.1	945.2	1017.1	1017.1	1008.9
3×16	5	/	24.0	24.3	24.3	24.3	1205.0	1276.6	1276.6	1267.5
3×25	5.59	/	27.2	27.2	27.2	27.2	1718.6	1795.0	1795.0	1784.8
3×35	6.62	/	29.4	29.4	29.4	29.4	2086.7	2173.8	2173.8	2162.7

OUR FACTORY

Flame Retardant Armoured Power Cable CU/XLPE/AWA/SWA/PE for Power Transmission 2

PROJECTS

Flame Retardant Armoured Power Cable CU/XLPE/AWA/SWA/PE for Power Transmission 3

PARTNERS

Flame Retardant Armoured Power Cable CU/XLPE/AWA/SWA/PE for Power Transmission 4

WHY US

Flame Retardant Armoured Power Cable CU/XLPE/AWA/SWA/PE for Power Transmission 6

FAQ

What types of cable products does your company primarily manufacture?
We specialize in the production of various types of power cables, control cables, communication cables, and specialty cables, including but not limited to PVC-insulated cables, XLPE power cables, mining cables, marine cables, and photovoltaic cables.
Which international standards do your products comply with?
Our products comply with various international standards, such as IEC, BS, UL, ASTM, GB, etc., depending on the product type. We can provide products compliant with different international standards.
What quality certifications do you hold?
We have obtained ISO and CCC quality management system certifications, and some products have also obtained international certifications. We can also apply for specific certifications based on customer requirements.
What is the delivery lead time?
Standard products are typically in stock and can be shipped within 7-15 days. Customized products require 15-45 days depending on quantity.
Do you accept customized products?
We provide OEM and ODM service, we can customize cable products according to customer's special requirements, including specifications, colors, packaging and so on.
