Single Core AWA Armoured Cable Medium Voltage up to 36kV for Urban Power Grids
| Features: | Fire Rated | Insulation: | XLPE |
| Voltage: | 0.6/1kV | Conductor Material: | Copper |
| Application: | Overhead Or Underground,Pipe Laying, Trench Laying, Tunnel Laying, Vertical Shaft And Bridge Laying | No of Core: | 1,2,3,4,5 |
| High Light: | Aluminium Wire Armored power cable,Flame-retardant AWA cable,XLPE insulated armoured cable |
||

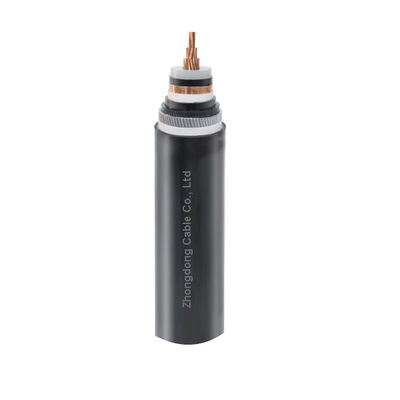

Single Core AWA Armoured Cable Medium Voltage up to 36kV for Urban Power Grids
APPLICATION
Single Core AWA (Aluminium Wire Armoured) Medium Voltage Cable is engineered with a lightweight aluminium wire armour layer, delivering excellent mechanical protection, corrosion
resistance and flexible installation performance. Designed for medium voltage systems typically ranging from 3.6/6 kV to 26/35 kV, it is widely deployed in the following critical
scenarios:
- Urban power grids (underground/duct installation)
- Industrial plants (heavy equipment power supply)
- High-rises & data centres (vertical routing)
- Infrastructure (airports, metro, seaports)
- Renewable energy systems (solar/wind grid connection)
CONSTRUCTION
- Conductor: Compacted conductors
- Conductor Shield:Semi conductive shielding material (below 500mm2)
- Insulation: Polyvinyl chloride (PVC)
- Insulation Shield:Peelable semiconducting shielding material
- Metal Shield Layer:Copper Tape
- Filler:Polypropylene(PP) mesh filling rope
- Binder Tape:Non hygroscopic straps
- Armouring:Aluminium Wire
- Outer sheath:90℃ Polyvinyl chloride (PVC) or PE
CHARACTERISTICS
- Voltage Rating Uo/U:3.8/6.6(7.2)kV, 6.35/11kV(12)kV, 8.7/15(17.5)kV, 12.7/22 (24)kV, 19/33(36)kV
- Maximum operating temperature of conductor:+90℃
- Operating ambient temperature: -15℃~+55℃
- Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
- Minimum Bending Radius: Single core:15D
SPECIFICATIONS
|
Nominal |
Nominal |
Nominal |
Metallic |
Nominal |
Nominal |
Approximate |
Approximate weight of cable |
|
|
Approximate |
Copper |
Aluminium |
||||||
|
mm² |
mm |
mm |
mm |
mm |
mm |
mm |
Kg/Km |
Kg/Km |
|
50 70 95 |
8.1 9.7 11.5 |
4.5 4.5 4.5 |
0.1 0.1 0.1 |
1.6 1.6 2.0 |
1.9 2.0 2.1 |
30 32 34 |
1401 1688 2111 |
1103 1257 1513 |
|
120 |
12.9 |
4.5 |
0.1 |
2.0 |
2.1 |
36 |
2412 2752 3188 |
1656 |
|
240 |
18.4 |
4.5 |
0.1 |
2.0 |
2.3 |
42 |
3875 4579 5709 |
2330 |
|
500 |
26.2 |
4.5 |
0.1 |
2.5 |
2.6 |
51 |
6849 8456 10362 |
3723 |
Contact us for more details
