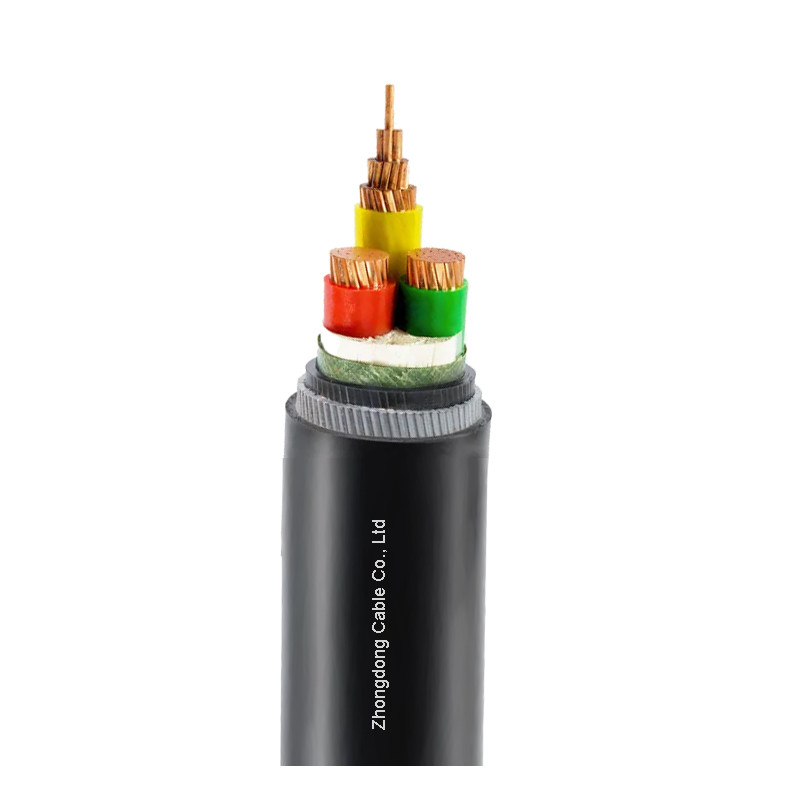

IEC 60502 Standard PVC Insulated Cable Steel Wire Armoured PVC Sheathed NYRY VV32
| Voltage: | 0.6/ 1kV | Armoring: | No |
| Insulation: | PVC | Core: | Multi Cores |
| Temperature range: | - 30℃ To + 70℃ | Sheathed: | PVC |
| High Light: | PVC insulated power cable with steel wire armour,IEC 60502 standard power cable,NYRY VV32 PVC sheathed cable |
||
IEC 60502 Standard PVC Insulated Cable Steel Wire Armoured PVC Sheathed NYRY VV32
APPLICATION
This product is suitable for power transmission and distribution in lines with AC 50Hz and rated voltage not exceeding 0.6/1kV.
CONSTRUCTION
- Conductor: Class 1/Class 2 stranded Copper conductor
- Insulation: Polyvinyl chloride (PVC)
- Filler(options): Polypropylene mesh tearing rope
- Inner sheath:Polyvinyl chloride (PVC)
- Armour: Aluminum wire or stainless steel wire(single core)galvanized steel wire(multi core)
- Outer sheath: Polyvinyl chloride (PVC)
STANDARD
GB/T 12706.1,IEC 60502-1
CHARACTERISTIC
- Voltage Rating: Uo/U:0.6/1kV Um:1.2kV
- Maximum operating temperature of conductor:+70℃
- Operating ambient temperature: -20℃~+45℃
- Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
- Minimum Bending Radius: Single core:15D multi core:12D
SPECIFICATIONS
|
Specs |
Conductor diameter |
Nominal thickness of insulation |
Lining thickness |
Nominal thickness of steel wire |
Nominal thickness of sheath |
Approximate outer diameter of cable |
Approximate cable weight |
|
3×1.5 |
1.38 |
0.8 |
1 |
0.8 |
1.8 |
15.1 |
376 |
|
3×2.5 |
1.78 |
0.8 |
1 |
0.8 |
1.8 |
15.9 |
432 |
|
3×4 |
2.25 |
1 |
1 |
1.25 |
1.8 |
18.8 |
680 |
|
3×6 |
2.76 |
1 |
1 |
1.25 |
1.8 |
19.8 |
776 |
|
3×10 |
4 |
1 |
1 |
1.25 |
1.8 |
22.5 |
1009 |
|
3×16 |
5 |
1 |
1 |
1.25 |
1.8 |
24.6 |
1265 |
|
3×25 |
6.1 |
1.2 |
1 |
1.6 |
1.8 |
28.6 |
1855 |
|
3×35 |
7.2 |
1.2 |
1 |
1.6 |
1.8 |
31.2 |
2248 |
|
3×50 |
8.4 |
1.4 |
1 |
1.6 |
2 |
35.1 |
2835 |
|
3×70 |
10 |
1.4 |
1.2 |
2 |
2.1 |
40.2 |
3962 |
|
3×95 |
12 |
1.6 |
1.2 |
2 |
2.2 |
45.6 |
5070 |
|
3×120 |
13 |
1.6 |
1.2 |
2 |
2.3 |
47.9 |
5923 |
|
3×150 |
14.9 |
1.8 |
1.4 |
2.5 |
2.5 |
54.7 |
7676 |
|
3×185 |
16.5 |
2 |
1.4 |
2.5 |
2.7 |
59.5 |
9116 |
|
3×240 |
18.4 |
2.2 |
1.6 |
2.5 |
2.9 |
65.3 |
11289 |
|
3×300 |
21 |
2.4 |
1.6 |
2.5 |
3.1 |
72.2 |
13681 |
|
3×400 |
23.4 |
2.6 |
1.8 |
3.15 |
3.4 |
80.6 |
17764 |
OUR FACTORY
PROJECTS
FAQ
Q. Where are SWA-PVC cables typically used?
A. Suitable for:
Underground direct burial (with drainage)
Industrial plants with mechanical stress
Hazardous environments (e.g., chemical exposure)
Q. How does steel wire armour enhance cable performance?
A. Mechanical protection: Resists crushing, rodent damage, and impact.
Grounding: Acts as an earth continuity conductor in some designs
Q. What are the temperature limits for SWA-PVC cables?
A. Operating range: -15°C to +70°C (PVC insulation)
Max conductor temperature: 70°C under continuous load
Q. Are SWA-PVC cables flame-retardant?
A. Standard versions comply with IEC 60332-1 (flame propagation test). For higher requirements, choose LSZH (Low Smoke Zero Halogen) variant
Q.. How to calculate bending radius during installation?
A. Minimum bending radius = 12× cable diameter to avoid armour deformation
Q.. Can SWA-PVC cables be installed in wet conditions?
A. Yes, provided the outer sheath is intact. For submerged use, ensure IP68-rated joints and anti-corrosion armour
Q. What standards apply to SWA-PVC cables?
A. International: IEC 60502-1
Regional: BS 5467 (UK), UL 4 (US)
