300/500V PVC Insulation Abrasion Resistant PUR Sheathed Cables PUR -JZ Flexible Control Cable

Basic Properties
Place of Origin: Hebei，China
Brand Name: PVC Insulated Power Cable
Certification: IEC,CE,ISO,TUV
Model Number: NYY-J
Trading Properties
Minimum Order Quantity: Negotiable
Price: Negotiable
Payment Terms: L/C,T/T
Supply Ability: 100KM/Week
Tags

PVC Insulated Cable

PVC Power Cable

PVC Insulated Industrial Cables
Specifications
Voltage: 0.6/ 1kV Armoring: No
Insulation: PVC Core: Multi Cores
Temperature range: - 30℃ To + 70℃ Sheathed: PVC
High Light:

300/500V PVC insulated control cable

,

abrasion resistant PUR sheathed cable

,

flexible PUR-JZ power cable
Product Description

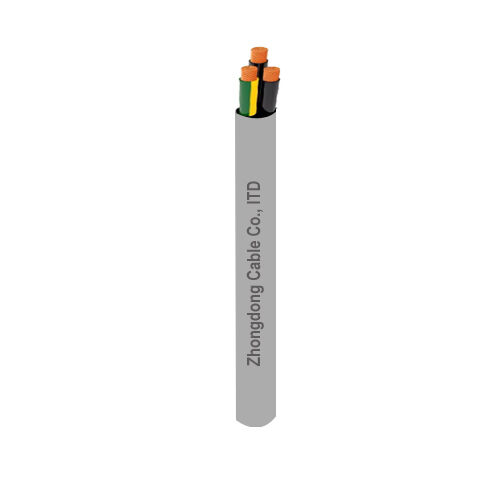

300/500V PVC Insulation Abrasion Resistant PUR Sheathed Cables PUR -JZ Flexible Control Cable


Application

The cabes are well-suited for use in machine manufacturing, tool production, plant engineering, and the steel industry—especially in challenging or problem-prone areas.

Details

Material:
stranded bare copper, stranding as per VDE 0295, class 5
Insulation:
Material: PVC
Core identification:number coded black cores with white numbers + green/yellow,
Sheath: PUR grey RAL 7001 or other colour.
Voltage: 300/500V
Test voltage: 3000V
Operating temperatue range: -50C to +80C flexing ;-40C to +90C fixed
Minimum bending radius: 12-15 x cable diameter.

Specifications

NO. of Cores
Cross Section(mm2)
Outer Diameter(mm)
Copper Weight(kg/100m)
Weight (kg/100m)
CCL-CT-PURJZ-2C0.50SQ
2
0.5
5
0.96
3.7
CCL-CT-PURJZ-3C0.50SQ
3
0.5
5.3
1.44
4.5
CCL-CT-PURJZ-4C0.50SQ
4
0.5
5.7
1.92
5.3
CCL-CT-PURJZ-5C0.50SQ
5
0.5
6.5
2.4
6.3
CCL-CT-PURJZ-7C0.50SQ
7
0.5
7
3.4
7.9
CCL-CT-PURJZ-10C0.50SQ
10
0.5
9
4.8
11.5
CCL-CT-PURJZ-12C0.50SQ
12
0.5
9.5
5.76
12.9
CCL-CT-PURJZ-18C0.50SQ
18
0.5
11.2
8.7
18.8
CCL-CT-PURJZ-25C0.50SQ
25
0.5
13.5
12
25.5
CCL-CT-PURJZ-34C0.50SQ
34
0.5
15.2
16.4
35.3
CCL-CT-PURJZ-41C0.50SQ
41
0.5
16.6
19.7
40.9
CCL-CT-PURJZ-2C0.75SQ
2
0.75
5.9
1.44
5.5
CCL-CT-PURJZ-3C0.75SQ
3
0.75
6.2
2.16
7.2
CCL-CT-PURJZ-4C0.75SQ
4
0.75
7.2
2.88
7.5
CCL-CT-PURJZ-5C0.75SQ
5
0.75
7.8
3.6
11.9
CCL-CT-PURJZ-7C0.75SQ
7
0.75
8.5
5
12.1
CCL-CT-PURJZ-9C0.75SQ
9
0.75
11.1
6.5
17
CCL-CT-PURJZ-12C0.75SQ
12
0.75
11.2
9.64
18.2
CCL-CT-PURJZ-18C0.75SQ
18
0.75
13.2
12.96
27.5
CCL-CT-PURJZ-25C0.75SQ
25
0.75
16
18
38.2
CCL-CT-PURJZ-34C0.75SQ
34
0.75
16.8
24.48
46.4
CCL-CT-PURJZ-41C0.75SQ
41
0.75
18.3
29.52
57
CCL-CT-PURJZ-2C1.00SQ
2
1
5.8
1.92
5.2
CCL-CT-PURJZ-3C1.00SQ
3
1
7.5
2.88
8.3
CCL-CT-PURJZ-4C1.00SQ
4
1
8.1
3.84
11.3
CCL-CT-PURJZ-5C1.00SQ
5
1
9.3
4.8
13.7
CCL-CT-PURJZ-7C1.00SQ
7
1
10.1
6.7
19.2
CCL-CT-PURJZ-12C1.00SQ
12
1
12.9
11.5
29.4
CCL-CT-PURJZ-18C1.00SQ
18
1
15.3
17.3
42
CCL-CT-PURJZ-25C1.00SQ
25
1
18.4
24
45.6
CCL-CT-PURJZ-34C1.00SQ
34
1
19
32.64
56.5
CCL-CT-PURJZ-41C1.00SQ
41
1
20.1
39.36
69.8
CCL-CT-PURJZ-3C1.50SQ
3
1.5
7.9
4.3
11.7
CCL-CT-PURJZ-4C1.50SQ
4
1.5
8.8
5.8
14.8
CCL-CT-PURJZ-5C1.50SQ
5
1.5
9.9
7.2
18.1
CCL-CT-PURJZ-7C1.50SQ
7
1.5
10.7
10.1
27.3
CCL-CT-PURJZ-12C1.50SQ
12
1.5
13.6
17.3
39.1
CCL-CT-PURJZ-18C1.50SQ
18
1.5
16.3
25.95
58.9
CCL-CT-PURJZ-25C1.50SQ
25
1.5
20
36
80.1
CCL-CT-PURJZ-34C1.50SQ
34
1.5
22.2
48.96
85
CCL-CT-PURJZ-41C1.50SQ
41
1.5
24.1
59
104
CCL-CT-PURJZ-4C4.00SQ
4
4
12.4
15.4
28.9
CCL-CT-PURJZ-5C4.00SQ
5
4
13.8
19.2
35.2
CCL-CT-PURJZ-4C6.00SQ
4
6
14.1
23
46.7
CCL-CT-PURJZ-5C6.00SQ
5
6
15.8
28.8
56.8
CCL-CT-PURJZ-4C10.0SQ
4
10
17.8
38.4
71.1
CCL-CT-PURJZ-5C10.0SQ
5
10
19.9
48
98.1
CCL-CT-PURJZ-4C16.0SQ
4
16
20.6
61.44
105.2
CCL-CT-PURJZ-5C16.0SQ
5
16
23.6
76.8
140
CCL-CT-PURJZ-4C25.0SQ
4
25
29.4
96
159
CCL-CT-PURJZ-4C35.0SQ
4
35
32.8
134.4
220
CCL-CT-PURJZ-4C50.0SQ
4
50
38.9
192
240
CCL-CT-PURJZ-4C70.0SQ
4
70
44.7
268.8
440
CCL-CT-PURJZ-4C95.0SQ
4
95
59.6
364.8
600
