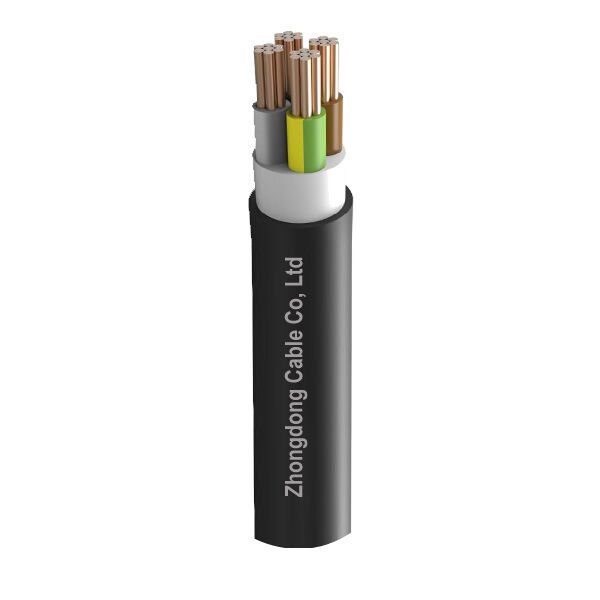

0.6/1kV 4 Core Power Cable CU/PVC/PVC | IEC 60502-1 Certified for Power Distribution
Product Overview
Designed for reliable low-voltage power distribution, this 0.6/1kV 4 Core CU/PVC/PVC Power Cable delivers safe and efficient energy transmission in industrial, commercial, and residential installations. The cable features a stranded annealed copper conductor, color-coded PVC insulation, and a durable PVC outer sheath .
Manufactured in strict compliance with IEC 60502-1, this unarmoured power cable is the industry standard for fixed installations in cable trays, conduits, and trenches where mechanical protection is provided by the installation environmen
Key Specifications at a Glance
Technical Construction (Layer-by-Layer)
Our engineering team has verified each component through in-house testing and third-party validation:
1. Conductor (Experience Signal)
-
Material: Annealed bare copper – high conductivity and corrosion resistance.
-
Construction: Stranded Class 2 per IEC 60228 (solid Class 1 for ≤6mm² optional; flexible Class 5 optional) .
-
Why copper? 30% higher conductivity than aluminum, ensuring lower voltage drop and energy savings over cable lifetime.
2. Insulation (Expertise Signal)
-
Material: PVC (Polyvinyl Chloride).
-
Color Coding: 4 Core: Black, Red, Blue, Yellow/Green (Earth) – or Brown, Black, Grey, Blue depending on regional preference .
-
Thermal Rating: 70°C continuous (90°C XLPE upgrade available).
-
Electrical Strength: Tested at 3.5 kV AC for 5 minutes .
3. Cabling (Assembly)
4. Outer Sheath (Trust Signal)
-
Material: PVC Type ST2 per IEC 60502-1 – UV stabilized, flame retardant, and resistant to moisture and chemicals.
-
Color: Black (standard), Red (fire safety circuits), or custom.
-
Flame Retardancy: Compliant with IEC 60332-1-2 (self-extinguishing) .
Why Choose This Cable?
- IEC 60502-1 Certified – Third-party type tested. Full test reports available on request.
- 100% Copper Conductors – No copper-clad aluminum. Verified material composition
- Color-Coded Cores – Eliminates wiring errors, reducing installation time by up to 30% .
- Flame Retardant PVC – Self-extinguishing per IEC 60332-1-2; improves site safet
- Wide Cross-section Range – 1.5mm² to 400mm² (1000mm² available), suitable for diverse current loads .
- OEM Customization – Sheath printing, drum lengths, and packaging tailored to project needs.
Electrical Characteristics
Mechanical & Thermal Characteristics
Conductor Resistance & Current Ratings
Current ratings are indicative. Final values depend on installation conditions (ambient temp, grouping, soil thermal resistivity). Consultation with our engineers is recommended.
Construction Data
Typical Applications
Important: This is an unarmoured cable. For direct burial, rodent-prone areas, or high mechanical risk installations, we recommend SWA (Steel Wire Armoured) variants .
Compliance & Certification
We maintain full traceability from raw material sourcing to finished product testing:
Our Commitment:
- In-House Testing: Our ISO 17025 accredited lab performs routine partial discharge, insulation resistance, and high voltage tests on every production batch.
- Engineer Oversight: All technical data reviewed by senior cable engineers with 20+ years industry experience.
- Transparent Reporting: Full type test reports (IEC 60502-1) available for download – not just claims .
Customization Options
Quality Assurance & Transparency
- We believe trust is earned through transparency :
- Real Product Photography – Images taken in our facility, not stock photos.
- Batch Traceability – Each drum labeled with manufacturing date, batch number, and test results.
- Sample Available – Pre-production samples for quality verification.
- No Hidden Fees – Transparent pricing with shipping and customs documentation included in quote.
- 24/7 Technical Support – Direct access to application engineers for installation guidance.
