Halogen-Free Flame-Resistant Cable NXXH N2XH-J N2XH-O

Basic Properties
Place of Origin: Hebei，China
Brand Name: Halogen-Free Flame-Resistant Cable
Certification: ISO9001, CE, CCC, RoHS, VDE, cUL, CSA
Trading Properties
Minimum Order Quantity: To be negotiated
Price: To be negotiated
Payment Terms: ,L/C,T/T
Supply Ability: 100KM/Week
Tags

Flame Retardant Cable

Fire Proof Cable

Fire Retardant Cable
Specifications
Usage: Access Control System Insulation: XLPE PE PVC
Voltage: 0.6/1kV Length: Customized
Conductor Material: Copper Packing: Neutral Carton Packing Or Customized
High Light:

Halogen-Free flame-resistant cable

,

NXXH fire resistant cable

,

N2XH-J flame-resistant cable
Product Description

Halogen-Free Flame-Resistant Cable NXXH N2XH-J N2XH-O



APPLICATION & CHARACTERISTICS


1. N2XH Cable Series

  • Core Applications:

    • Petrochemical processing units (reactor jackets, distillation columns)

    • Steel mill conveyor systems (blast furnace zones, rolling mills)

    • Aerospace engine compartment wiring

  • Technical Characteristics:

    • Continuous service temperature: -40°C to +250°C

    • Halogen-free flame retardant (IEC 60332-3C compliant)

    • Oil/fuel resistance (per ASTM D471)

    • Cross-linked polyethylene (XLPE) insulation

2. N2XH-J Cable Model

  • Specialized Features:

    • Mechanically enhanced jacket for vibration-prone applications

    • EMI shielding (85dB attenuation @ 1GHz)

    • Flexible multi-conductor design (up to 50 cores)

  • Typical Deployment:

    • Automotive testing rigs (powertrain dynamometers)

    • Semiconductor wafer processing equipment

    • High-speed rail signal transmission

3. N2XH-O Cable Model

  • Unique Advantages:

    • Oxygen-free copper conductors (99.99% purity)

    • Radiation-resistant properties (10^6 Gy tolerance)

    • Moisture-blocking layers for marine applications

  • Critical Use Cases:

    • Nuclear facility control circuits

    • Deep-sea ROV tether systems

    • Cryogenic plant instrumentation


CONSTRUCTION


1. N2XH Cable Structure

  • Conductor: Typically composed of high-purity copper or aluminum, annealed for flexibility and low resistance.

  • Insulation: Cross-linked polyethylene (XLPE) insulation provides excellent thermal resistance (up to 90°C) and dielectric strength.

  • Shielding: A concentric copper tape or braid shield minimizes electromagnetic interference (EMI).

  • Jacket: Thermoplastic or thermosetting material (e.g., PVC or LSZH) offers abrasion resistance and flame retardancy.

2. N2XH-J Cable Structure

  • Conductor: Similar to NXXH but may include additional stranding for enhanced flexibility.

  • Insulation: XLPE with higher dielectric breakdown voltage, suitable for industrial high-voltage applications.

  • Armor: Steel-wire or tape armor protects against mechanical stress (e.g., rodent damage or crushing).

  • Outer Jacket: Reinforced with fiberglass or aramid yarn for tensile strength in harsh environments.

3. N2XH-O Cable Structure

  • Conductor: Copper with silver plating for improved conductivity in corrosive environments.

  • Insulation: Silicone rubber insulation for extreme temperature resilience (-60°C to +200°C).

  • Shielding: Dual-layer shielding (aluminum foil + copper braid) for superior EMI protection.

  • Jacket: Fluoropolymer (e.g., PTFE) resists UV, chemicals, and moisture, ideal for outdoor installations.

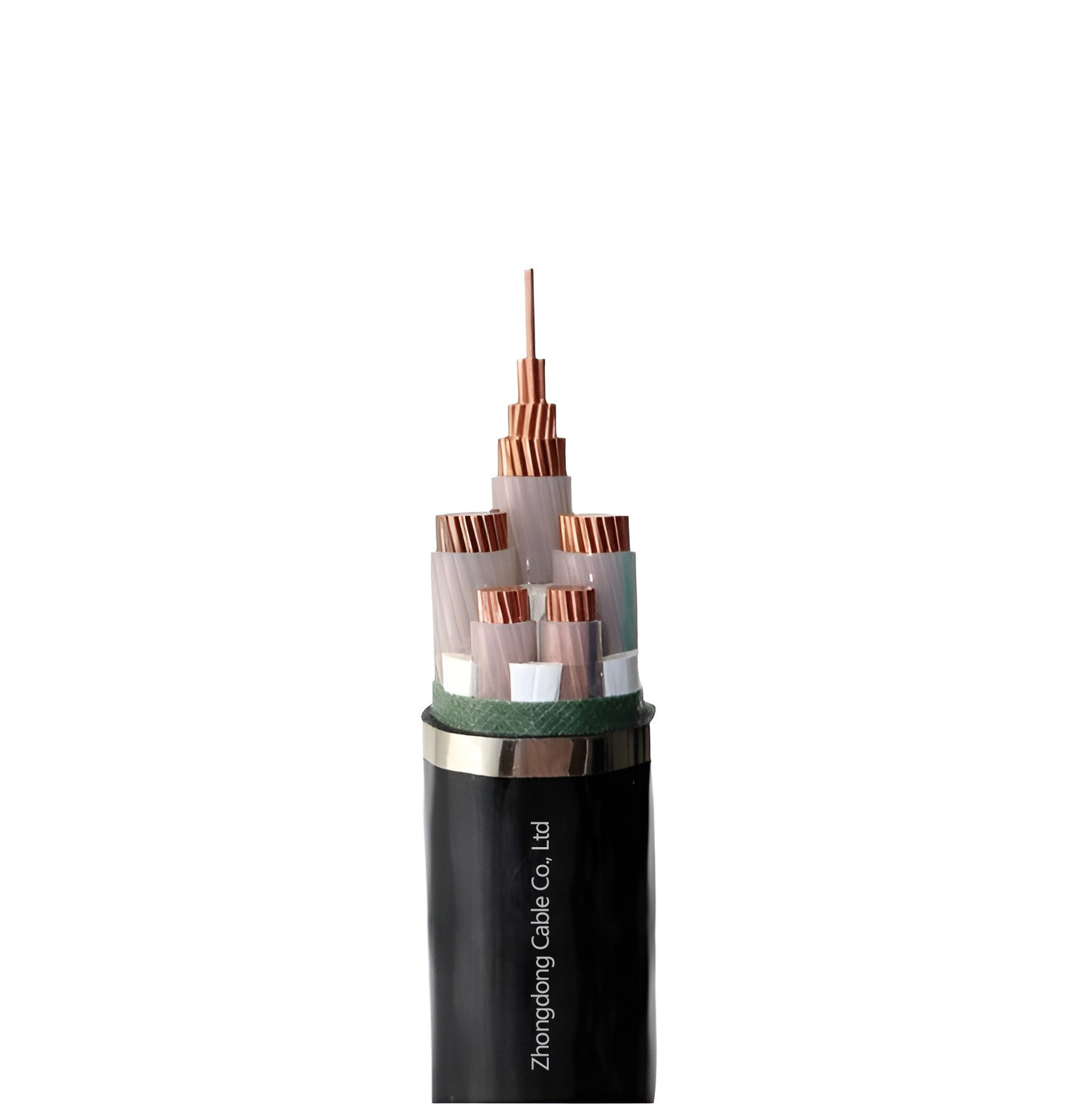

Halogen-Free Flame-Resistant Cable NXXH N2XH-J N2XH-O 0Halogen-Free Flame-Resistant Cable NXXH N2XH-J N2XH-O 1






PARAMETERS





Dimensions-
Number of cores X
cross-section		 Design Construction of the
individual keep the
handlers safe		 The
outer
diameter		 thickness of
insulation		 shell
thickness		 Resistance to
keep the
handlers safe
at 20°C		 Weight Cu weight
of
cable


rated about rated rated max.
about
Nx  mm²
nx    mm mm mm mm Q/km kg/km kg/km
1×1,5 RE 1×1,38 54 138 15 1,210 15,403 43
1×4 RE 1×2,25 64 225 20 461 5,869 75
1×16 RM 7×1,70 91 500 36 115 1,464 202
1×25 RM 7×2,13 11  610 48 727 925 302
1×70 RM 19×2,17 15  1,010 84 268 341 745
1×95 RM 19×2,52 17  1,190 97 193 246 986
1×185 RM 37×2,52 23  1,620 172 991 126 1888
1×300 RM 61x2,50 28  2,060 234 601 77 2945

2×1,5 RE 1×1,38 9  138 38 1,210 15,403 120
2×2,5 RE 1×1,78 10  178 45 741 9,433 154
2×16 RM 7×1,70 16  500 106 115 1,464 563
2×25 RM 7×2,13 20  610 152 727 925 840
2×35 RM 7×2,52 22  720 179 524 667 1106
2×120 RM 37×2,03 36  1,300 423 153 195 3343
2x300 RM 61x2,50 55  2,060 939 601 77 8072

3×1,5 RE 1×1,38 9  138 44 1,210 15,403 135
3×2,5 RE 1×1,78 10  178 51 741 9,433 181
3×4 RE 1×2,25 11  225 60 461 5,869 242
3×10 RE 1×3,56 14  357 83 183 2,330 464
3×16 RM 7×1,70 17  500 122 115 1,464 697
N2XH


3×35 RM 7×2,52 23  720 208 524 667 1393
3×50 RM 19×1,83 26  830 256 387 493 1847
3×70 RM 19×2,17 31  1,010 343 268 341 2666
3×95 RM 19×2,52 36  1,190 417 193 246 3535
3×120 RM 37x2,03 38  1,300 474 153 195 4322
3×185 RM 37x2,52 48  1,620 740 991 126 6742
3×300 RM 61×2,50 59  2,060 1,079 601 77 10522





FACTORY


Halogen-Free Flame-Resistant Cable NXXH N2XH-J N2XH-O 2


APPLICATION


Steel Tape Armoured STA Fire Retardant Cable PVC Sheathed Control Cable 0Steel Tape Armoured STA Fire Retardant Cable PVC Sheathed Control Cable 1Steel Tape Armoured STA Fire Retardant Cable PVC Sheathed Control Cable 2


FAQ


1. What is N2XH cable?

N2XH is a European standard (EN) halogen-free flame-retardant power cable, where "N" denotes non-spreading flame and "XH" indicates cross-linked polyethylene (XLPE) insulation. The J/O suffixes differentiate between rigid (Class 1) and flexible (Class 5) conductor versions.


2. Key features of N2XH-J/O cables?

  • Fire safety: FRNC (Flame Retardant Non-Corrosive) sheath reduces smoke/toxic gas emission during fire incidents

  • Material: Copper conductor + XLPE insulation + LSOH (Low Smoke Zero Halogen) sheath

  • Certification: CE/TUV certified, compliant with EN 60332-3, IEC 60754-1 standards

3. Typical applications?

  • Public buildings (hospitals, hotels)

  • Industrial plants (chemical/oil facilities)

  • Transport systems (metro, railways)

4. Voltage rating & temperature range?

  • Rated voltage: 0.6/1kV

  • Operating temp: -40°C to +90°C (fixed installation)

  • Short-circuit withstand: +250°C (5 sec max)

5. Installation precautions?

  • Minimum bending radius: 12× cable diameter

  • Avoid parallel routing with high-voltage cables (keep ≥300mm spacing)

  • Use proper glanding tools for shield termination

6. How to identify conductor classes?

  • N2XH-J: Class 1 solid conductor (rigid)

  • N2XH-O: Class 5 stranded conductor (flexible)

7. Advantage over PVC cables?

  • 50% lower smoke density in fires (IEC 61034 test)

  • No corrosive halogen gases (IEC 60754-1 compliant)

8. Maintenance recommendations?

  • Annual insulation resistance test (>20MΩ·km)

  • Visual inspection for sheath damage in corrosive environments
