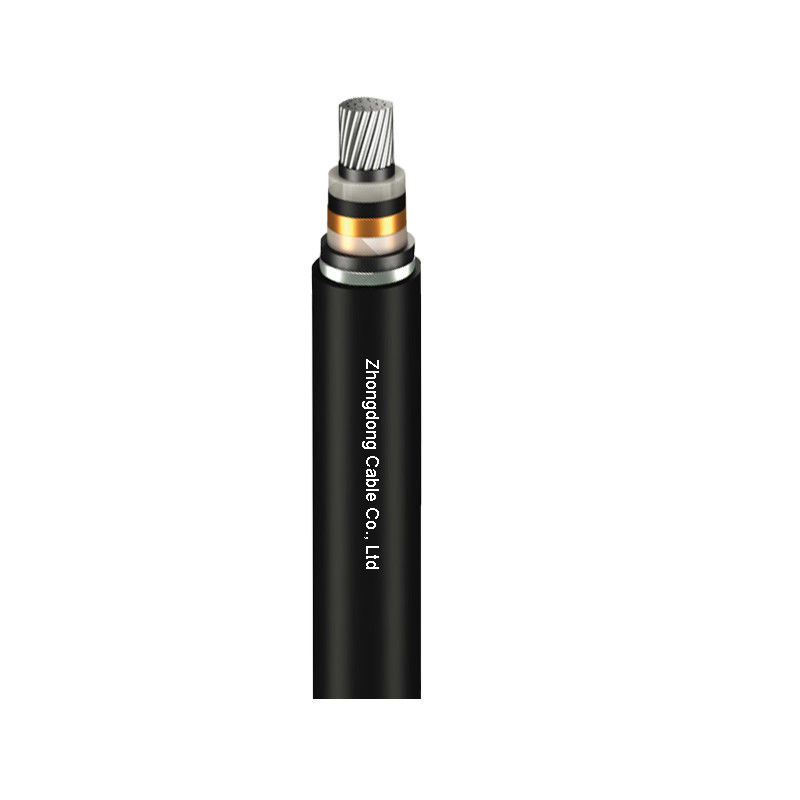

400sqmm Single Core Aluminium Power Cable Armoured STA 35kV Cu XLPE PVC STA
| Insulation: | XLPE HPDE | Voltage: | 26/35kV |
| Length: | Customized | Conductor Material: | Aluminium Alloy |
| Packing: | Neutral Carton Packing Or Customized | Application: | Overhead |
| High Light: | Single Core Aluminium Power Cable,Armoured STA Aluminium Power Cable,400sqmm Aluminium Power Cable |
||
400sq mm Single Core Aluminium Conductor Cable Armoured STA 35kV Cu/XLPE/PVC/STA
Application
Renewable Energy Systems: Widely used in solar farms and wind power projects due to lightweight design and corrosion resistance
Industrial and Urban Infrastructure: Ideal for underground burial, tunnels, and industrial plants requiring durable, corrosion-resistant power distribution
Transportation Networks: Deployed in subways, railways, and airports where flexibility and reduced cable weight are critical
Commercial and Residential Buildings: Replaces traditional copper cables in electrical grids, offering cost savings without compromising safety
Construction
- Conductor
- Conductor Shiel
- Insulation
- Metal Shield Layer
- Filler
- Binder Tape
- Armouring
- Outer sheath
Laying Method
Pipe laying, trench laying, tunnel laying, vertical shaft and bridge laying, etc.
Specification
|
Specs |
Conductor diameter |
Outer thickness of insulation |
Approx outer diameter of cable |
Approx cable weight |
|
1×50 |
7.6±0.2 |
31.2 |
41.2 |
2192 |
|
1×70 |
9.2±0.2 |
32.8 |
43.0 |
2376 |
|
1×95 |
10.9±0.2 |
34.5 |
44.7 |
2554 |
|
1×120 |
12.2±0.2 |
35.8 |
46.1 |
2738 |
|
1×150 |
13.6±0.2 |
37.2 |
47.7 |
2939 |
|
1×185 |
15.2±0.2 |
38.8 |
49.5 |
3182 |
|
1×240 |
17.4±0.2 |
41.0 |
51.7 |
3493 |
|
1×300 |
19.5±0.2 |
43.1 |
54.1 |
3855 |
|
1×400 |
22.0±0.2 |
45.6 |
56.8 |
4349 |
|
1×500/35 |
24.8±0.2 |
49.2 |
63.1 |
5275 |
|
1×630/35 |
28.2±0.2 |
52.6 |
66.9 |
5949 |
|
1×800/35 |
34.0±0.2 |
58.4 |
72.8 |
6872 |
