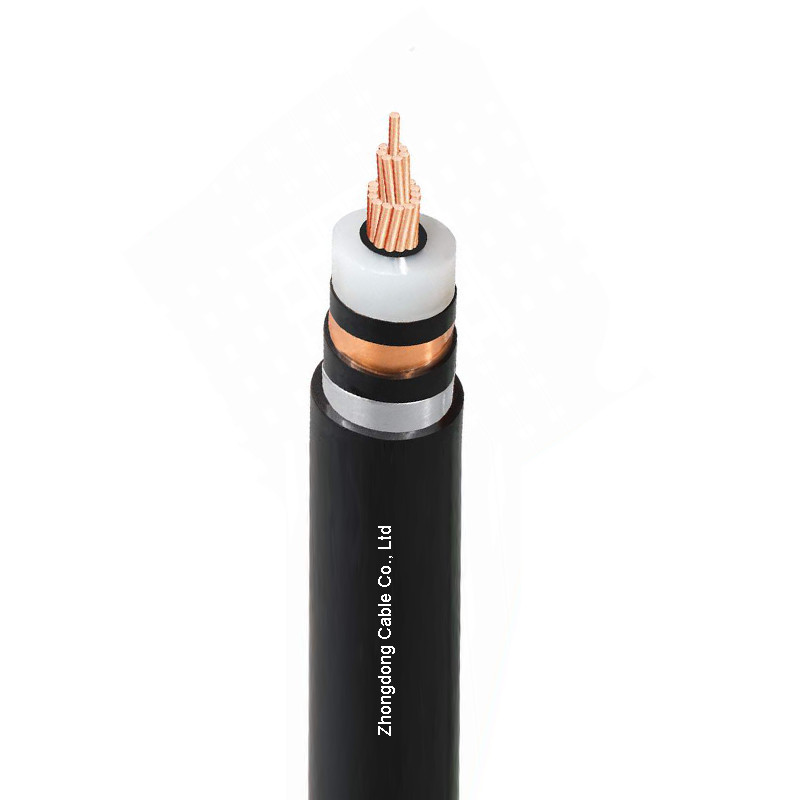

MV 18KV 30kV Armored Electrical Cable Single Core 1X185mm2 Copper Conductor XLPE Insulated
| Armored: | Steel Tape | Sheath Material: | PVC |
| Insulation: | XLPE | Rated Voltage: | 8.7/35kV |
| Conductor: | Copper | No of Core: | 1,3 |
| High Light: | 1X185mm2 Armored Electrical Cable,1X185mm2 Single Core Armoured Cable |
||
MV 18/30kV Armored Electrical Cable Single Core 1X185mm2 Copper Conductor XLPE Insulated
Construction
- Conductor: Circular compacted stranded Copper or aluminium
- Conductor screen: Extruded semi-conductive compound
- Insulation: XLPE
- Insulation screen: Extruded semi-conductive compound
- Metallic screen: Copper Wire
- Binder tape: non-hygroscopic material
- Inner covering(bedding): PVC
- Metallic armor: Galvanized steel tape
Application
It is used to transmit and distribute power in power transmission and distribution system of 35kV or lower. It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable and in partial replace of PVC insulated power cable.
Specification
YJV62 YJV22-26/35kV Cable Structure Parameters
|
Specs |
Conductor diameter |
Outer thickness of insulation |
Approx outer diameter of cable |
Approx cable weight |
|
1×50 |
7.6±0.2 |
312 |
40.6 |
2435 |
|
1×70 |
9.2±0.2 |
32.8 |
42.4 |
2754 |
|
1×95 |
10.9±0.2 |
345 |
44.1 |
3108 |
|
1×120 |
12.2±0.2 |
35.8 |
45.5 |
3438 |
|
1×150 |
13.6±0.2 |
372 |
47.1 |
3805 |
|
1×185 |
15.2±0.2 |
38.8 |
48.9 |
4266 |
|
1×240 |
17.4±0.2 |
410 |
51.1 |
4925 |
|
1×300 |
19.5±0.2 |
43.1 |
53.5 |
5666 |
|
1×400 |
22.0±0.2 |
45.6 |
56.2 |
6598 |
|
1×500/35 |
24.8±0.2 |
492 |
62.5 |
8205 |
|
1×630/35 |
28.2±0.2 |
52.6 |
66.3 |
9771 |
|
1×800/35 |
34.0±0.2 |
58.4 |
72.2 |
11950 |
