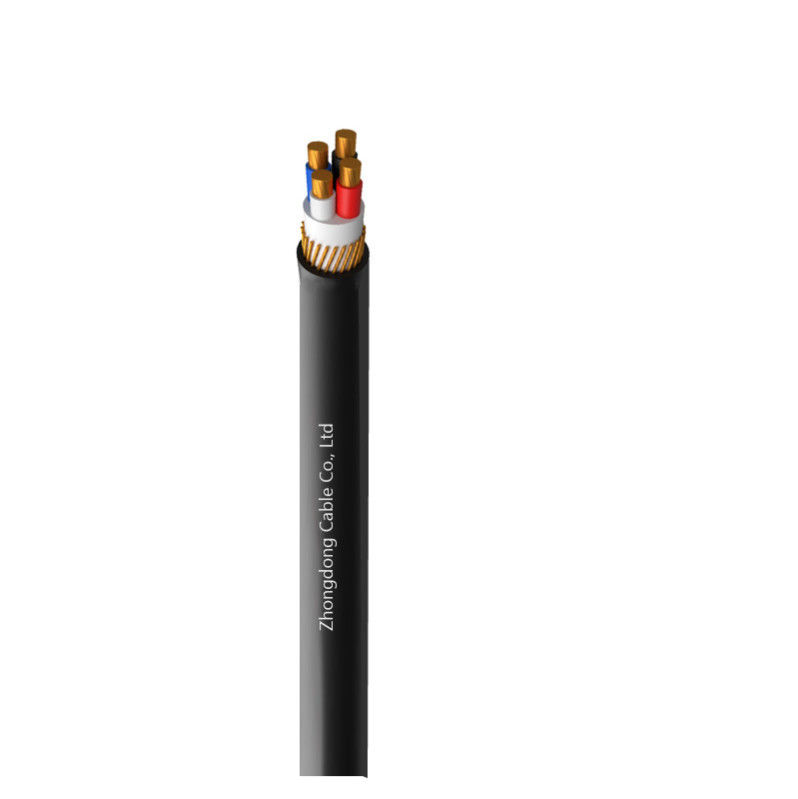

CU XLPE PVC Low Voltage Power Cable Copper Wire Shielded Cable 0.6/1kV
| Voltage: | 3.6/6kV | Insulation: | XLPE |
| Jacket: | PVC | Feature: | LSZH |
| Amour: | Steel Tape | Application: | Underground, Overhead, Indoor, Mining And Power Distribution Etc |
| High Light: | 1kV Low Voltage Power Cable,Low Voltage Copper Wire Shielded Cable |
||
CU/XLPE/PVC Low Voltage Cable Copper Wire Shielded Cable 0.6/1kV
Application
The cable could be laying indoors, in tunnel, cable trench, or direct in ground, they can bear external mechanical forces, but unable to bear large pulling force.
Construction
- Conductor:Circular, solid, compacted or sector shaped stranded Copper or aluminum
- Insulation:XLPE
- Filler: Non-hygroscopic material
- Screen: Copper Wire
- Binder tape:: Non-hygroscopic material
- Sheath PVC
Characteristics
- Test Voltage: 3.5kV 5min No Breakdown
- The ambient temperature for installation: ≥0℃.
- Maximum conductor temperature in normal operation:≤90℃.
- Max operating temperature of con. When cable short-circuited(5s maximum duration): 250℃.
- Permissible minimum bending radius:
- Single unarmoured cable: 20 x OD
- Multi-core unarmoured cable: 15 x OD
- Single armoured cable: 5 x OD
- Multi-core armoured cable: 12 x OD
- Note : OD=Overall Diameter of Cable
Specification
|
Nominal section area |
Approx. overall diameter |
Approx. weight of cable |
Maximum DC resistance of the conductor |
||
|
mm2 |
mm |
kg/km |
Ω/km |
||
|
|
|
Cu |
Al |
20℃ Cu |
20℃ Al |
|
4×1.5 RE |
11.4 |
177 |
– |
12.1 |
– |
|
4×2.5 RE |
12.4 |
226.9 |
164.7 |
7.41 |
12.1 |
|
4×4 RE |
14.5 |
320.2 |
220.7 |
4.61 |
7.41 |
|
4×6 RE |
15.7 |
424.1 |
274.9 |
3.08 |
4.61 |
|
4×10 CC |
18.2 |
607.6 |
358.9 |
1.83 |
3.08 |
|
4×16 CC |
20.6 |
861 |
463.1 |
1.15 |
1.91 |
|
4×25 CC |
24.5 |
1287.4 |
665.6 |
0.727 |
1.2 |
|
4×35 CC |
26.9 |
1687.4 |
816.9 |
0.524 |
0.868 |
|
4×50 SM |
28 |
2295.4 |
1051.8 |
0.387 |
0.641 |
|
4×70 SM |
31.6 |
3095.1 |
1354.1 |
0.268 |
0.443 |
|
4×95 SM |
35.9 |
4146 |
1783.2 |
0.193 |
0.32 |
|
4×120 SM |
38.5 |
5125.7 |
2141.1 |
0.153 |
0.253 |
|
4×150 SM |
42.8 |
6379.9 |
2649.2 |
0.124 |
0.206 |
|
4×185 SM |
48.4 |
7849.2 |
3248 |
0.0991 |
0.164 |
|
4×240 SM |
53.5 |
10084 |
4114.8 |
0.0754 |
0.125 |
|
4×300 SM |
59.2 |
12526.3 |
5064.8 |
0.0601 |
0.1 |
