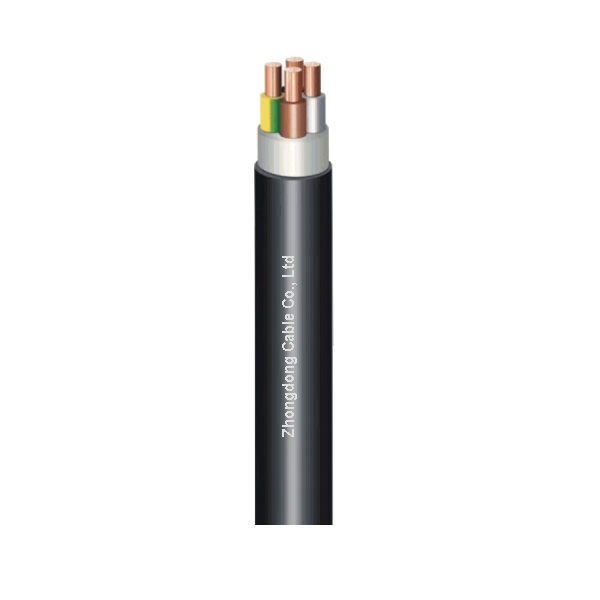

Flame retardant LV Low Voltage Cable 0.6/1kV CU/ XLPE/STA/PVC Class C power cable

Flame retardant LV Low Voltage Cable 0.6/1kV CU/ XLPE/STA/PVC Class C power cable
Flame retardant LV Low Voltage Cable 0.6/1kV CU/ XLPE/STA/PVC Class C power cable
Flame retardant LV Low Voltage Cable 0.6/1kV CU/ XLPE/STA/PVC Class C power cable Flame retardant LV Low Voltage Cable 0.6/1kV CU/ XLPE/STA/PVC Class C power cable

Large Image :  Flame retardant LV Low Voltage Cable 0.6/1kV CU/ XLPE/STA/PVC Class C power cable

Product Details:
Place of Origin: Hebei，China
Brand Name: Zhongdong
Certification: IEC,CE,ISO,TUV
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Rolls, Wooden Drums, Steel Drums, Reels or customized
Delivery Time: 7-30 days based on different qty
Payment Terms: ,L/C,T/T
Supply Ability: 100KM/Week
Contact Now

Flame retardant LV Low Voltage Cable 0.6/1kV CU/ XLPE/STA/PVC Class C power cable

Description
Voltage: 0.6/1kV Insulation: PVC
Jacket: PVC No Of Core: 3
Highlight:

10 sqmm low voltage power cable

,

16 sqmm NYY-J power cable

,

NYY-O low voltage cable

Flame retardant LV Low Voltage Cable 0.6/1kV CU/ XLPE/STA/PVC Class C power cable


APPLICATION

This product is suitable for use in circuits with a rated voltage not exceeding 0.6/1kV, for the purpose of power transmission and distribution.

CONSTRUCTION



  • Conductor: Class 1 or class 2 stranded Copper conductor
  • Insulation: Cross-Linked Polyethylene(XLPE)
  • Inner sheath: Polyvinyl chloride (PVC)
  • Armour: Single core: Steel Tape Multi core: Galvanized Steel Tape
  • Outer sheath: Polyvinyl chloride (PVC)


Flame retardant LV Low Voltage Cable 0.6/1kV CU/ XLPE/STA/PVC Class C power cable 0Flame retardant LV Low Voltage Cable 0.6/1kV CU/ XLPE/STA/PVC Class C power cable 1


CHARACTERICSTIC

  • Voltage Rating Uo/U: 0.6/1kV
  • Maximum system voltage: 12kV
  • Maximum operating temperature of conductor:+90℃
  • Operating ambient temperature: -20℃~+45℃
  • Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
  • Minimum Bending Radius:  Single core:15D  Multicire: 12D   (D is the actual outer diameter of the cable)

SPECIFICATION


Specs

mm²

Conductor diameter
mm

Nominal  thickness of insulation
mm

Thickness of lining          mm

Nominal thickness of steel tape      m m

Nominal thickness of sheath
mm

Approximate outer diameter of cable
mm

Approximate cable weight
kg/km

4×2.5+1×1.5

1.78/1.38

0.7/0.7

1.0

0.2

1.8

15.9

397

4×4+1×2.5

2.25/1.78

0.7/0.7

1.0

0.2

1.8

17.1

493

4×6+1×4

2.76/2.25

0.7/0.7

1.0

0.2

1.8

18.4

615

4×10+1×6

4.0/2.76

0.7/0.7

1.0

0.2

1.8

21.4

827

4×16+1×10

5.0/4.0

0.7/0.7

1.0

0.2

1.8

24.2

1147

4×25+1×16

6.1/5.0

0.9/0.7

1.0

0.2

1.8

28.2

1655

4×35+1×16

7.2/5.0

0.9/0.7

1.0

0.2

1.8

30.7

2071

4×50+1×25

8.4/6.1

1.0/0.9

1.2

0.2

2.0

35.3

2775

4×70+1×35

10.0/7.2

1.1/0.9

1.2

0.5

2.2

41.6

4192

4×95+1×50

12.0/8.4

1.1/1.0

1.2

0.5

2.3

46.9

5496

4×120+1×70

13.0/10.0

1.2/1.1

1.4

0.5

2.5

51.2

6838

4×150+1×70

14.9/10.0

1.4/1.1

1.4

0.5

2.6

56.6

8161

4×185+1×95

16.5/12.0

1.6/1.1

1.6

0.5

2.8

62.8

10121

4×240+1×120

18.4/13.5

1.7/1.2

1.6

0.5

3.0

68.7

12808

4×300+1×150

21.0/14.9

1.8/1.4

1.8

0.5

3.2

76.6

15832

4×400+1×185

23.4/16.5

2.0/1.6

1.8

0.8

3.6

85.8

20727

APPLICATION


Flame retardant LV Low Voltage Cable 0.6/1kV CU/ XLPE/STA/PVC Class C power cable 2


ABOUT US


Flame retardant LV Low Voltage Cable 0.6/1kV CU/ XLPE/STA/PVC Class C power cable 3


PROJRCTS


Flame retardant LV Low Voltage Cable 0.6/1kV CU/ XLPE/STA/PVC Class C power cable 4


PARTNER


Flame retardant LV Low Voltage Cable 0.6/1kV CU/ XLPE/STA/PVC Class C power cable 5Flame retardant LV Low Voltage Cable 0.6/1kV CU/ XLPE/STA/PVC Class C power cable 6


FAQ

Q1: Are you trading company or manufacturer ?
A1: We are manufacturer with more than 20 year in cable manufacture.
Q2: Do you have your own R&D team?
A2: Yes, we can customize products as your requirements.
Q3: How about the quality?
A3: We have the best professional engineer and strict QA and QC system.
Q4: Can we be your distributor?
A4: We are looking for distributor and agent all over the world.

Q5. What is your MOQ

A5: We have flexible MOQ requirement, contact us for details
