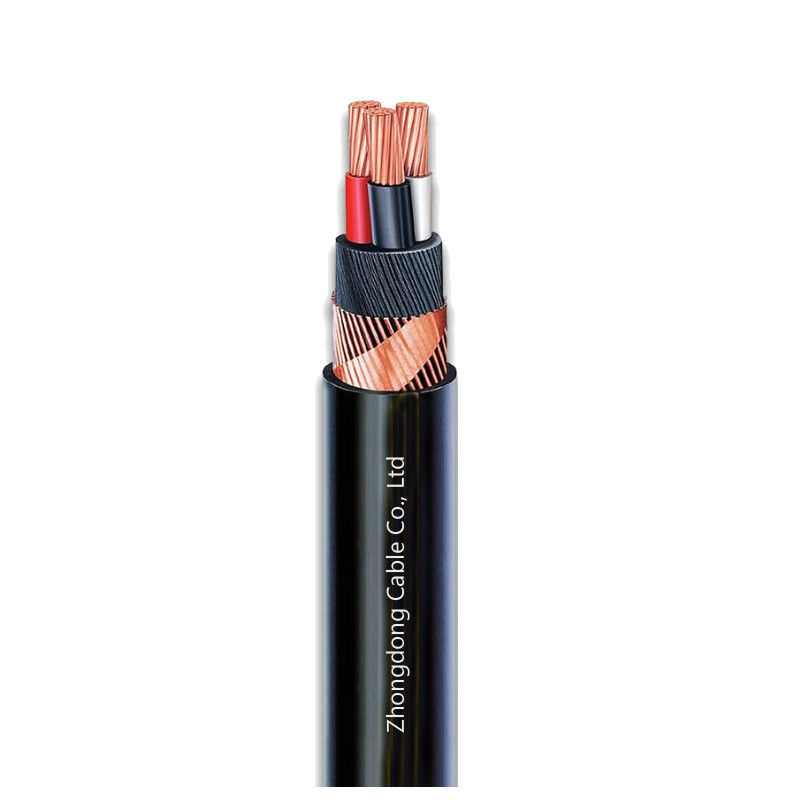

Three Core Low Voltage Cable 0.6/1kV XLPE Insulated with Copper Wire Screen for Power Distribution
Basic Properties
Place of Origin:
Hebei，China
Brand Name:
Three Core LV Power Cable
Certification:
IEC,CE,ISO,TUV
Model Number:
NYBY NAYBY
Trading Properties
Minimum Order Quantity:
Negotiable
Price:
Negotiable
Payment Terms:
,L/C,T/T
Supply Ability:
100KM/Week
Specifications
| Voltage: | 3.6/6kV | Insulation: | XLPE |
| Jacket: | PVC | Feature: | LSZH |
| Amour: | Steel Tape | Application: | Underground, Overhead, Indoor, Mining And Power Distribution Etc |
| High Light: | XLPE Insulated LV Power Cable,Low Voltage Electrical Cable OEM,Three Core LV Power Cable |
||
Product Description
Three Core LV Power Cable 0.6/1kV XLPE Insulated Low Voltage Electrical Cable
This three-core low voltage cable features copper wire screen and XLPE insulation, designed for reliable power distribution in demanding industrial and commercial applications.
Applications
- Industrial Facilities: Factories, automation systems, and machinery where EMI shielding ensures stable power supply
- Commercial Buildings: Offices, shopping malls, and hotels for lighting, HVAC systems, and power distribution
- Infrastructure Projects: Subways, tunnels, and bridges where cables resist moisture, vibrations, and EMI
- Energy and Utilities: Substations, renewable energy installations (solar/wind farms), and grid connections
- Residential Complexes: Apartment buildings and smart homes for safe, interference-free electrical wiring
- Critical Facilities: Hospitals, data centers, and laboratories where EMI shielding prevents disruptions
- Transportation Systems: Railway stations, airports, and ports for signaling and control circuits
Cable Construction
- Conductor: Circular, solid, compacted or sector shaped stranded Copper or aluminum
- Insulation: XLPE (Cross-Linked Polyethylene)
- Filler: Non-hygroscopic material
- Screen: Copper Wire
- Binder tape: Non-hygroscopic material
- Sheath: PVC
Technical Characteristics
- Test Voltage: 3.5kV for 5 minutes with no breakdown
- Installation Temperature: ≥0℃ ambient temperature
- Maximum Operating Temperature: ≤90℃ conductor temperature in normal operation
- Short-Circuit Temperature: 250℃ maximum conductor temperature (5s maximum duration)
- Minimum Bending Radius:
- Single unarmoured cable: 20 x OD
- Multi-core unarmoured cable: 15 x OD
- Single armoured cable: 5 x OD
- Multi-core armoured cable: 12 x OD
- Note: OD = Overall Diameter of Cable
Specifications
| Specification (mm²) | Outer Diameter of Conductor (mm) | Nominal Sheath Thickness (mm) | Approx. Outer Diameter of Cable (mm) | Approx. Weight of Cable (kg/km) |
|---|---|---|---|---|
| 3X1.5 RE | 1.38 | 1.8 | 10.2 | 132 (CU) / 104 (AL) |
| 3X2.5 RE | 1.78 | 1.8 | 11.1 | 168.7 (CU) / 122 (AL) |
| 3X4 RE | 2.24 | 1.8 | 12.1 | 220.4 (CU) / 145.8 (AL) |
| 3X6 RE | 2.76 | 1.8 | 13.2 | 296.6 (CU) / 184.7 (AL) |
| 3X10 CC | 3.8 | 1.8 | 15.4 | 439.4 (CU) / 252.9 (AL) |
| 3X16 CC | 4.8 | 1.8 | 17.6 | 645.9 (CU) / 347.4 (AL) |
| 3X25 CC | 6 | 1.8 | 21 | 937.2 (CU) / 470.9 (AL) |
| 3X35 CC | 7 | 1.8 | 23.2 | 1231.6 (CU) / 578.7 (AL) |
| 3X50 SM | 8 | 1.8 | 22.1 | 1611.4 (CU) / 678.8 (AL) |
| 3X70 SM | 9.5 | 1.9 | 25.7 | 2213.1 (CU) / 907.4 (AL) |
| 3X95 SM | 11 | 2 | 28.7 | 2938.7 (CU) / 1166.6 (AL) |
| 3X120 SM | 12.4 | 2.1 | 32.5 | 3687 (CU) / 1448.5 (AL) |
| 3X150 SM | 13.8 | 2.3 | 36.8 | 4598.4 (CU) / 1800.4 (AL) |
| 3X185 SM | 15.4 | 2.4 | 40.9 | 5654.8 (CU) / 2203.8 (AL) |
| 3X240 SM | 17.5 | 2.6 | 45.7 | 7268 (CU) / 2791.1 (AL) |
| 3X300 SM | 19.6 | 2.8 | 50.5 | 9019.7 (CU) / 3423.5 (AL) |
About Our Company
Our Projects
Packaging
Frequently Asked Questions
What is the rated voltage of a 0.6/1kV three-core XLPE insulated LV power cable?
The cable is designed for low-voltage applications with a rated voltage of 0.6/1kV (600/1000 volts), suitable for power distribution in industrial and commercial settings.
What are the advantages of XLPE insulation in this cable?
XLPE (Cross-Linked Polyethylene) insulation offers superior thermal stability, chemical resistance, and durability, withstanding continuous operating temperatures up to 90°C and short-term peaks to 130°C.
Where are three-core LV power cables typically used?
They are widely deployed in building wiring, industrial machinery, renewable energy systems, and underground networks for efficient three-phase power transmission.
What conductor materials are available for this cable?
Options include stranded copper or aluminum conductors, with copper providing higher conductivity and aluminum offering cost-effective solutions for large-scale installations.
How does the cable handle mechanical stress?
Unarmored versions rely on insulation and sheathing for protection in low-risk environments, while armored variants add metallic layers for enhanced durability against external impacts.
What are the temperature limitations during installation?
The minimum installation temperature is typically -15°C to prevent insulation damage, and the cable maintains performance in ambient conditions from -40°C to +90°C.
Can this cable be used for outdoor installations?
Yes, its moisture and UV resistance make it suitable for outdoor use, though additional protective measures like conduits may be needed in harsh environments.
What sizes are available for the three-core design?
Common cross-sectional areas range from 4mm² to 300mm², accommodating diverse current-carrying requirements in electrical systems.
