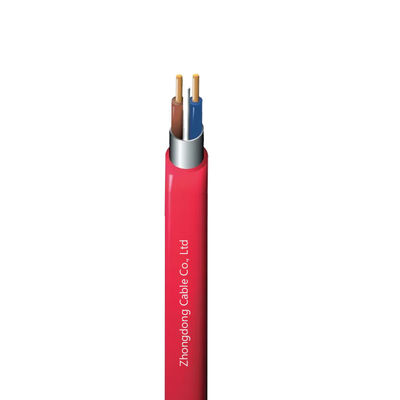

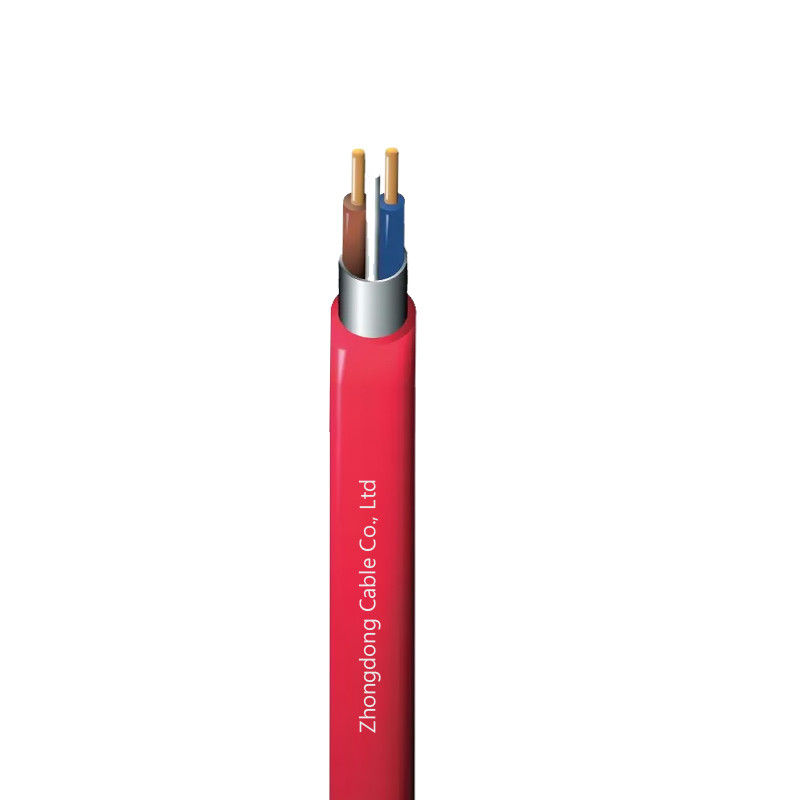

Fire Resistant STA Armoured Cable Multi Core PVC Sheathed Control Cable
| Usage: | Access Control System | Insulation: | XLPE PE PVC |
| Voltage: | 300/500V ,450/750V | Length: | Customized |
| Conductor Material: | Copper | Packing: | Neutral Carton Packing Or Customized |
| High Light: | Fire Resistant STA Armoured Cable,PVC Sheathed STA Armoured Cable |
||
Steel Tape Armoured STA Fire Resistant Flame Retardant PVC Sheathed Control Cable
Application
Suitable for indoor use, fixed installations, in public areas such as hospitals, hotels, shopping malls, airports, underground railway networks, tunnels, communication centres, and, in general, all places where it is required a high degree of protection of persons and assets or/and with a large number of people and electrical/electronic equipment.
Characteristics
- Rated power-frepuency voltage U0/U: 3.6/6kv~26/35kv.
- Max.admissible operating temperature of the conductor:90ºC
- Max. short-circurt temperature of conductor shall not exceed 250ºC. (5s maximum duration)
- The ambient temperature under installation should not below 0ºC
- The bending radius of a single-core cable should not less than 20 times of the cable diameter.
- The bending radius of a multi-core cable should not less than 15 times of the cable diameter.
Construction
- Conductor :Class 2 stranded copper conductor
- Insulation :XLPE (Cross-Linked Polyethylene)
- Bedding :LSZH (Low Smoke Zero Halogen)
- Armour :SWA (Steel Wire Armour)
- Sheath :LSZH (Low Smoke Zero Halogen)
Specification
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC |
Armored wire diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approoximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
|
|
bedding thickness (mm) |
|
|
|
|
|
|
50 |
Compact round |
8.4 |
8 |
0.1 |
1.8 |
3.15 |
3.5 |
77.3 |
9333 |
8390 |
|
70 |
Compact round |
10 |
8 |
0.1 |
1.8 |
3.15 |
3.6 |
80.9 |
10396 |
9075 |
|
95 |
Compact round |
11.7 |
8 |
0.1 |
1.9 |
3.15 |
3.7 |
85 |
11723 |
9930 |
|
120 |
Compact round |
13.1 |
8 |
0.1 |
2 |
3.15 |
3.8 |
88.4 |
12986 |
10720 |
|
150 |
Compact round |
14.6 |
8 |
0.1 |
2 |
3.15 |
3.9 |
91.8 |
14220 |
11388 |
|
185 |
Compact round |
16.3 |
8 |
0.1 |
2.1 |
3.15 |
4 |
95.9 |
15887 |
12395 |
|
240 |
Compact round |
18.5 |
8 |
0.1 |
2.2 |
3.15 |
4.2 |
101.2 |
18144 |
13613 |
|
300 |
Compact round |
20.7 |
8 |
0.1 |
2.3 |
3.15 |
4.4 |
107 |
20761 |
15097 |
|
400 |
Compact round |
23.8 |
8 |
0.1 |
2.4 |
3.15 |
4.6 |
114.3 |
24824 |
17273 |
|
500 |
Compact round |
26.6 |
8 |
0.1 |
2.5 |
3.15 |
4.8 |
122.2 |
29019 |
19580 |
300sq mm Steel Tape Armoured Electrical Cable 35kV Cu XLPE PVC STA OEM
300sq mm Armoured Electrical Cable Steel Tape Armoured STA 35kV Cu/XLPE/PVC/STA Construction Conductor: Circular compacted stranded Copper or aluminium Conductor screen: Extruded semi-conductive compound Insulation: XLPE Insulation screen: Extruded semi-conductive compound Metallic screen: Copper ...
Flame Retardant STA Armoured Electrical Cable PVC Sheathed Steel Tape Armored Cable
Flame Retardant STA Armoured Electrical Cable PVC Sheathed Control Cables Application Armored cables designed for permanent installations, suitable for both indoor and outdoor use, whether installed in air or underground.They can be mounted on walls, placed in cable ducts, or laid on cable trays...
Medium Voltage Steel Tape Armored Cable AA-8000 Series Copper Wire Shield
Steel Tape Armoured Electrical Cable AA-8000 Series Copper Wire Shield XLPE/PVC/STA Medium Voltage Application Steel tape armored medium-voltage cables are designed for harsh environments requiring robust mechanical protection. Construction Conductor Conductor Shiel Insulation Metal Shield Layer ...
PVC Insulated AWA Armoured Control Cable 3 Core Electrical Cable Low Voltage
PVC Insulated AWA Armoured Electrical Cable Three Core Control Cable Application PVC-armored control cables are commonly used in environments requiring mechanical protection and resistance to harsh conditions, such as Factories, plants, and automation systems where cables are exposed to abrasion, ...
