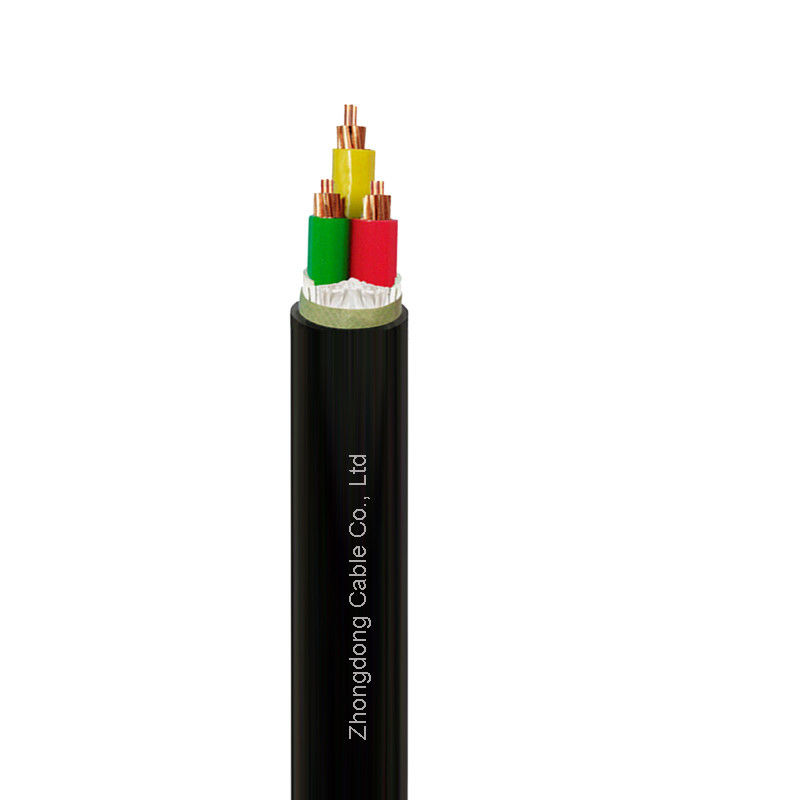

Copper Conductor 3 Core PVC Cable Unarmoured Power Cable For Open Air Installed
| Voltage: | 0.6/ 1kV | Armoring: | No |
| Insulation: | PVC | Core: | 3 Cores |
| Temperature range: | - 30℃ To + 70℃ | Sheathed: | PVC |
| High Light: | Copper Conductor 3 Core PVC Cable,Open Air Installed PVC Cable |
||
Copper Conductor 3 Core PVC Insulated Power Cable for Open Air Installed
Application
The cables for energy supply are installed in open air, underground, indoors, cable ducts, power stations, residental connections and street lighting as well as in subscriber networks, where mechanical damages are not be expected.
Construction
- Conductor: Copper or Aluminium
- Insulation:PVC
- Binder Tape
- sheath:PVC
Specification
|
Nominal section area |
Approx. overall diameter |
Approx. weight of cable |
Maximum DC resistance of the conductor |
||
|
mm2 |
mm |
kg/km |
Ω/km |
||
|
|
|
Cu |
Al |
20℃ Cu |
20℃ Al |
|
3×1.5 RE |
10.6 |
147 |
– |
12.1 |
– |
|
3×2.5 RE |
11.5 |
185.6 |
138.9 |
7.41 |
12.1 |
|
3×4 RE |
13.4 |
258.1 |
183.5 |
4.61 |
7.41 |
|
3×6 RE |
14.5 |
338.2 |
226.3 |
3.08 |
4.61 |
|
3×10 CC |
16.7 |
489 |
302.4 |
1.83 |
3.08 |
|
3×16 CC |
18.9 |
703.1 |
404.6 |
1.15 |
1.91 |
|
3×25 CC |
22.3 |
1012.9 |
546.5 |
0.727 |
1.2 |
|
3×35 CC |
24.5 |
1315.8 |
663 |
0.524 |
0.868 |
|
3×50 SM |
23.9 |
1734.6 |
801.9 |
0.387 |
0.641 |
|
3×70 SM |
27.1 |
2337.7 |
1031.9 |
0.268 |
0.443 |
|
3×95 SM |
31 |
3130.7 |
1358.6 |
0.193 |
0.32 |
|
3×120 SM |
34.3 |
3878.7 |
1640.3 |
0.153 |
0.253 |
|
3×150 SM |
38.6 |
4827.9 |
2029.9 |
0.124 |
0.206 |
|
3×185 SM |
42.7 |
5929.1 |
2478.1 |
0.0991 |
0.164 |
|
3×240 SM |
48 |
7621.4 |
3144.5 |
0.0754 |
0.125 |
|
3×300 SM |
53.2 |
9463.7 |
3867.6 |
0.0601 |
0.1 |
